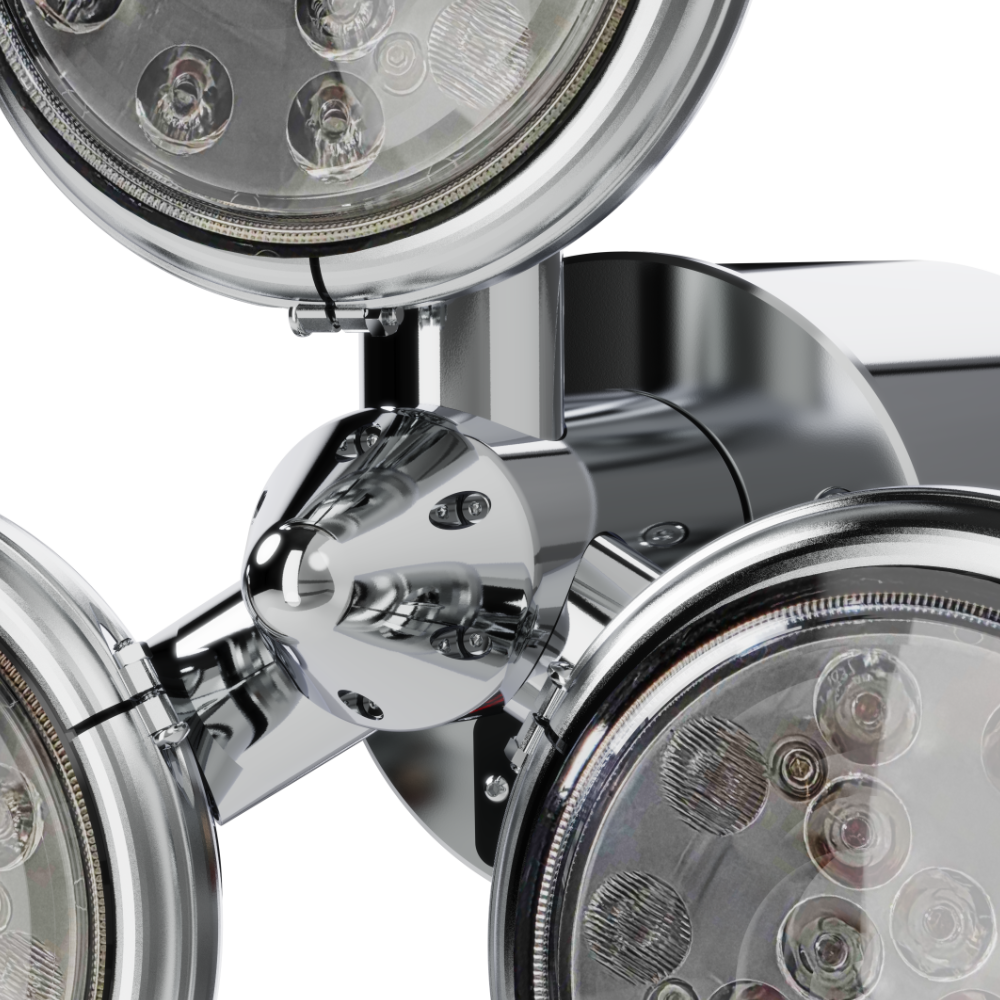

Whirl-E-Bird™ Surface Mount — modern rotating emergency warning light. Direct bolt-on replacement for classic spinning lights (same bolt pattern and wiring as legacy units since the late 1970s).

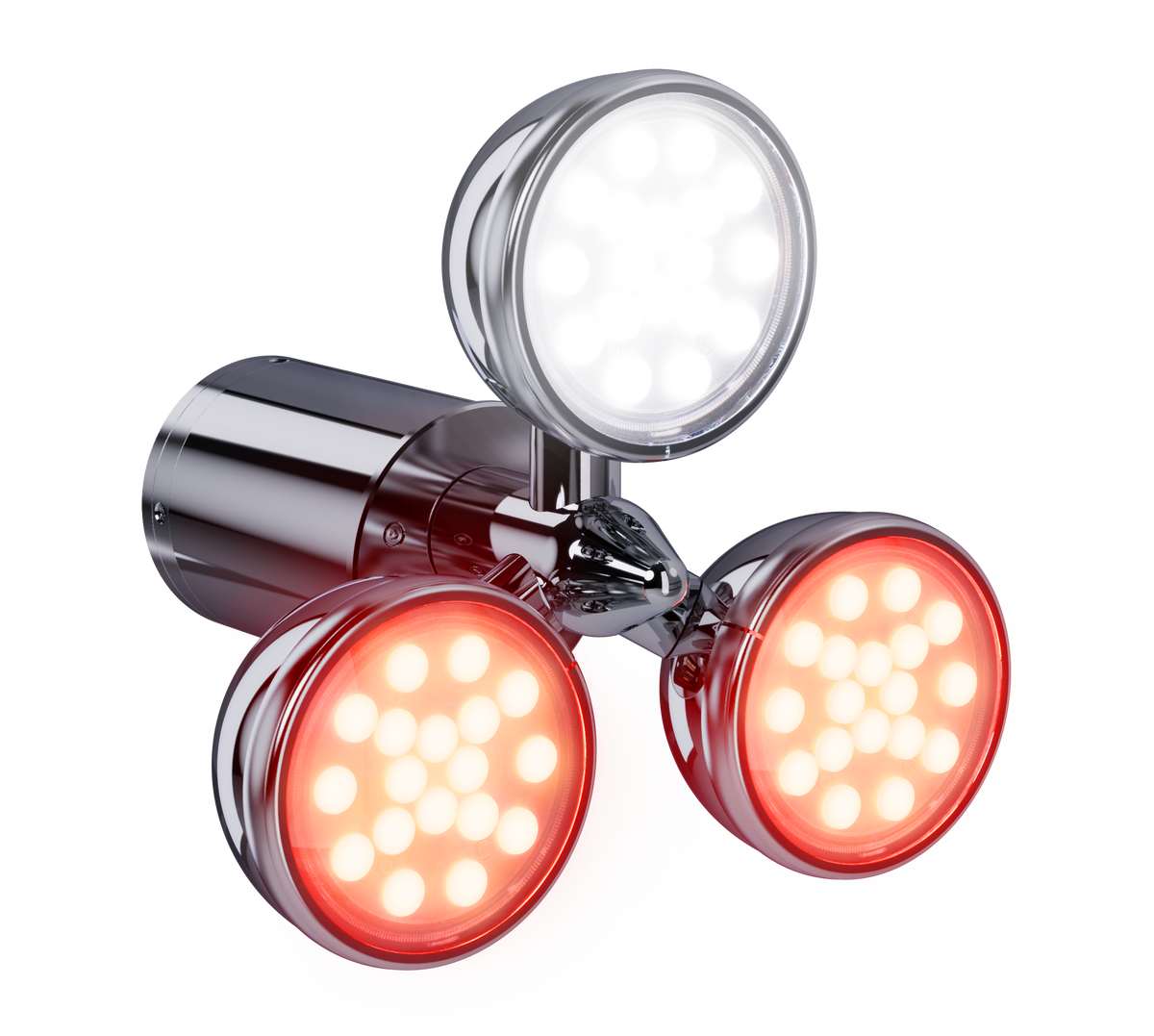

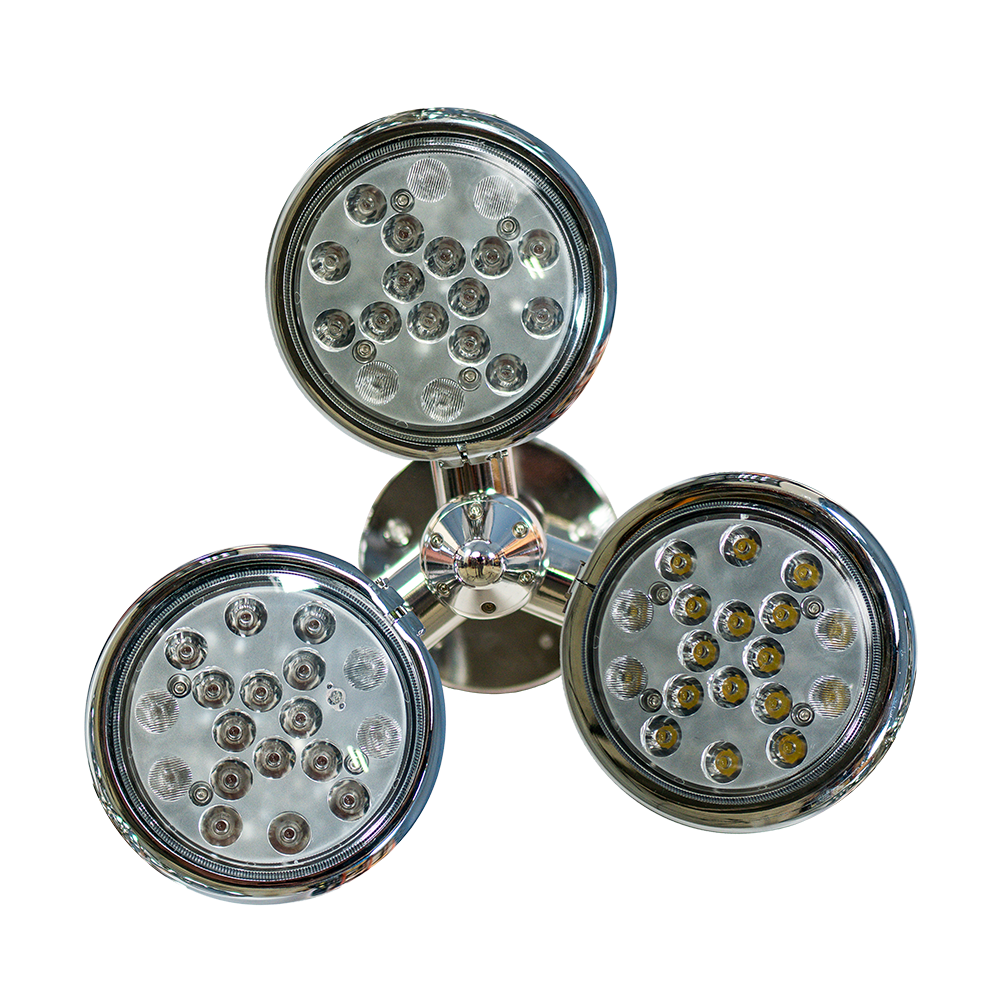

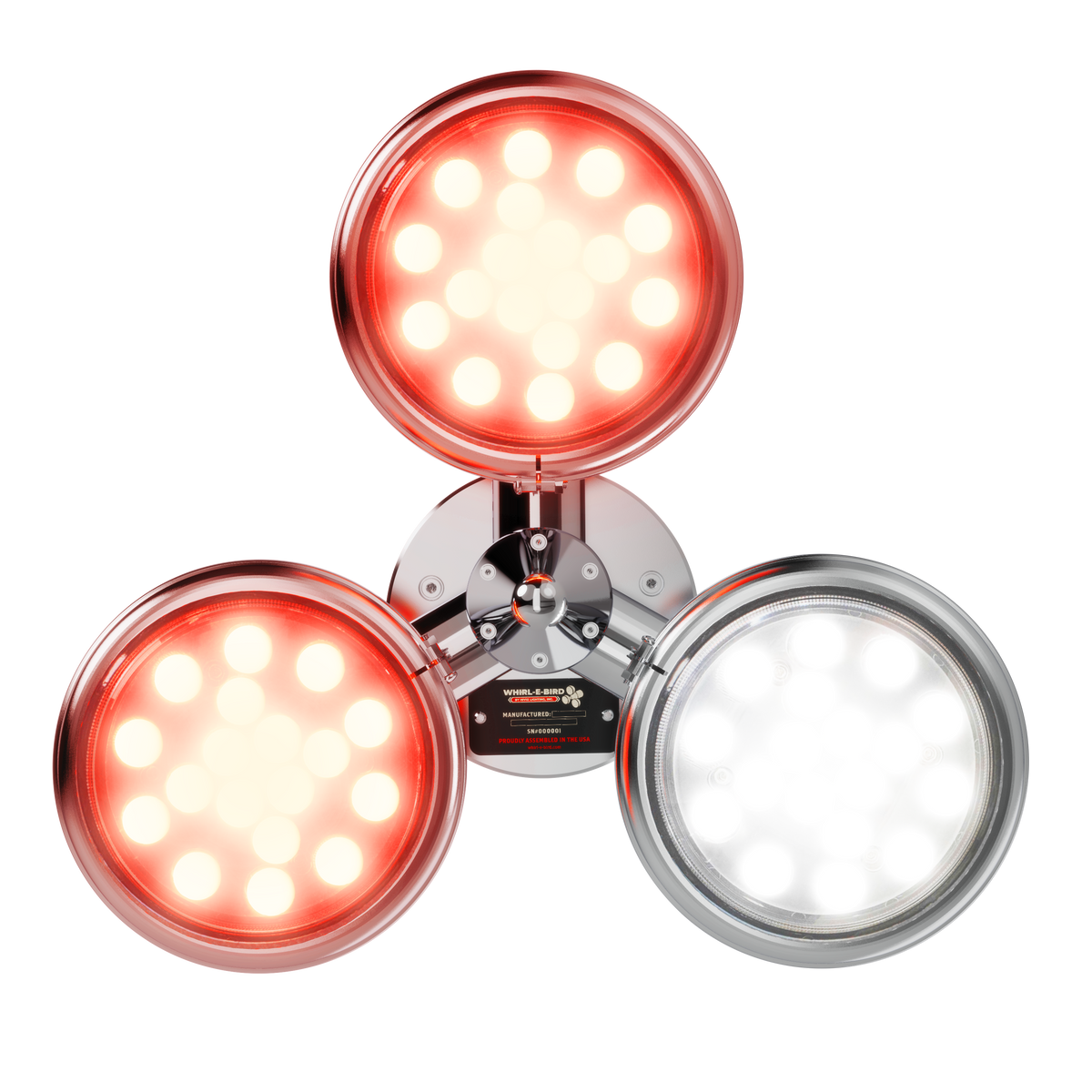

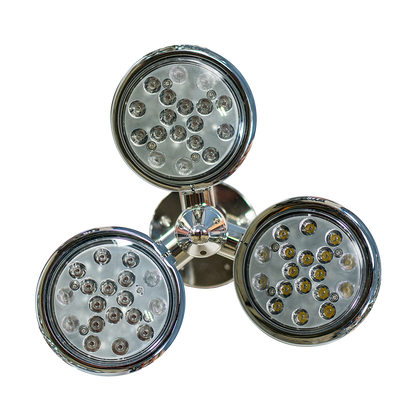

LEDs: Standard Red/Red/White (two red, one white)
Motor: BLDC motor

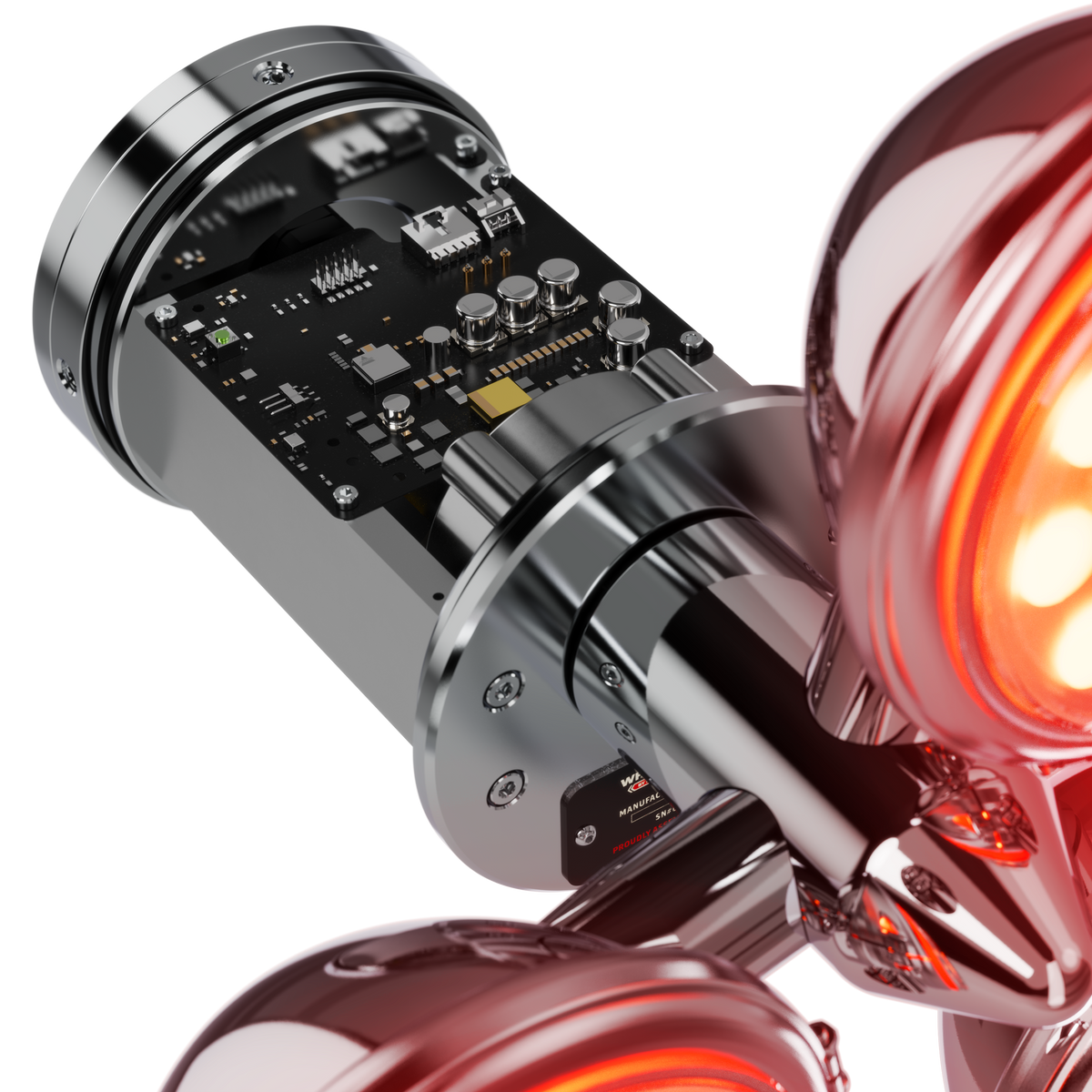

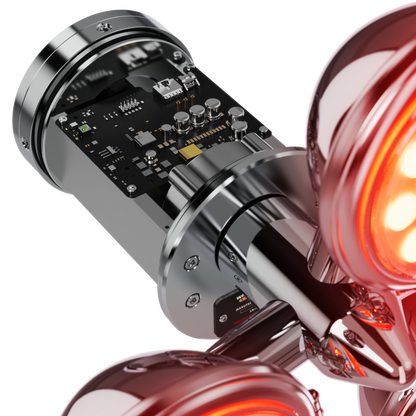

Circuits: Separate light and motor circuits

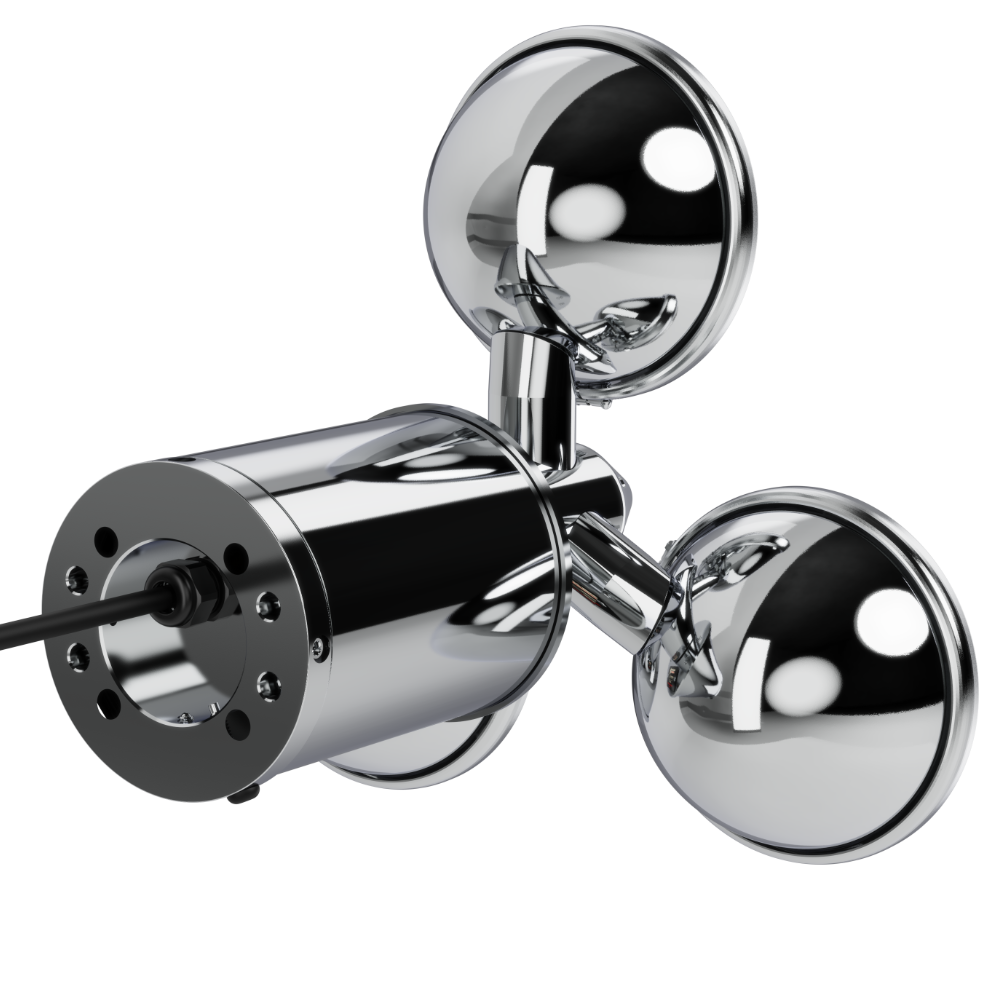

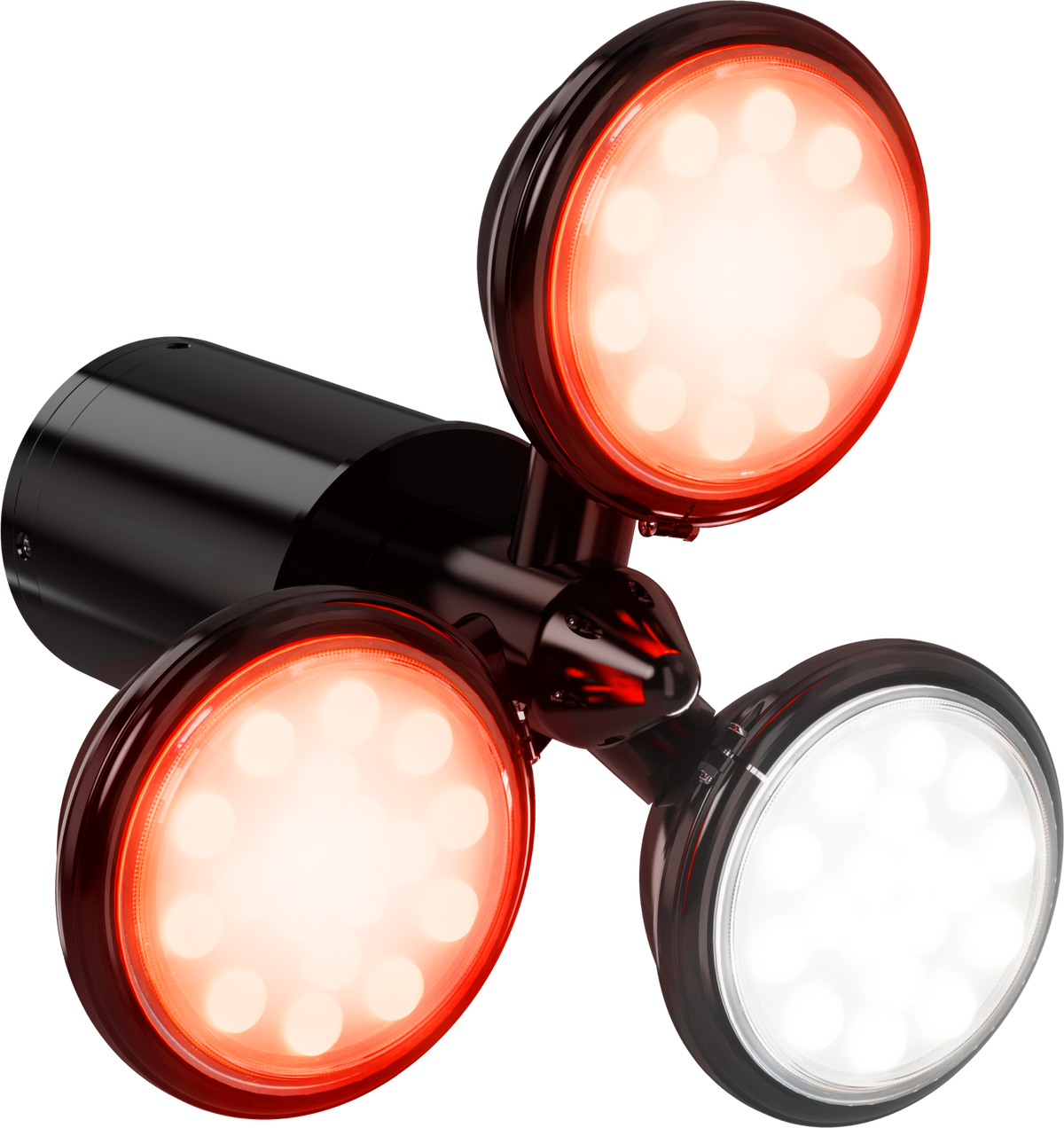

Housing: Chrome surface (includes Surface Mount Plate) and Black surface. HV-WEB-RFSM-RRW-B is the black surface model at MAP $3769. It is not recessed-only. Black surface is on this PDP, available=false, not yet shippable — do not substitute another color.
Install: Sealed design — no disassembly; attach plate or mount directly, connect wiring, snug set screws
Technical
Overall Height: 16.3"
Overall Width: 16.3"
Overall Depth / Length: 12.7"
Weight: 17.3 pounds
Operating Voltage: 12 VDC
Max Amp Draw: 6A (motor only, measured at 12.8 VDC during startup or high-load conditions)
Lights Maximum: 3.5A (white LEDs) or 2.75A (red LEDs)
Absolute Highest Possible Draw: ~9.5A total (momentary, when white lights are on and motor hits peak simultaneously)
Averages 90W (~7.5A at 12V) during normal rotation
Recommended fusing: 10A for motor circuit, 5A for lights (or a single 25A unified fuse if wired that way)
Additional mounts (pedestal, 15° wedge) under Whirl-E-Bird Mounting Accessories. Replacement PAR-46 heads sold separately.
Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
