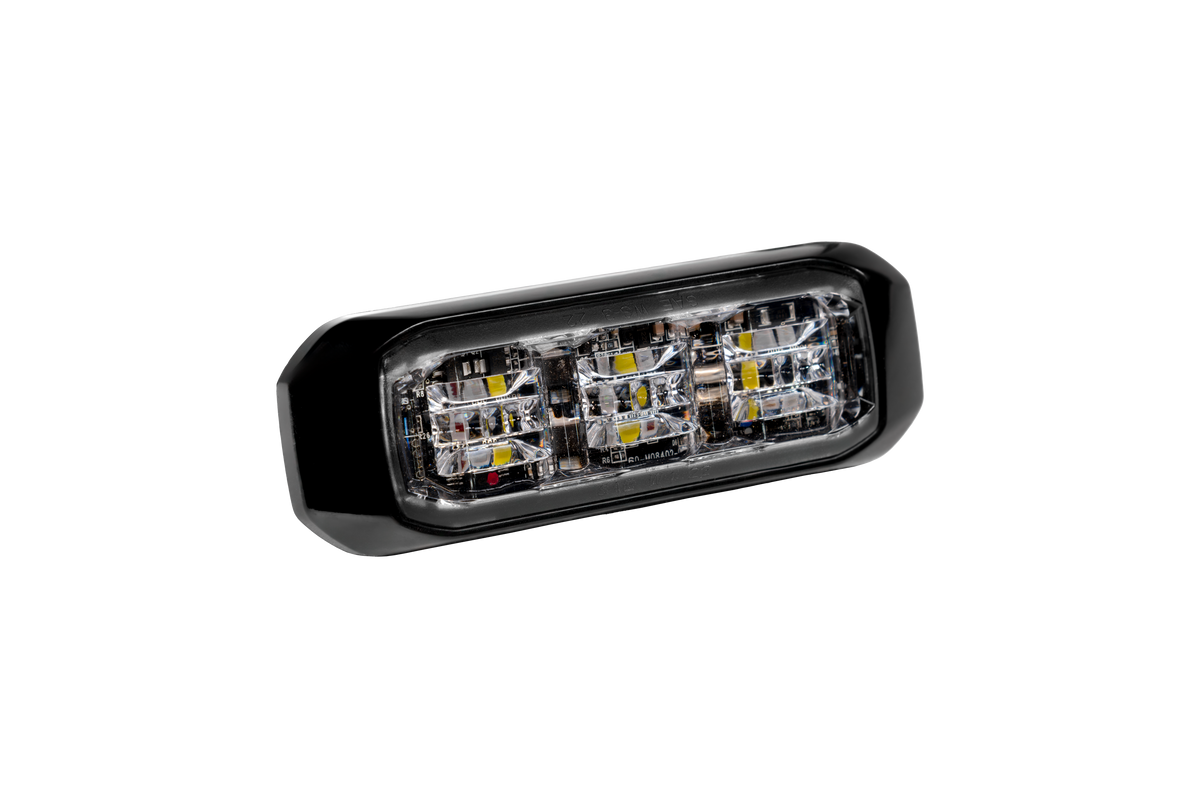

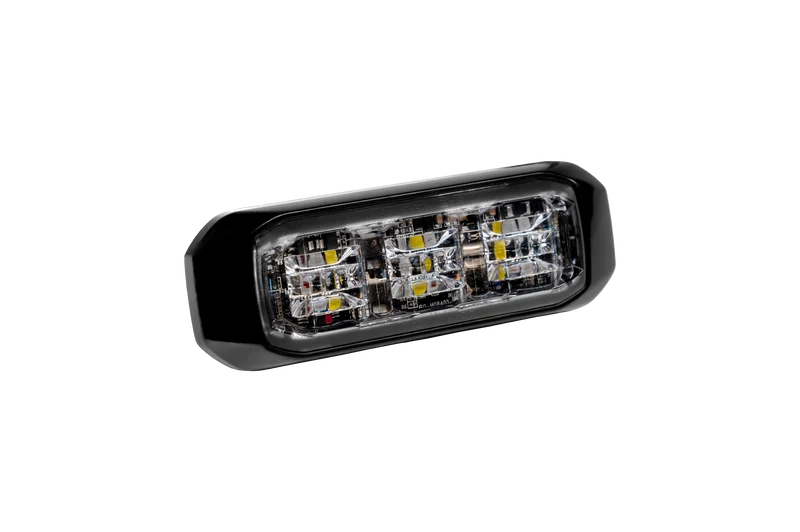

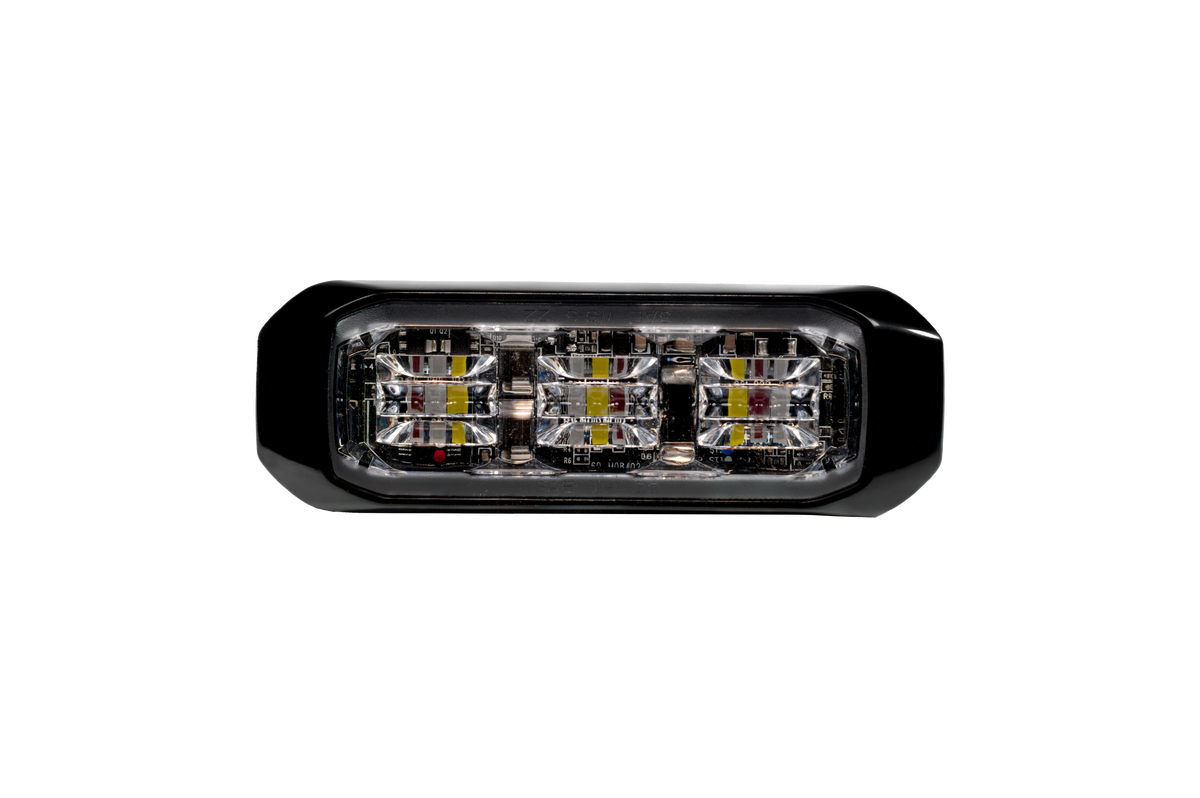

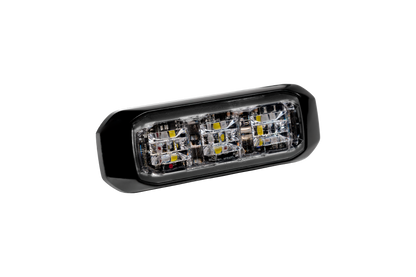

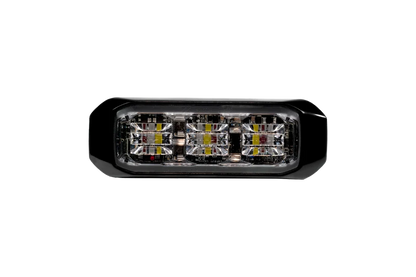

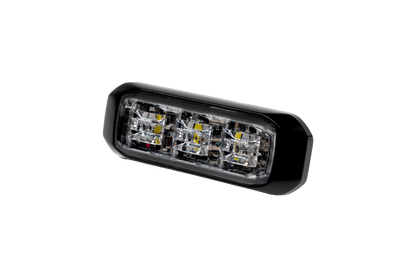

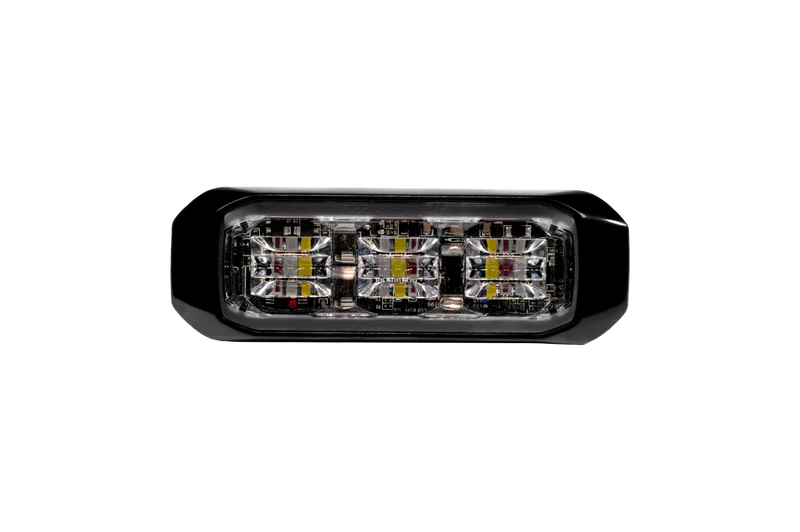

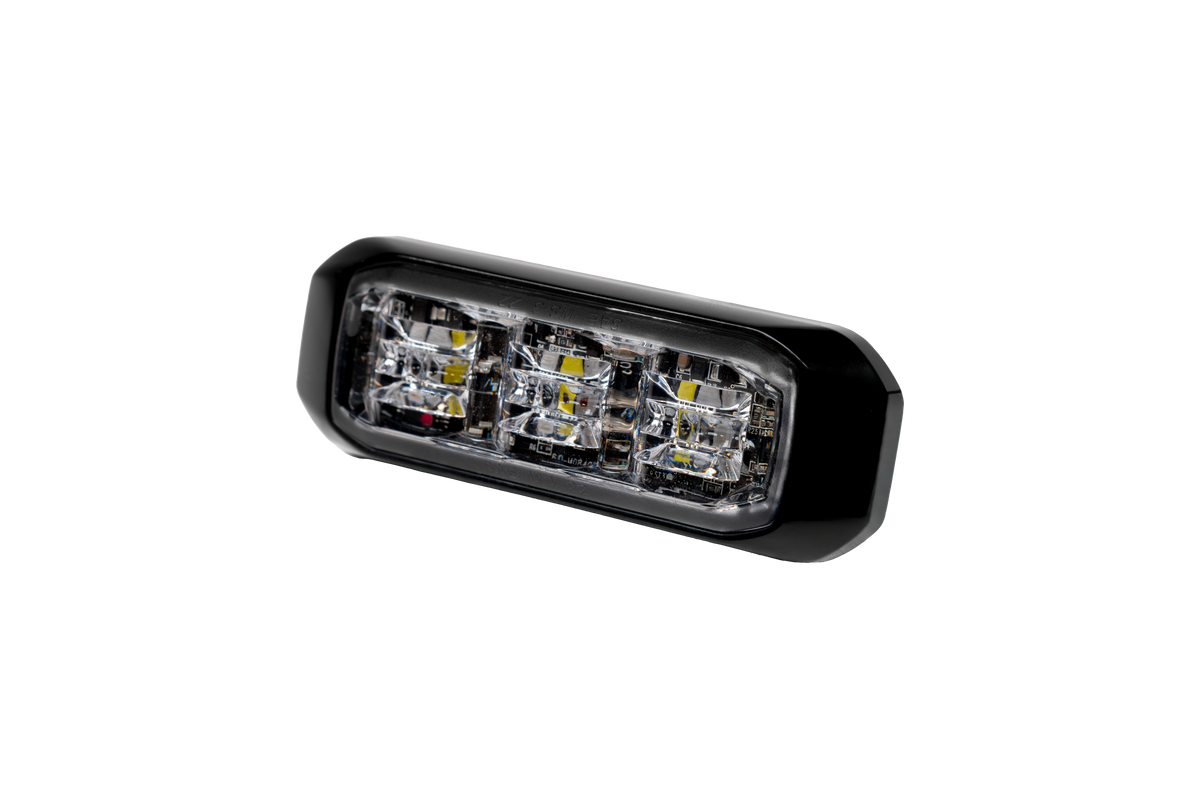

Redline Surge Mini — compact warning light module with 9 LEDs for tight-space perimeter warning.
On Mini, the green wire is Warning Mode 3 for both dual-color and tri-color. Mini tri-color factory default is Color 3 with FP#18 Steady Scene. Mini dual-color default is Color 1 alt. 2. Full-size Surge dual-color (not Mini) is the one with no green Mode 3 (RED+WHITE).
LEDs: 9 dual/tri-color — Amber/White, Red/Blue/Amber, or Red/Blue/White
Dimensions: 3.42" × 1.16" × 0.45"
Power: 12V DC | Max 0.78A @12V | Peak 9.36W | Fuse 1A
Certifications: SAE J595 Class 1, SAE J845 Class 1, CA Title 13, CISPR 25 Class 3, ECE R10
Mount: Surface — Mini bail bracket, L bracket, license plate bracket, chrome bezel under Surge Mounting Accessories
