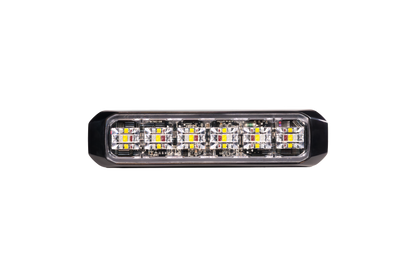

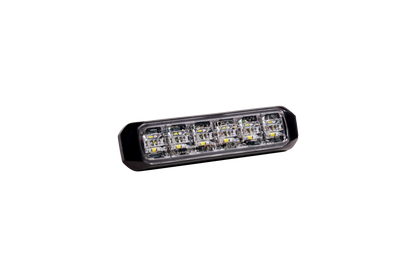

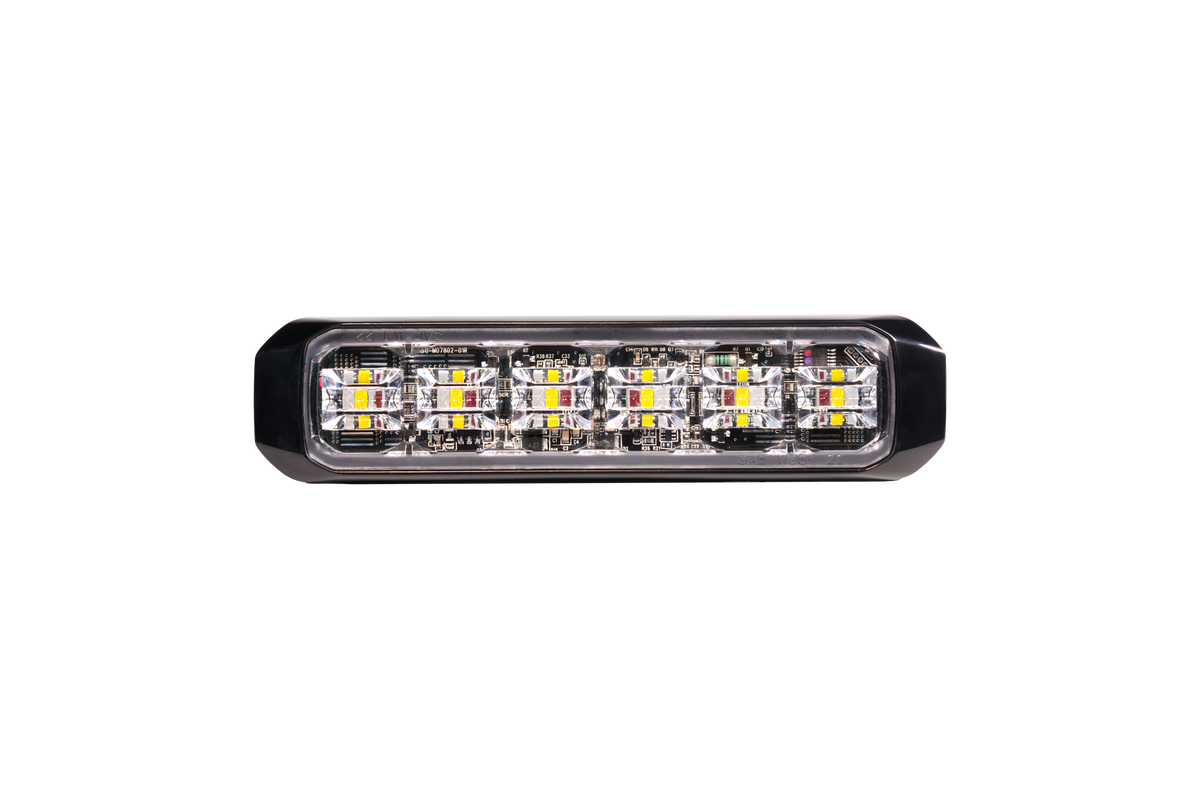

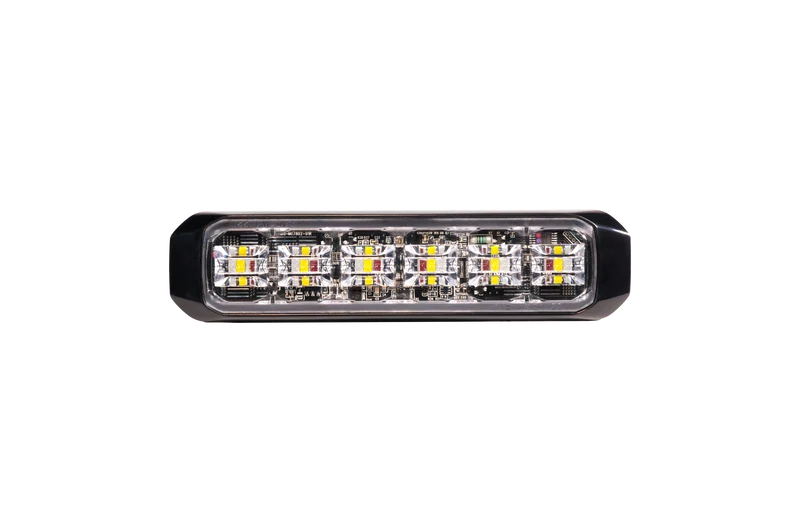

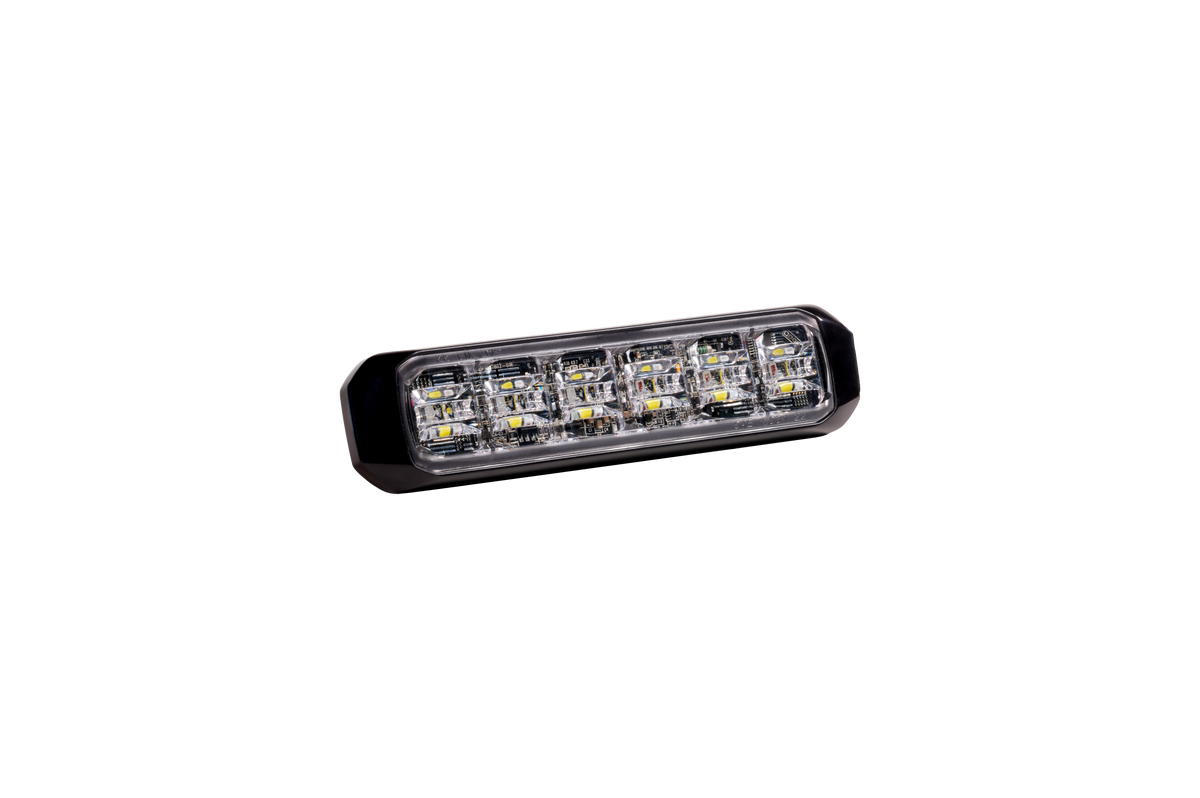

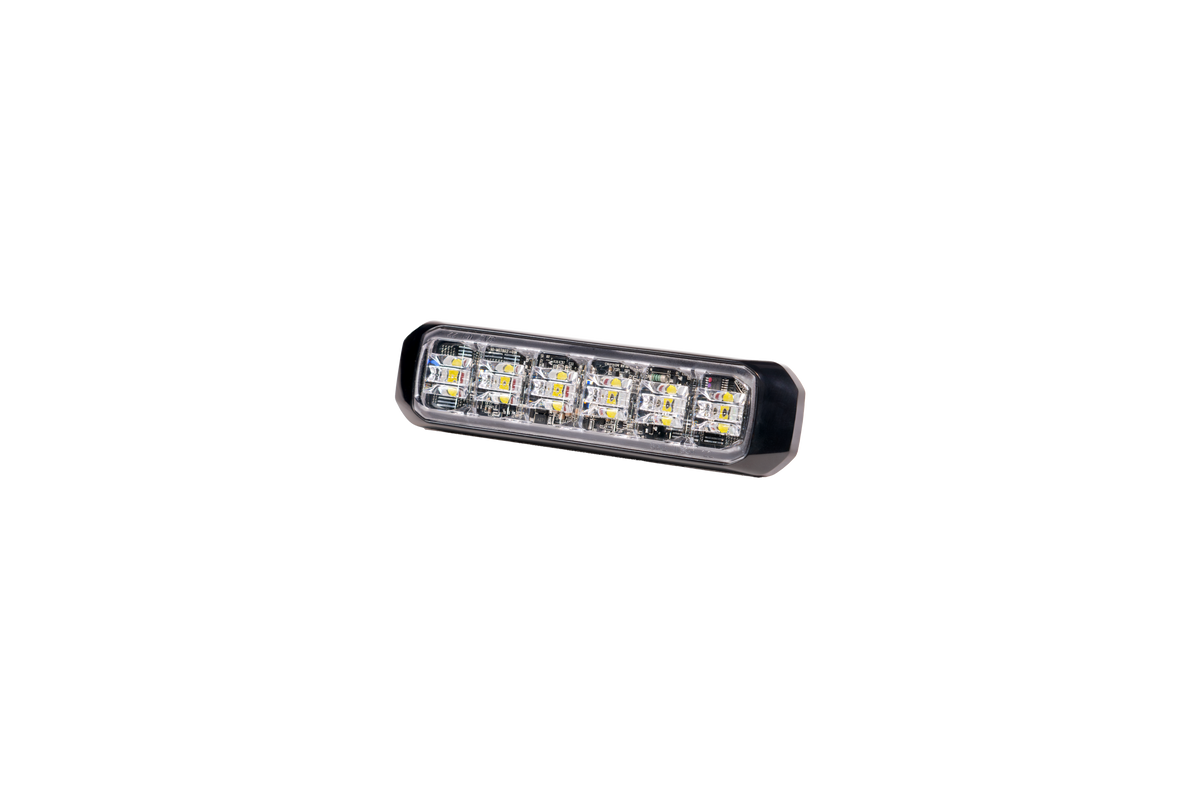

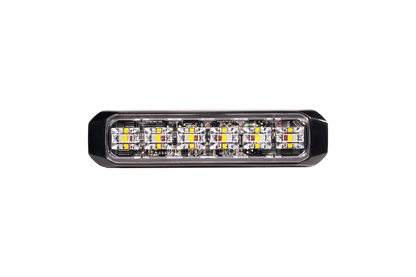

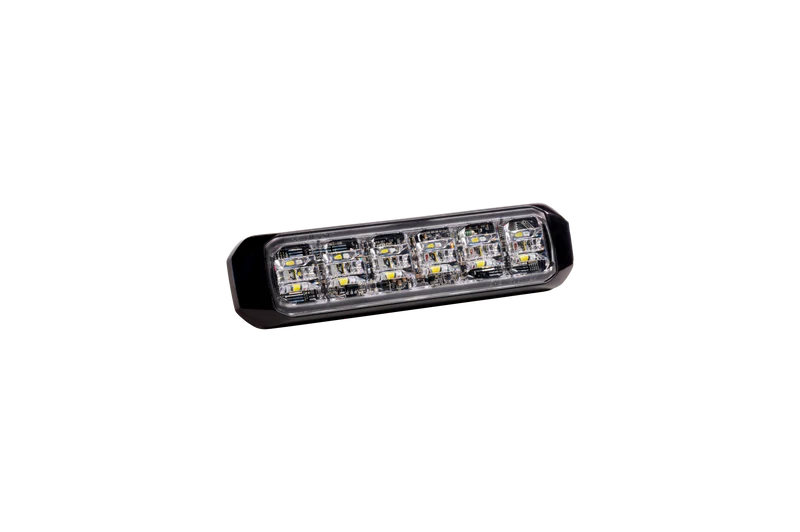

Redline Surge — compact surface-mount warning module with 18 tri-color LEDs, clear lens, and black bezel.
On tri-color Surge, Mini, and Max, the green wire is Warning Mode 3. Factory default is Color 3 with FP#18 Steady Scene. Dual-color has no green Mode 3 (Mode 3 is RED+WHITE).
LEDs: 18 tri-color — Amber/White, Red/Blue/Amber, or Red/Blue/White
Dimensions: 5.22" × 1.25" × 0.46"
Power: 12V DC | Max 1.04A @12V | Peak 12.48W | Fuse 2A
Certifications: SAE J595 Class 1, SAE J845 Class 1, CA Title 13, ECE R10, ECE R65, CISPR 25 Class 3, IPX7
Mount: Surface — bail bracket, L bracket, license plate bracket, 3M tape, chrome bezel, covert tint sold separately under Surge Mounting Accessories
Wiring: 5-wire (3 modes, 8 phases)
5-year warranty
Related: Surge Max has a published instruction manual; Surge family mounting accessories are listed under Redline Surge Family Mounting Accessories.
