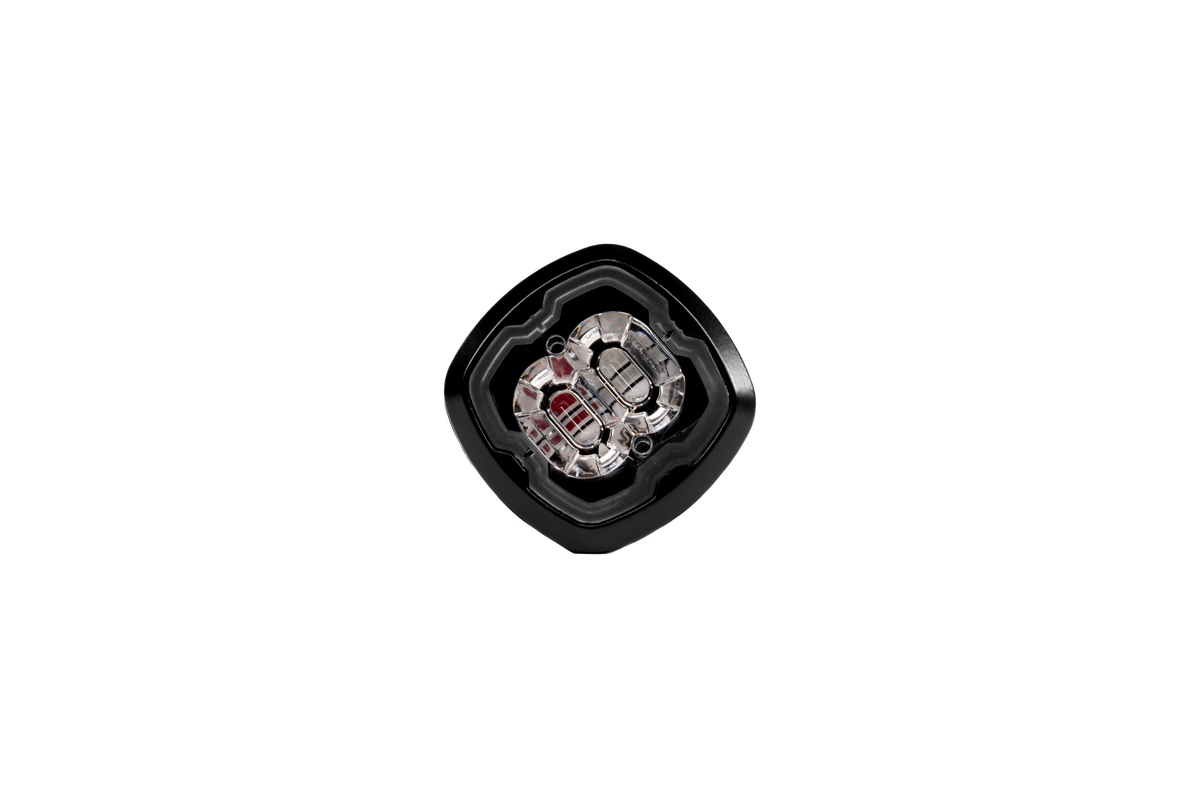

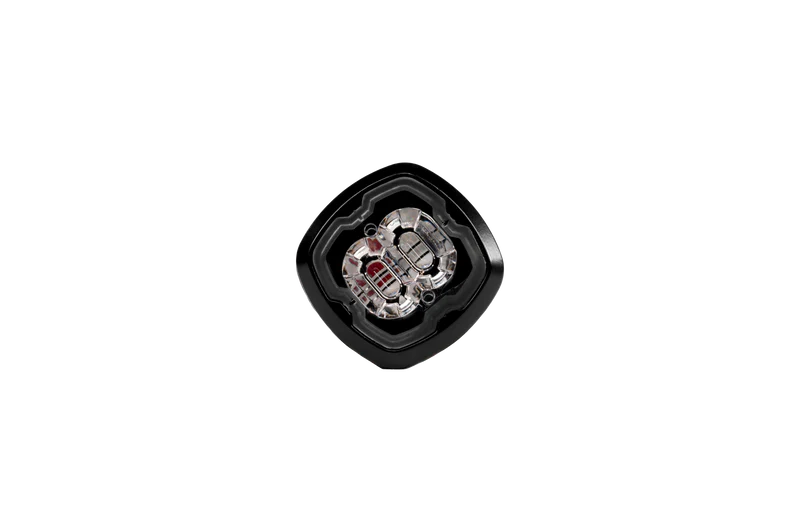

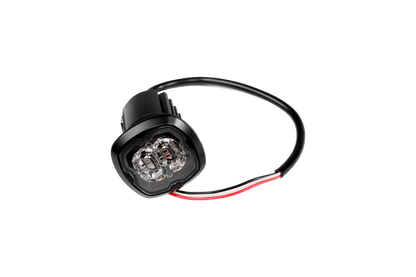

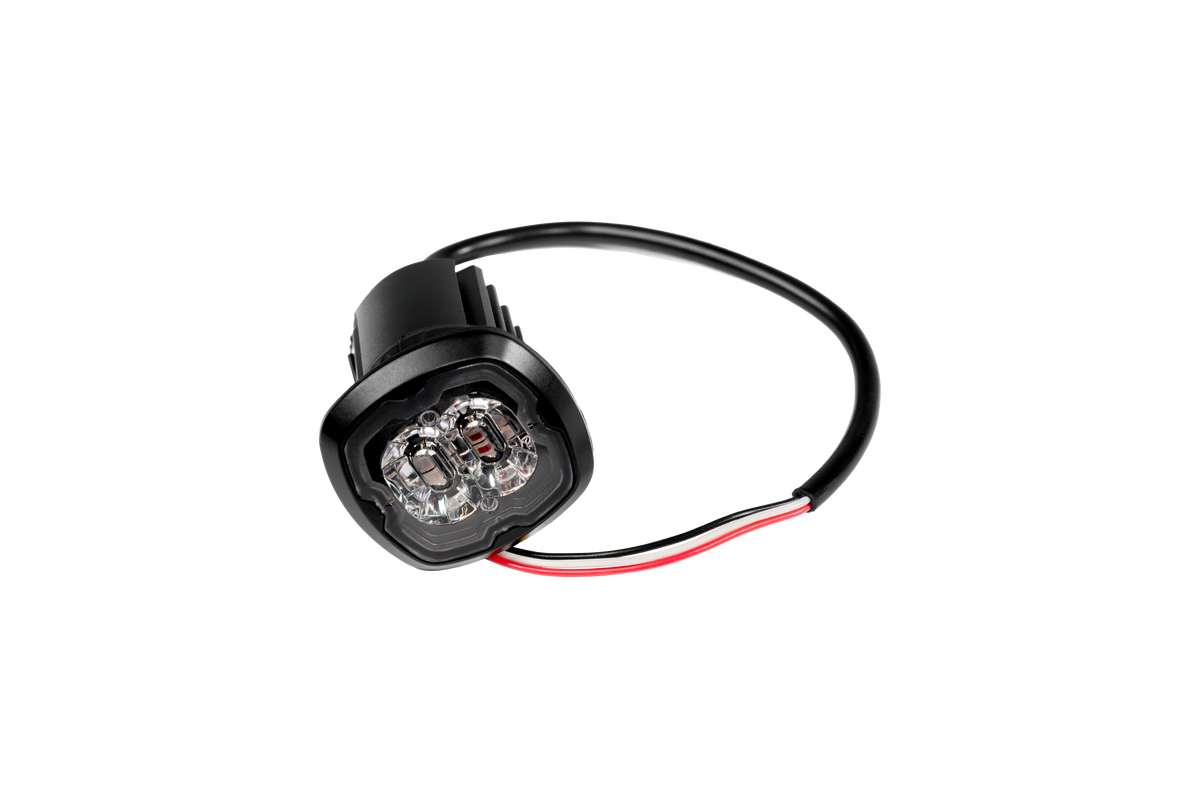

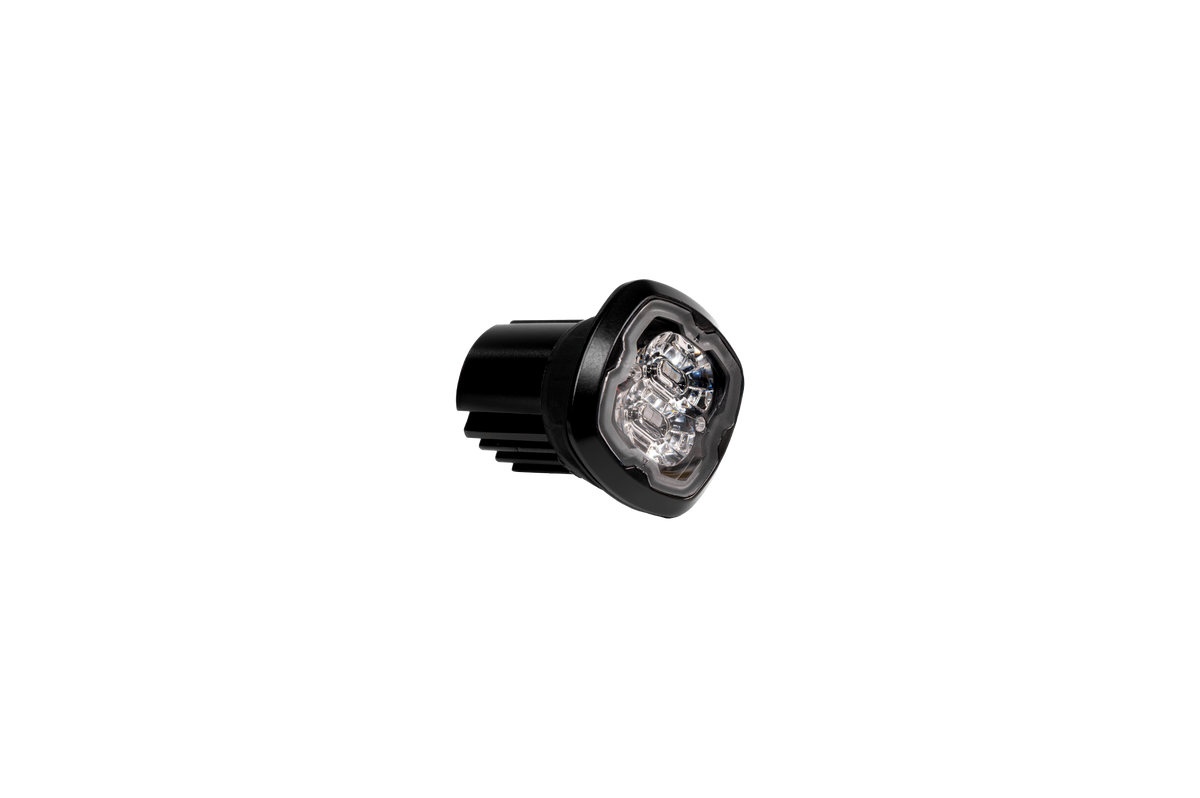

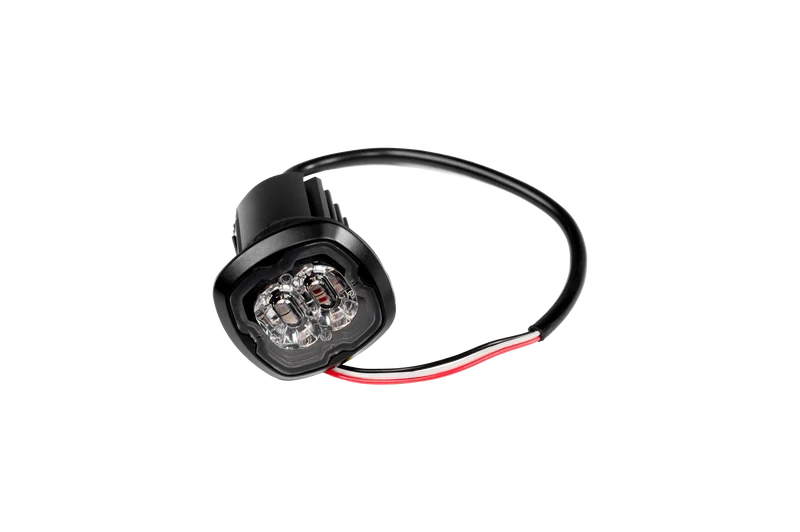

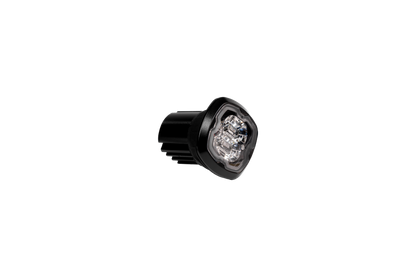

Redline Spark Grommet Mount Light Head

Redline Spark — dual-color grommet-mount light head. Sits flush; 29mm mounting hole required.

• Dimensions: 1.44" × 1.44" × 1.54"
• Power: 12–24V DC | Max 0.7A @12V | Peak 8.4W | Fuse 1A
• Colors: Amber/White, Blue/White, Red/Blue, Red/White
• Modes: 3 warning modes, 28 flash patterns
• Mount: Snap-on grommet (flush mount)
• Certifications: ECE R65, ECE R10, SAE J595 Class 1, CISPR 25, CA Title 13
• 5-year warranty

Instructions: Spark Instruction Manual (PDF)

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
