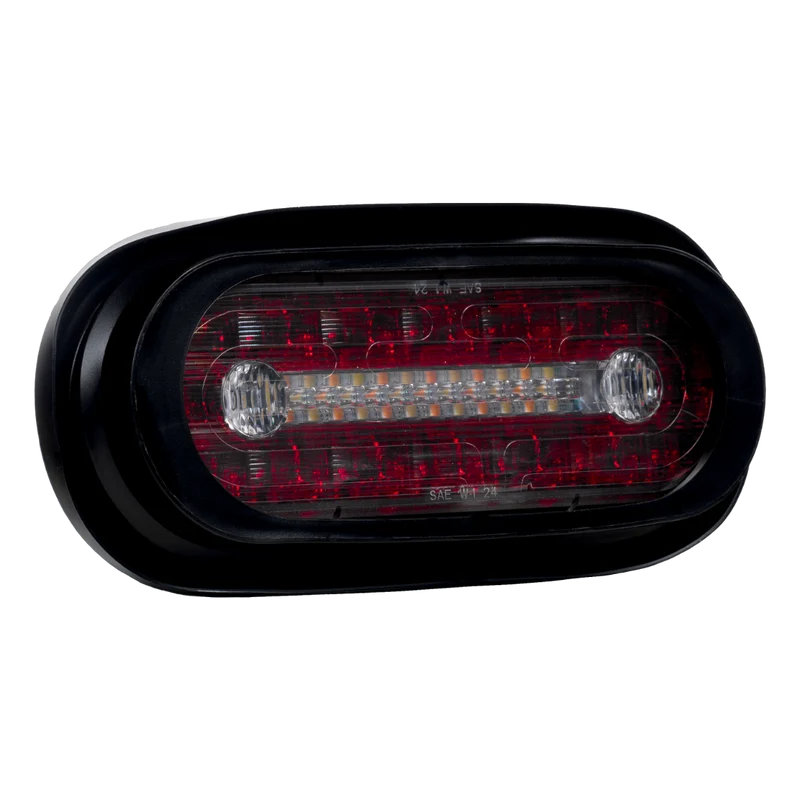

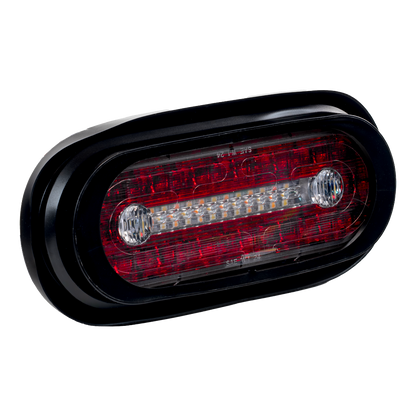

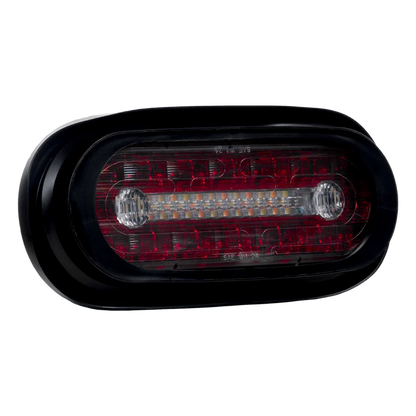

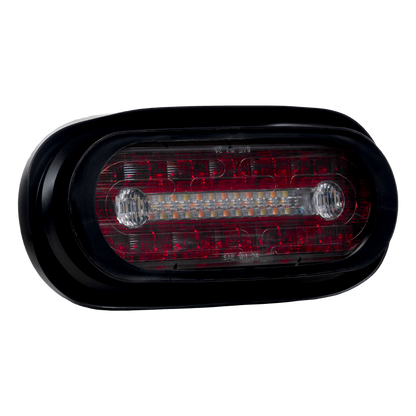

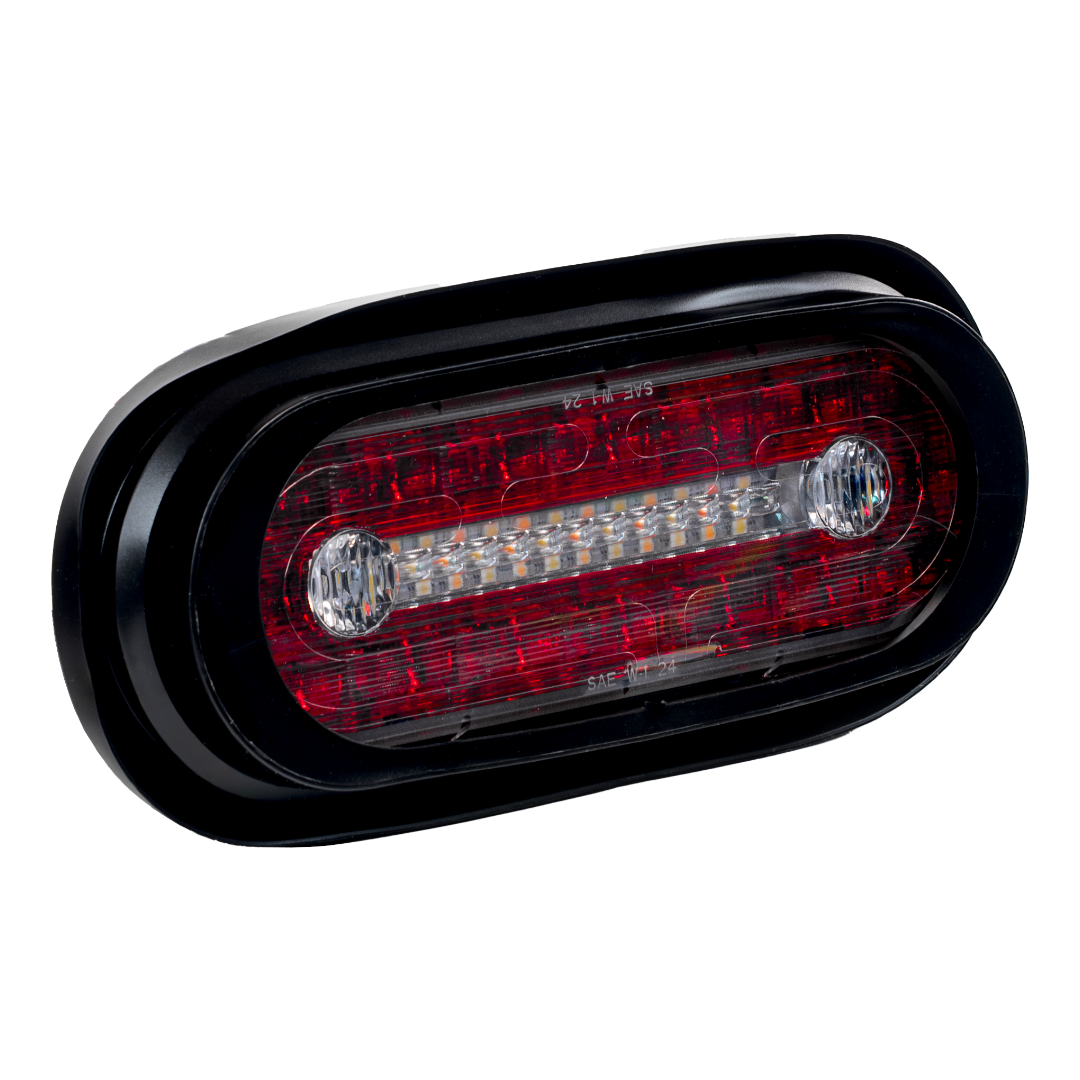

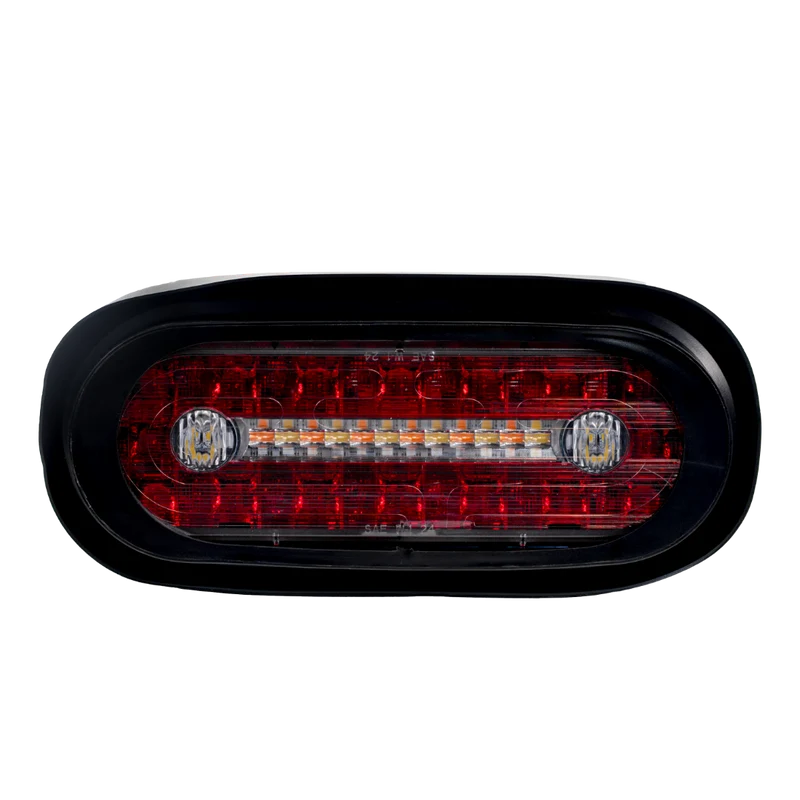

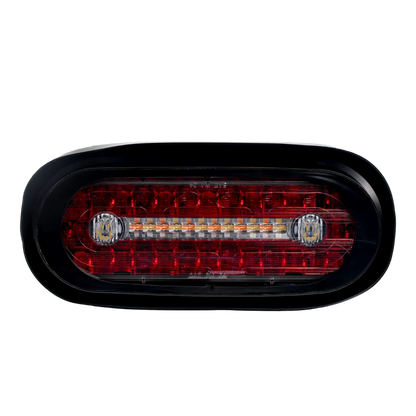

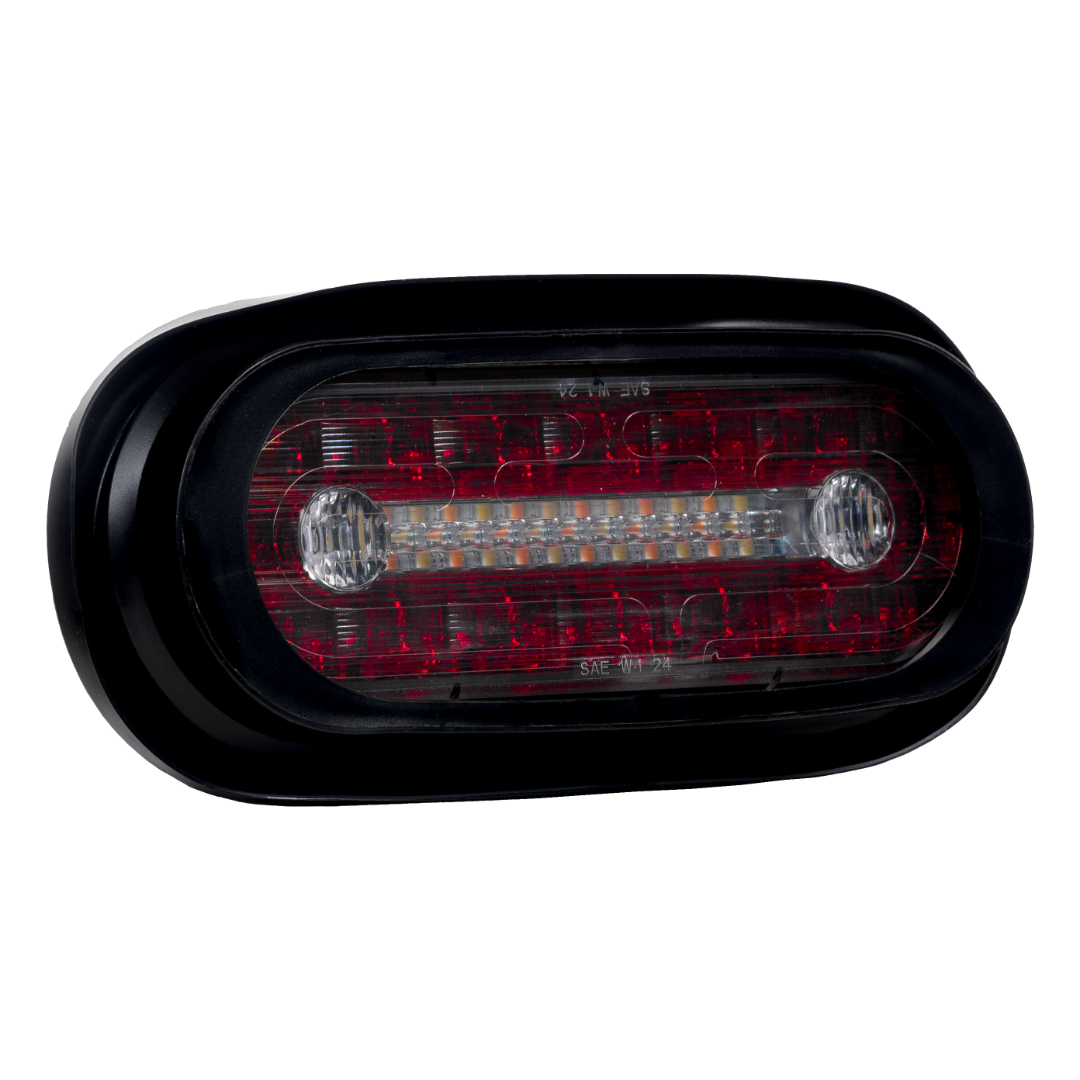

Redline Scorch 6" Oval DOT STT Light

Redline Scorch — DOT-certified 6" oval stop/tail/turn light with Amber/White warning module and heated lens.

• Dimensions: 7.56" × 3.33" × 1.14"
• Power: 12–24V DC | Max 3.34A @12V | Peak 40W | Fuse 4A
• Functions: Stop/Tail/Turn + Amber/White warning; heated lens for ice prevention
• Mount: Recessed
• Certifications: SAE J595/J845 Class 1, FMVSS 108 (STT/Reverse), CA Title 13, CISPR 25, IP67
• 5-year warranty

Instructions: Scorch Instruction Manual (PDF)

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
