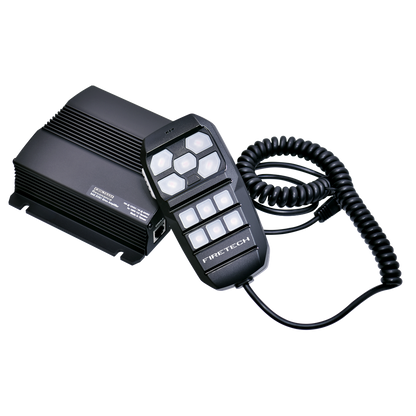

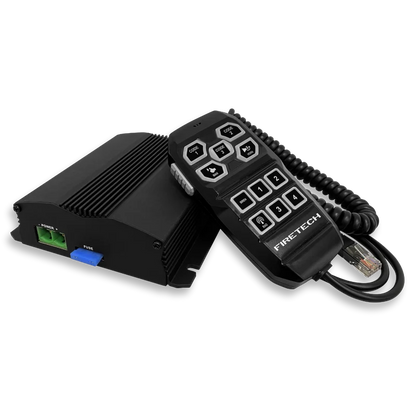

Redline Resonance 100W Handheld Siren & PA

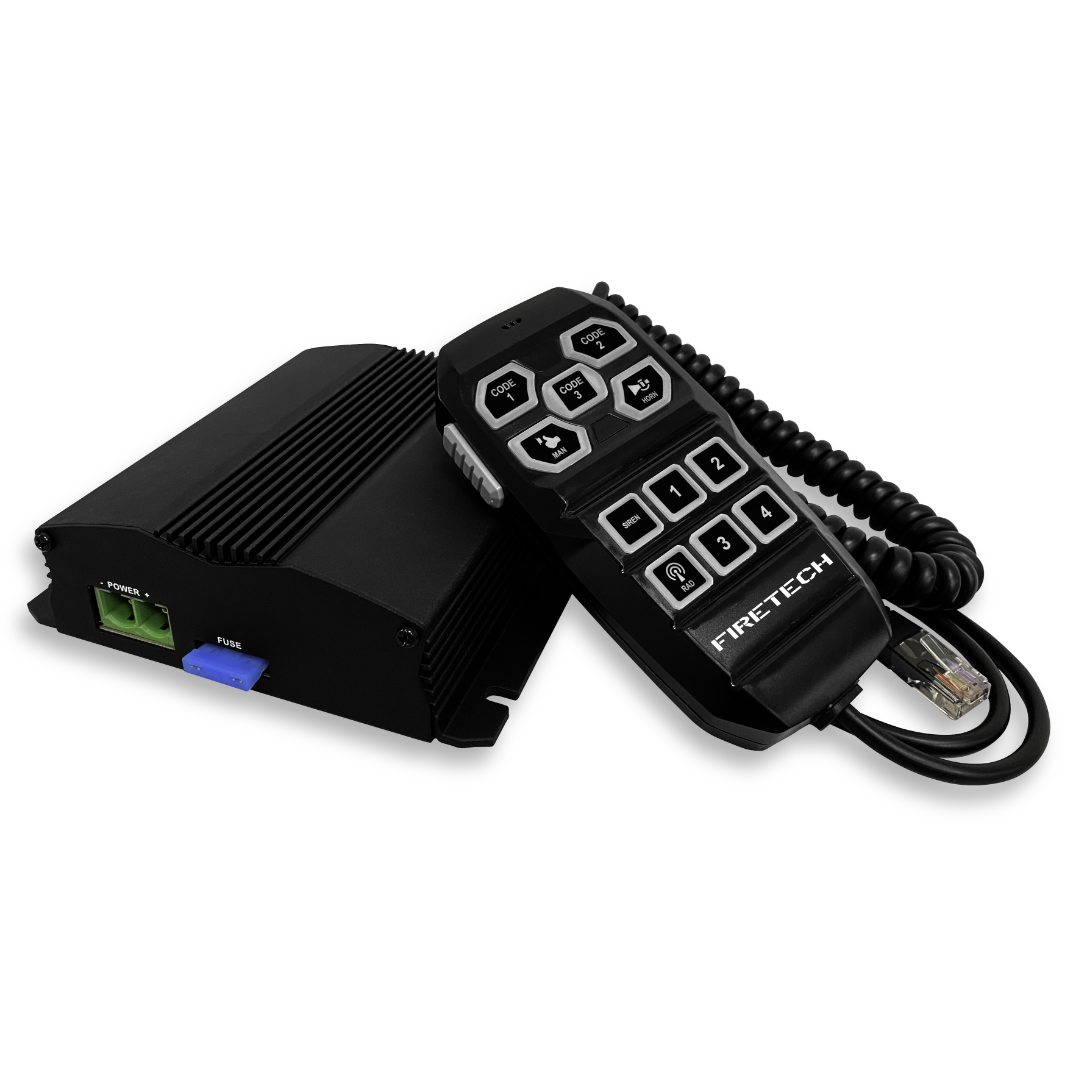

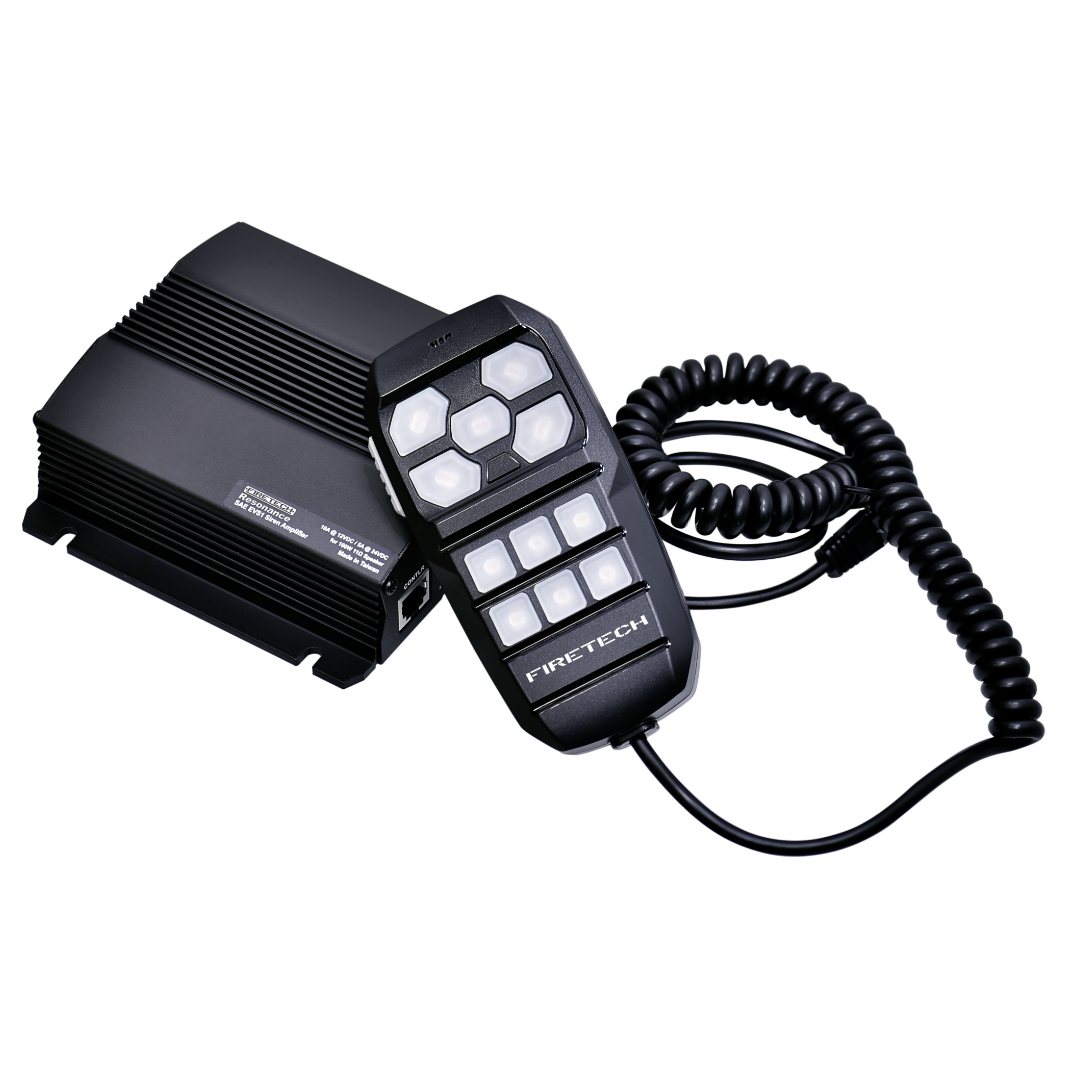

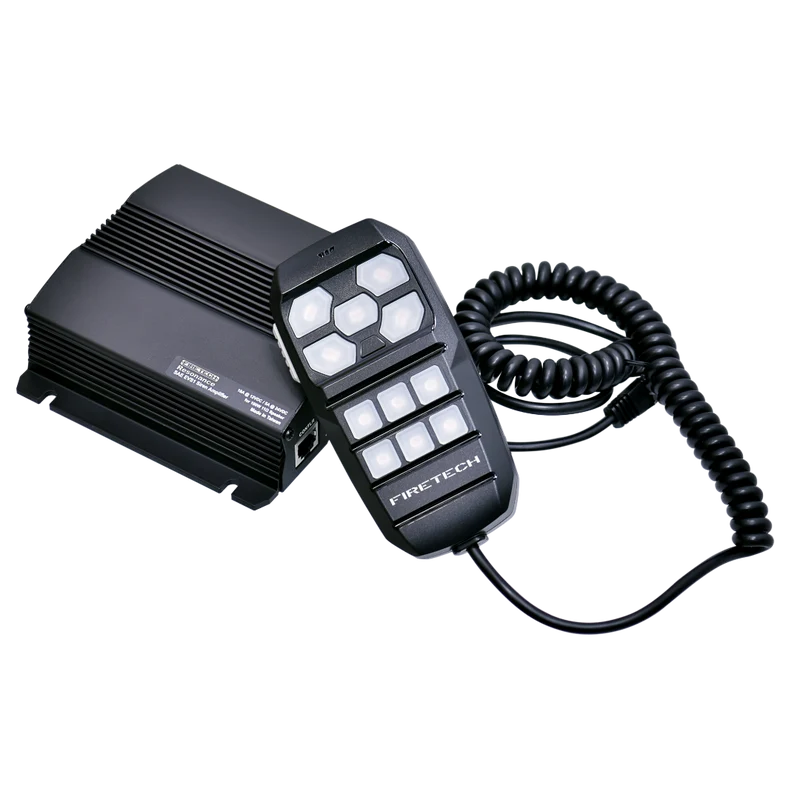

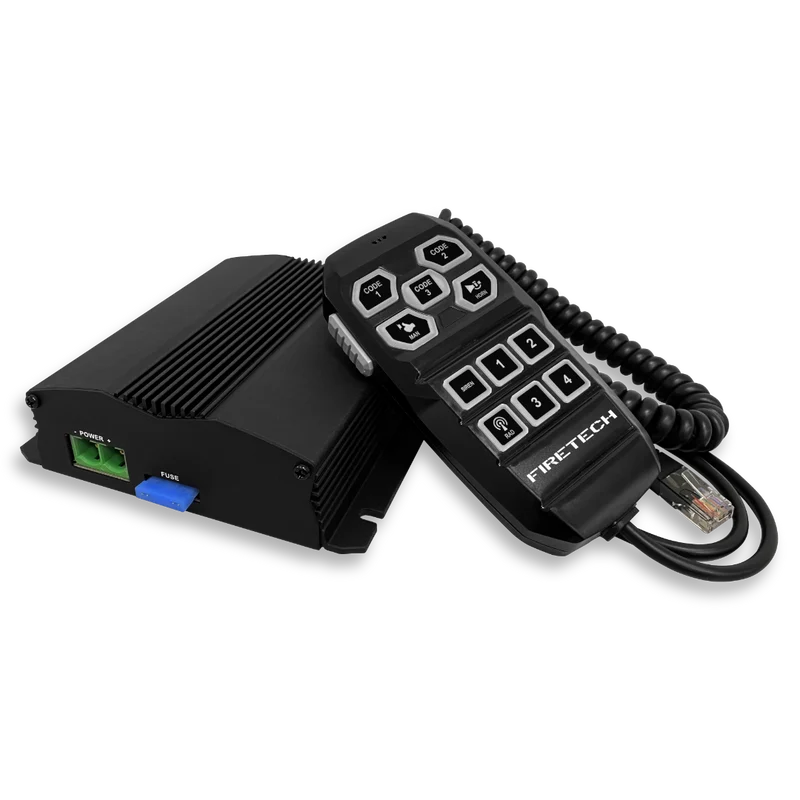

Redline Resonance — siren amplifier with handheld controller, integrated PA, and magnetic mic mount. Official kit is the siren amplifier plus controller. One 100W 11-ohm speaker (not two).

Official light controls: 4× 5A light-control outputs (SW1–SW4). Each output is Load 5 Amps Max. Connect to auxiliary device power up to 5 Amps max, or use as a Lightbar function activation switch. SW1 may be used for the primary warning light.

Official tones include WAIL, YELP, PHASER, and HILO.

• Siren: 100W | one 100W 11-ohm speaker
• Light controls: 4× 5A light-control outputs
• Max current: 10A @12VDC / 5A @24VDC without light-control outputs; 30A @12VDC / 25A @24VDC with 4× light-control outputs
• Fuses: built-in 5A blade fuse on each of the 4 outputs (under chassis); 15A blade fuse for the amplifier; 35A user-supplied main @12–24VDC
• Dimensions: 5.36" × 4.98" × 4.47"
• Power: 12–24V DC | Mount: Mic clip
• Certifications: SAE J845 Class 1, ECE R10, ECE R65
• 2-year warranty

Instructions: Resonance Instruction Manual (PDF)

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
