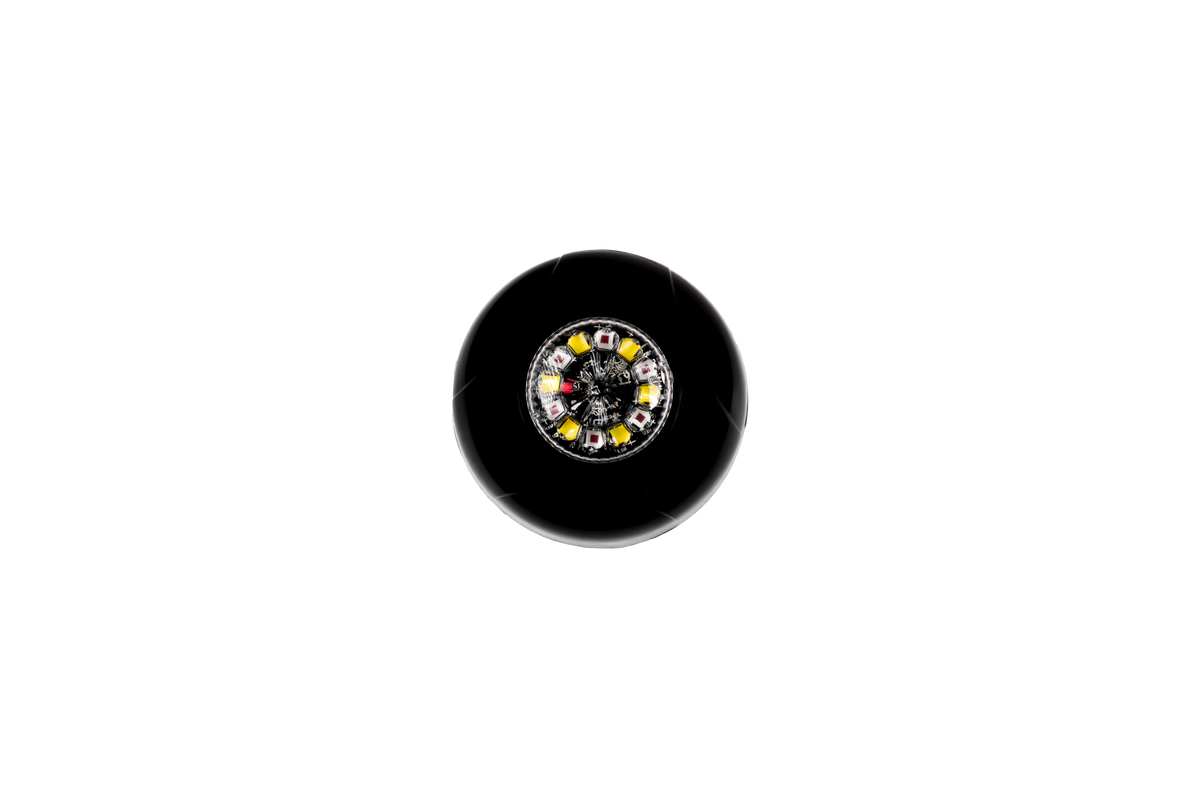

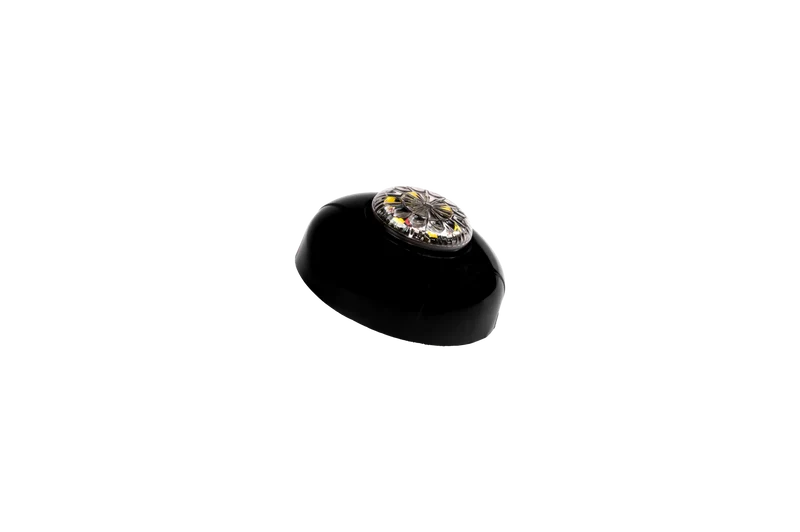

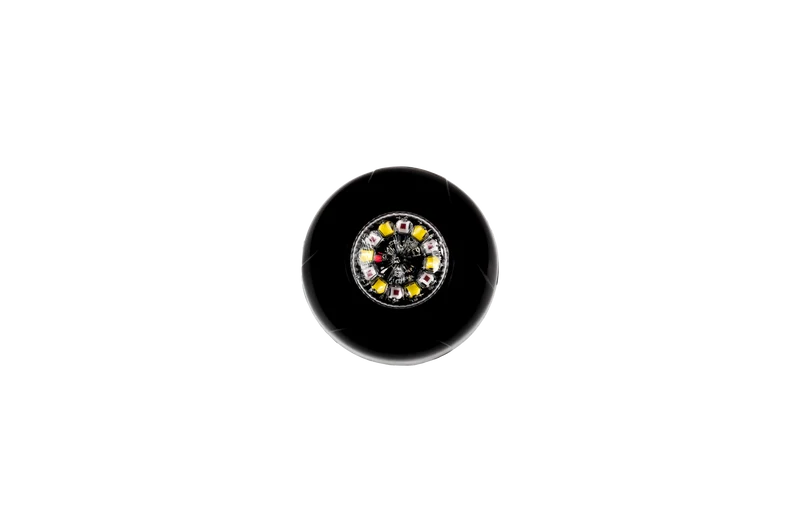

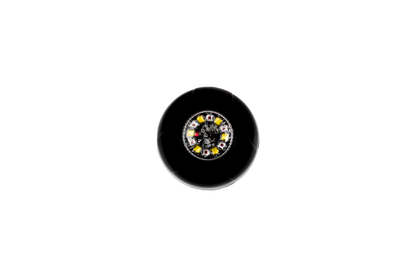

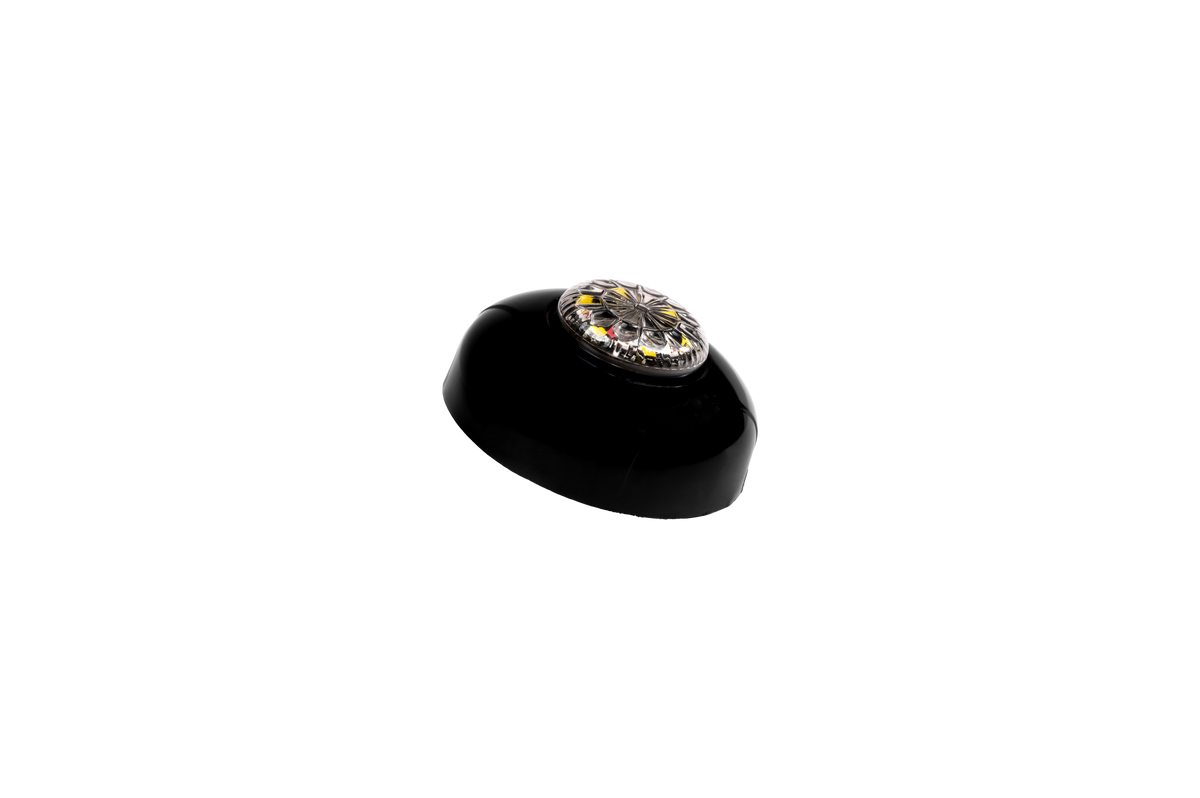

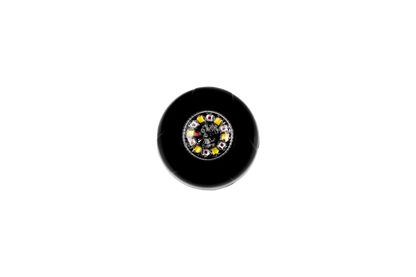

Redline Pulse Hide-A-Way Warning Light

Redline Pulse — dual-color hide-a-way warning light for grille, bumper, or body-panel installs. Surface or hole mount.

• LEDs: 12 dual-color — Amber/White, Blue/White, Red/Blue, or Red/White
• Dimensions: 1.95" × 1.95" × 0.9"
• Power: 12V DC | Max 0.8A @12V | Peak 9.6W | Fuse 2A
• Modes: 2 warning modes, 21 flash patterns; surface mount flange included
• Certifications: ECE R10, IPX7
• 5-year warranty

Instructions: Pulse Instruction Manual (PDF)

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
