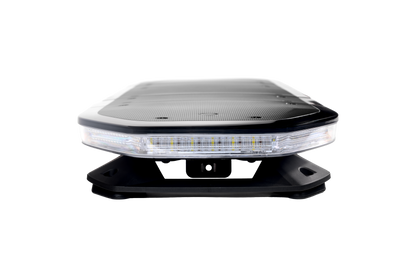

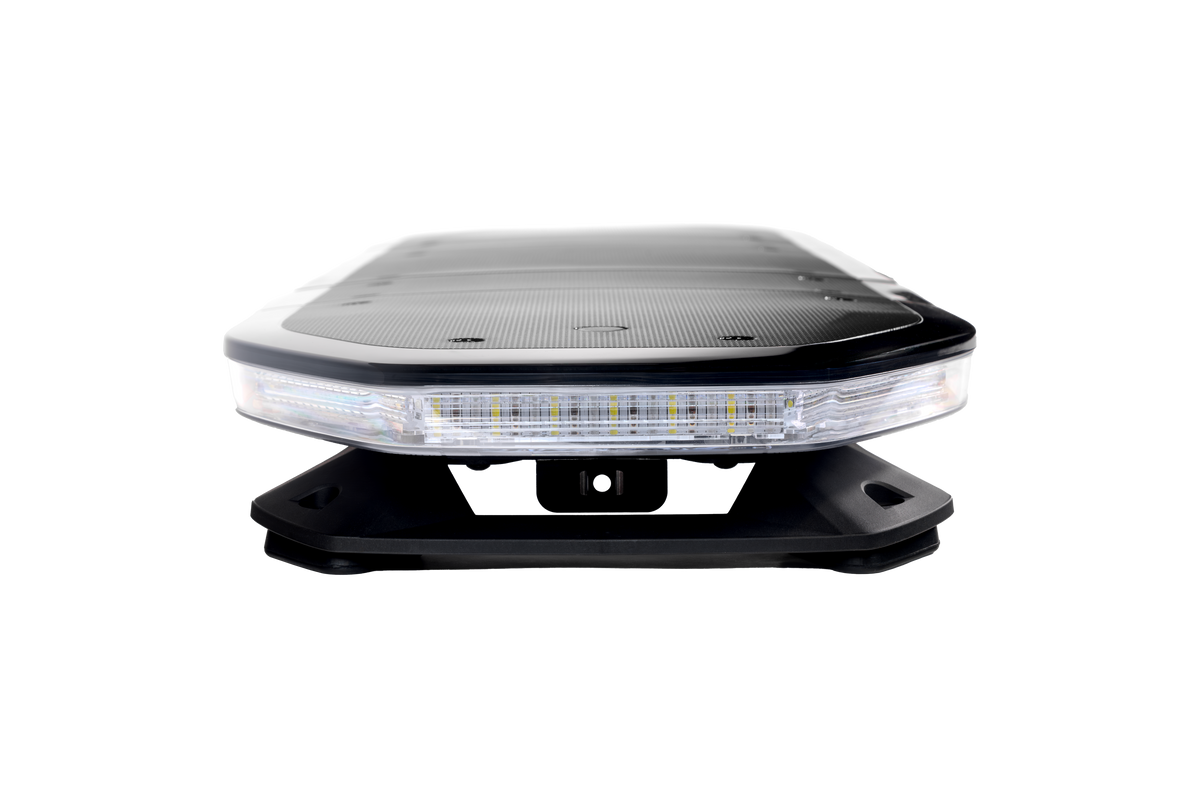

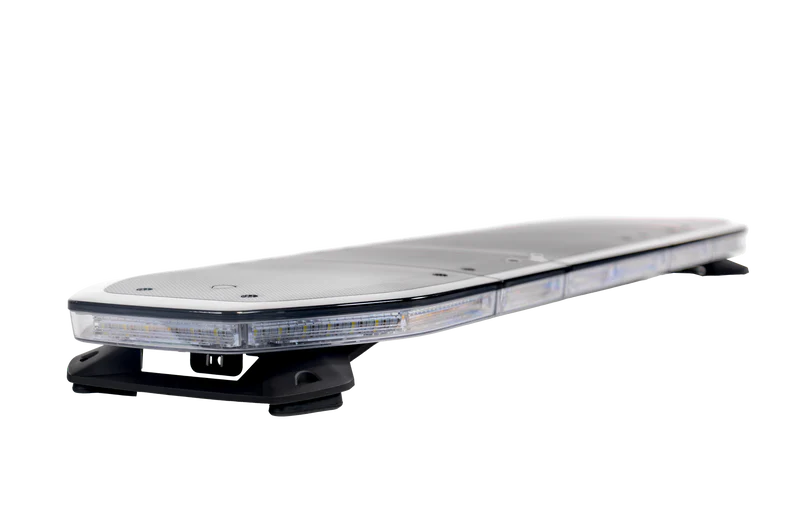

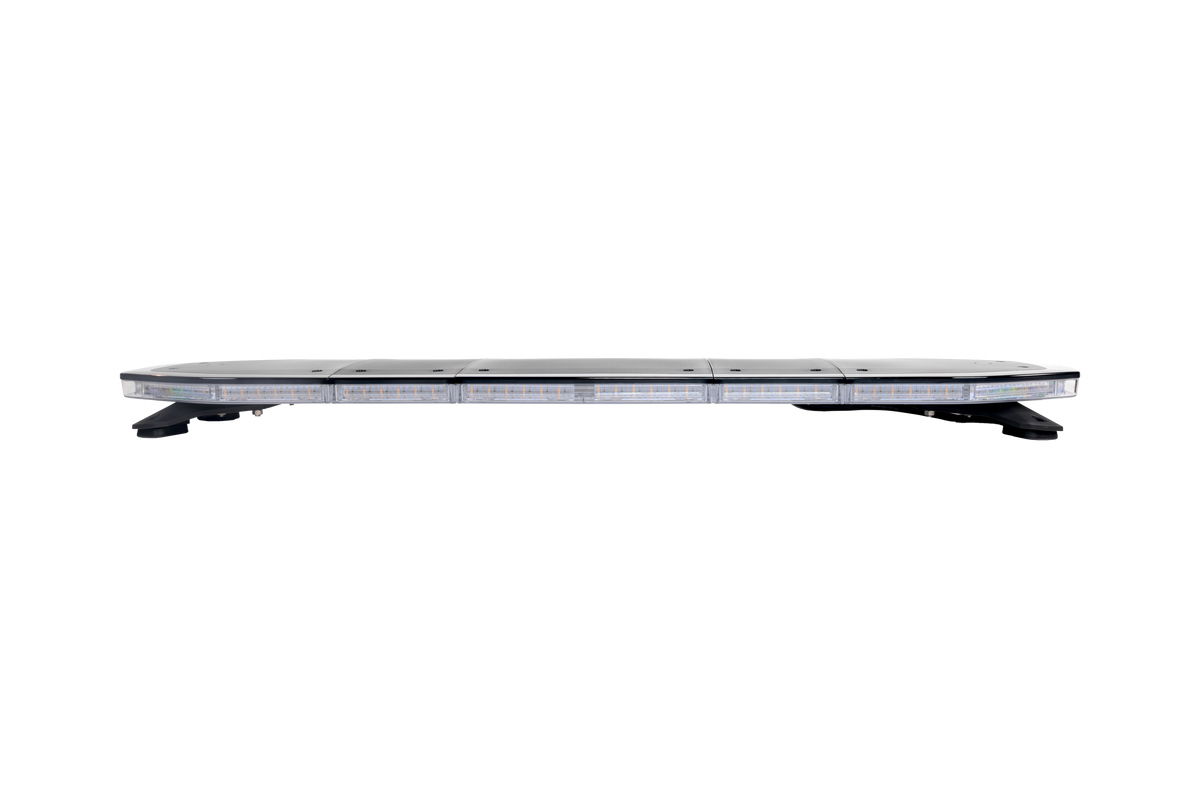

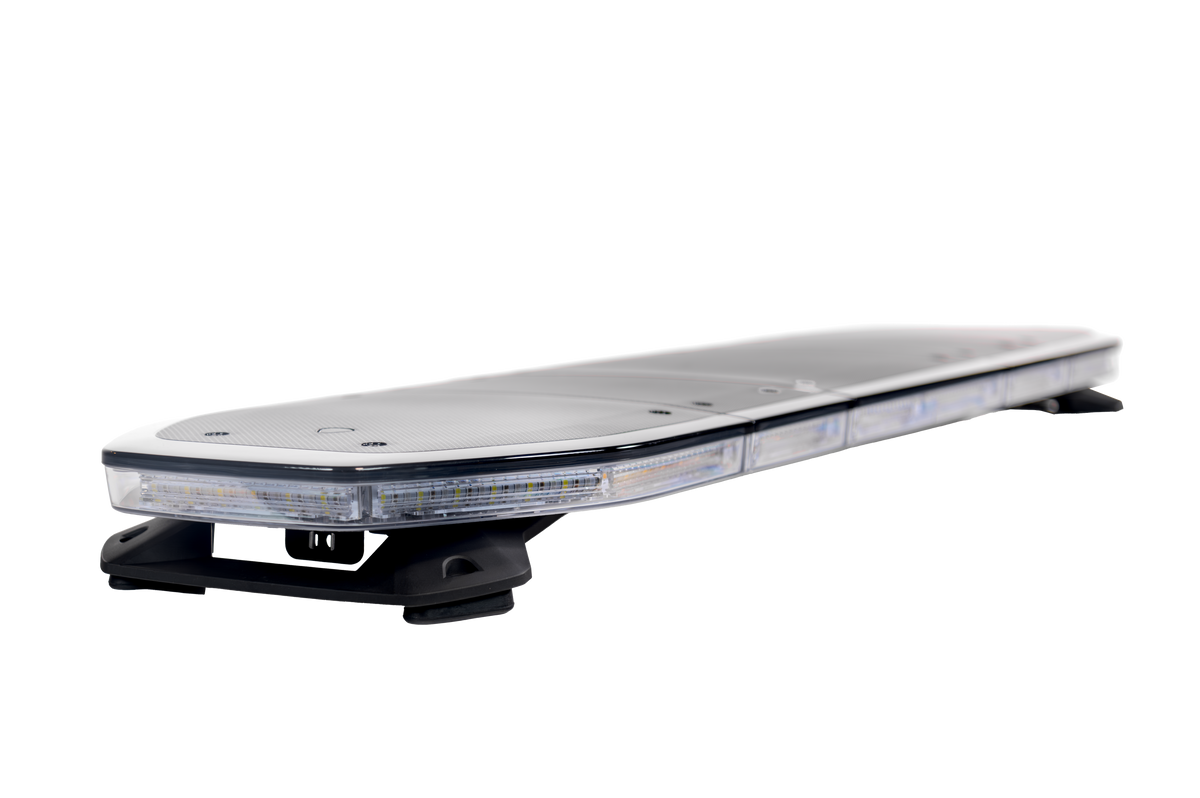

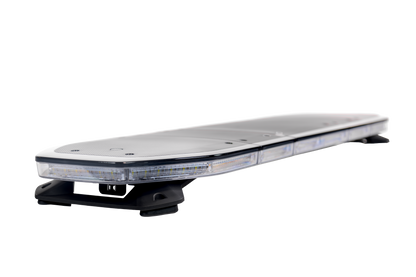

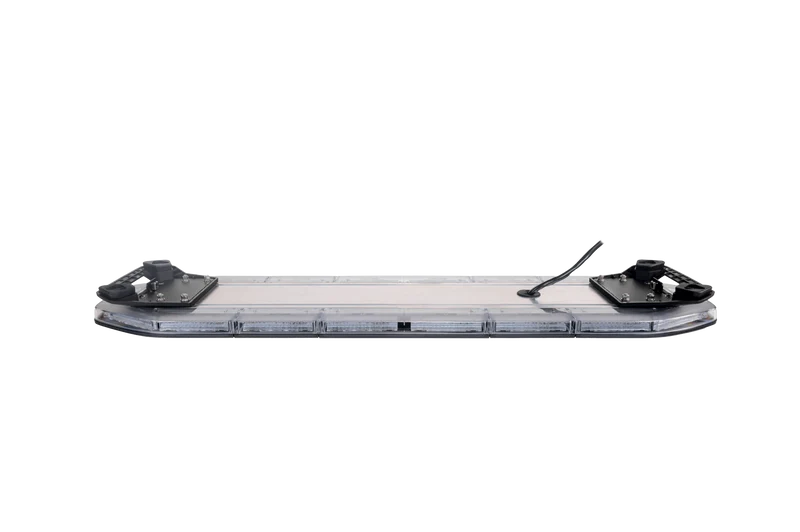

Redline Instinct Lightbar

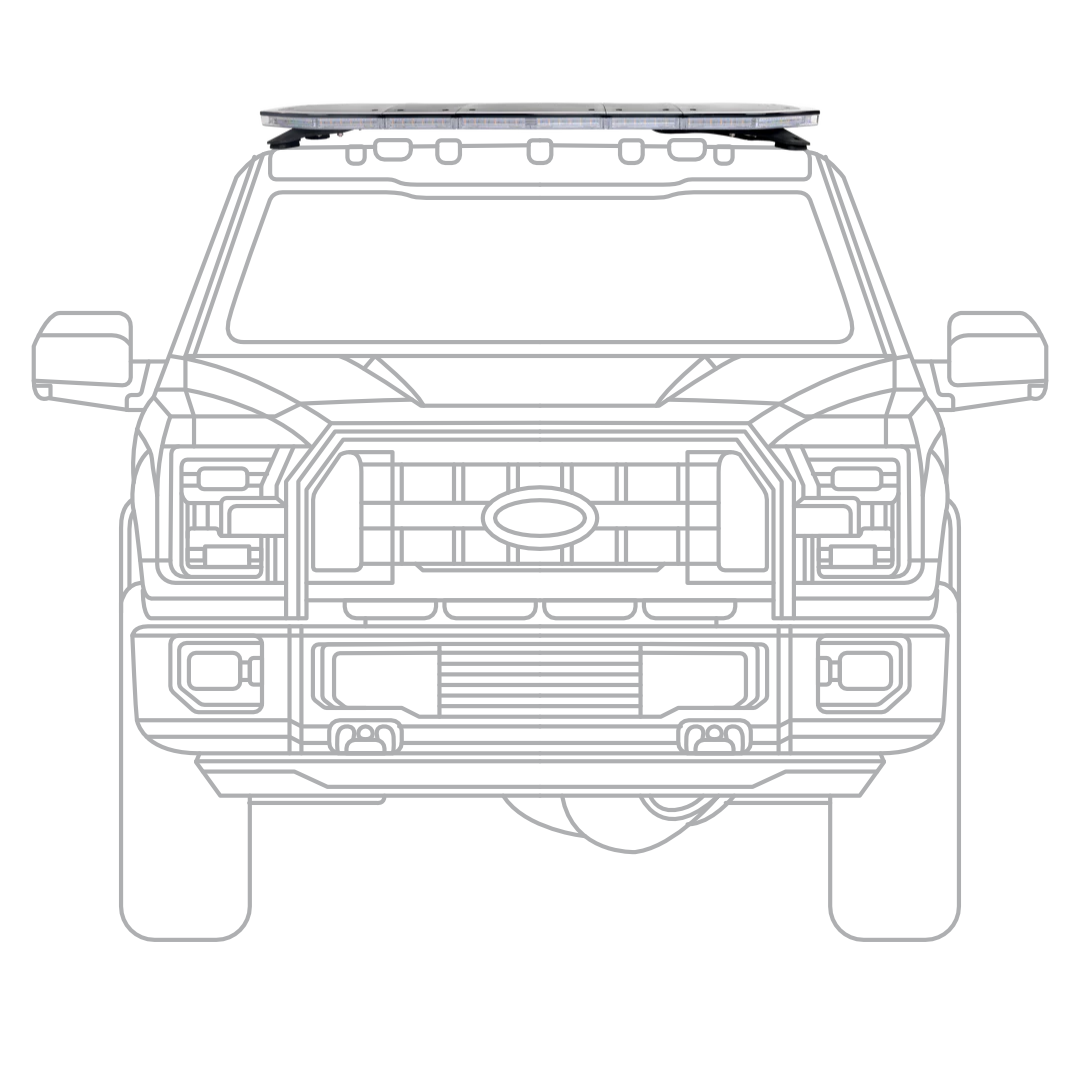

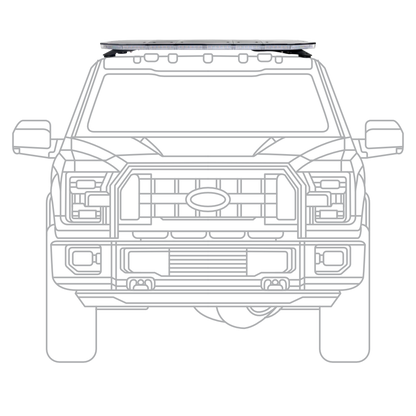

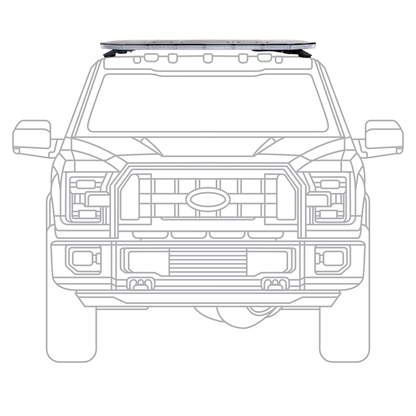

Redline Instinct — low-profile lightbar for POVs, pickups, and SUVs. Software-defined patterns, built-in traffic director, dual photocell auto-dimming.

• Lengths: 48" or 54" | Width × Depth: 12.14" × 1.57"
• Configurations: R/B/W front + R/B/A rear, or Amber/White with integrated STT
• Power: 12–24V DC | 48": 19.8A / 253.44W | 54": 22A / 281.6W | Fuse 30A
• Features: Free PC software; alley, takedown, cruise, traffic advisor; dual sensors for auto night mode

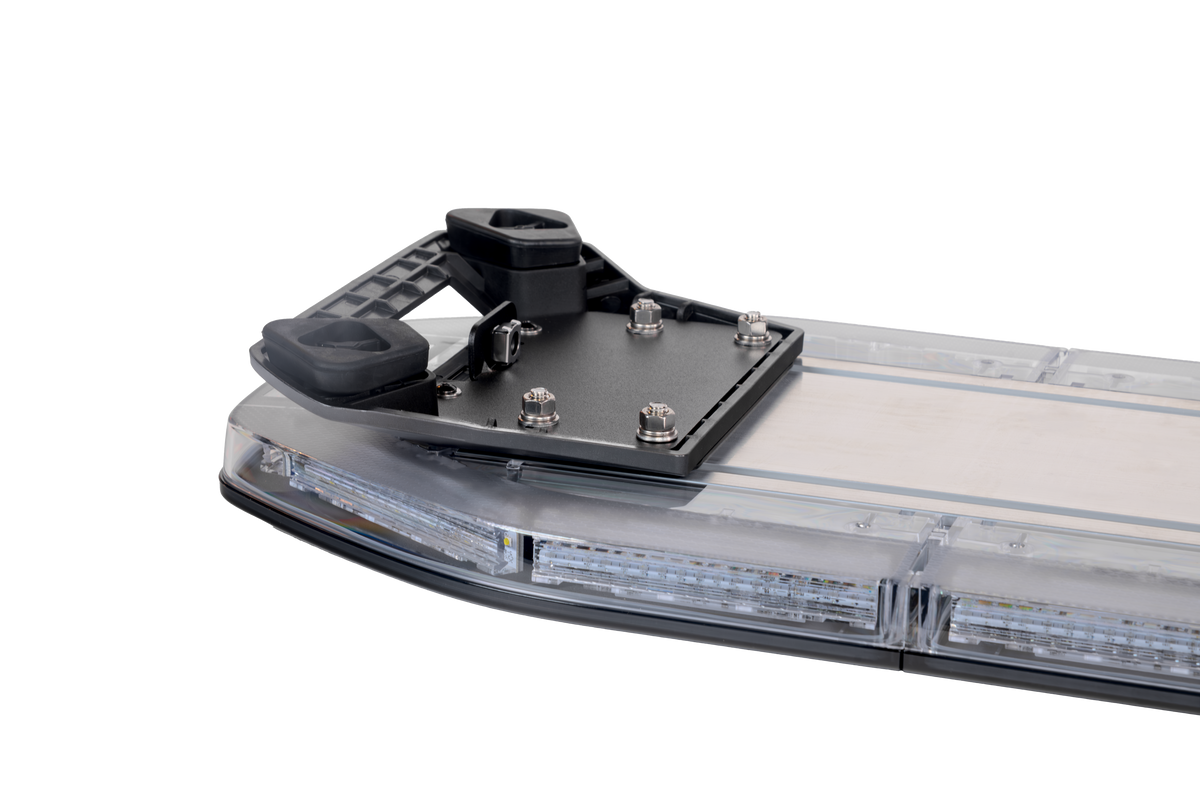

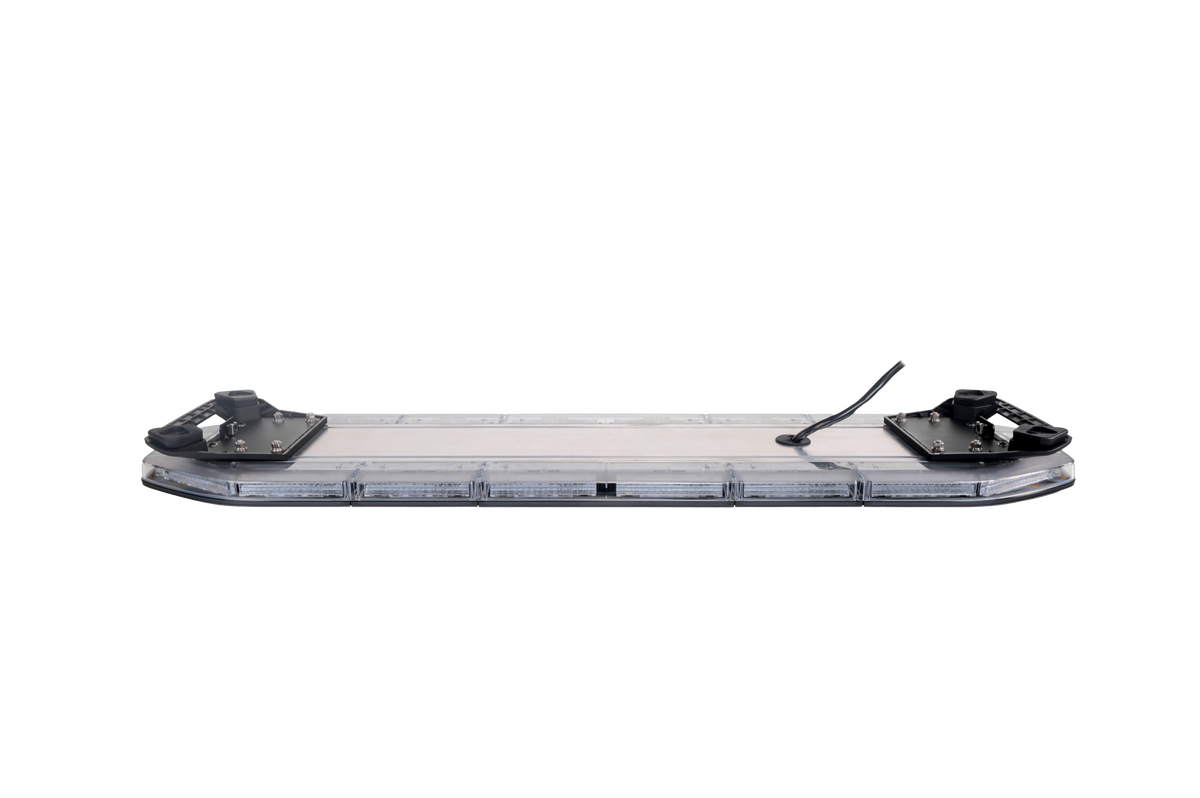

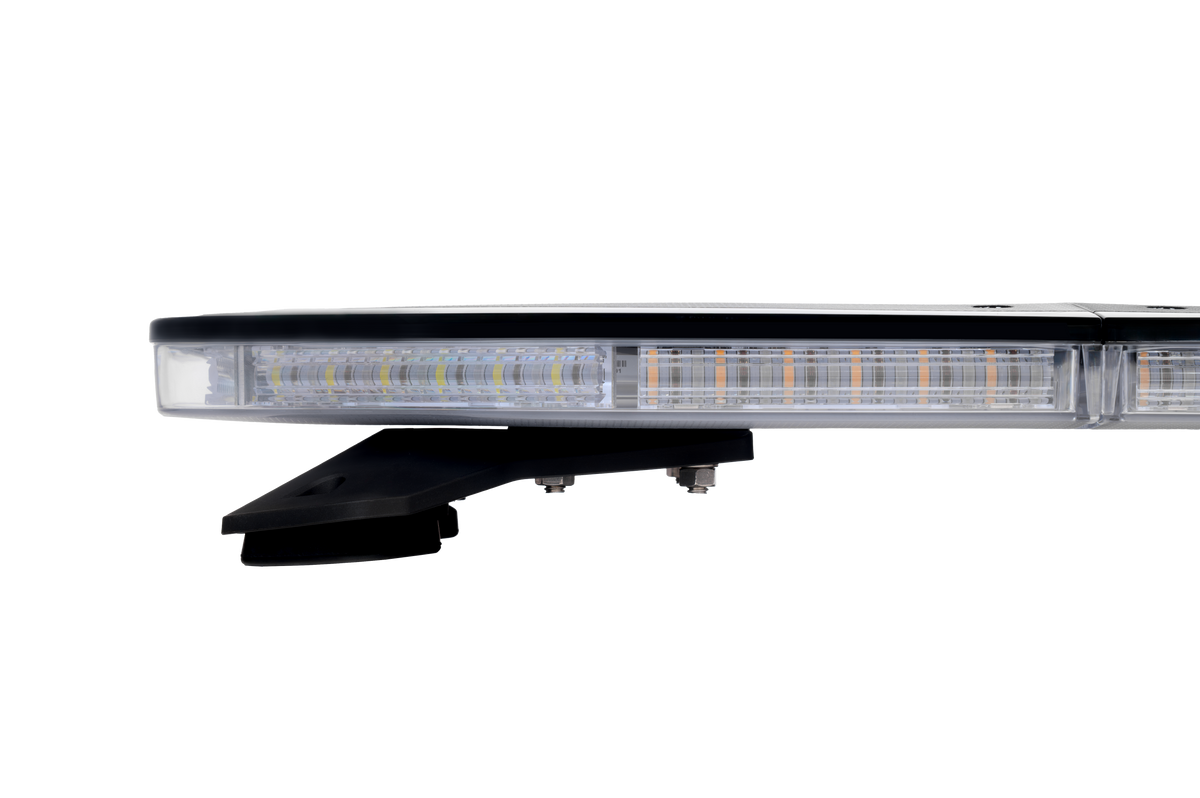

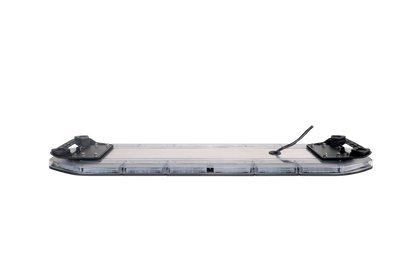

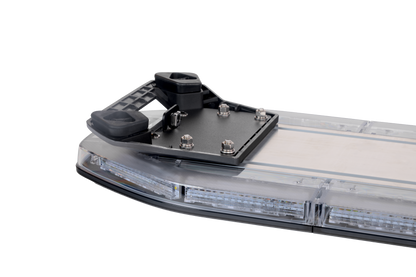

• Mount: Low-profile feet included. Adjustable feet (P-RL-INST-ADJ) and headache-rack mount are accessories, not the included kit.
• Certifications: SAE J845/J595 Class 1, CA Title 13, ECE R65, ECE R10, CISPR 25, ICAO
• 5-year warranty

Instructions / Downloads:

• Instinct Installation Manual (PDF)
• Instinct Serial Bus Controller Manual (PDF)
• Instinct Programming Manual SAE (PDF)
• Instinct Software Package (PC) (PDF)
