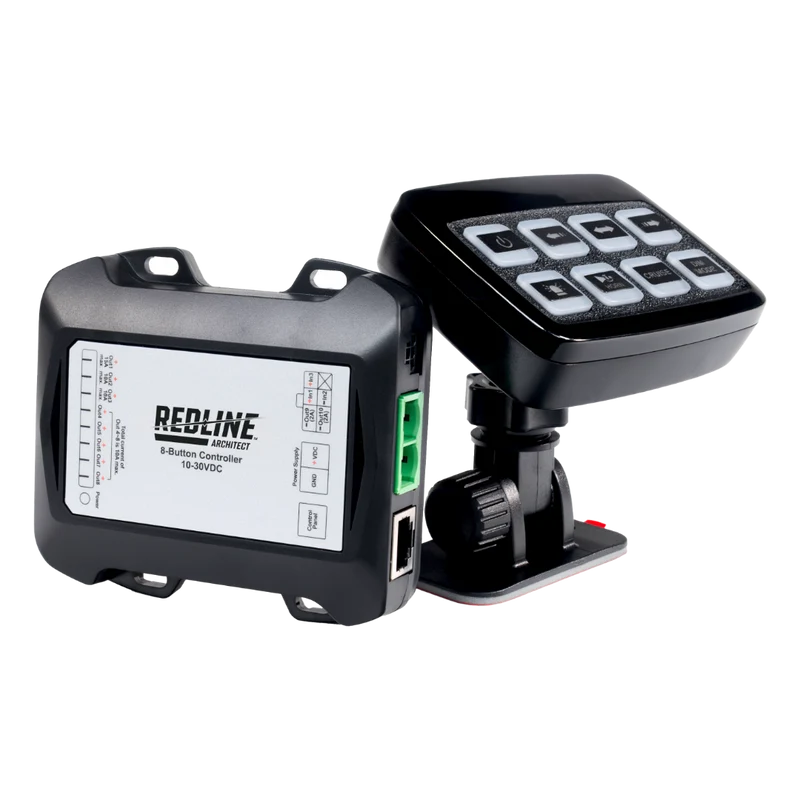

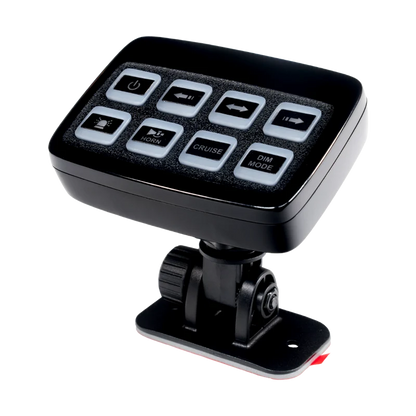

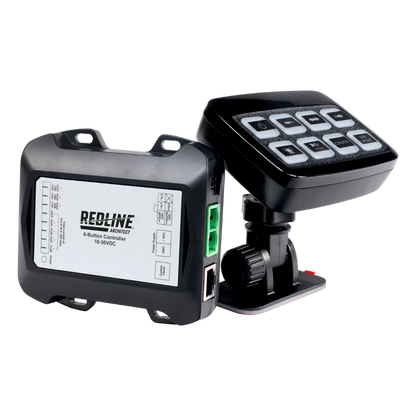

Redline Architect 8-Button Compact Control Panel

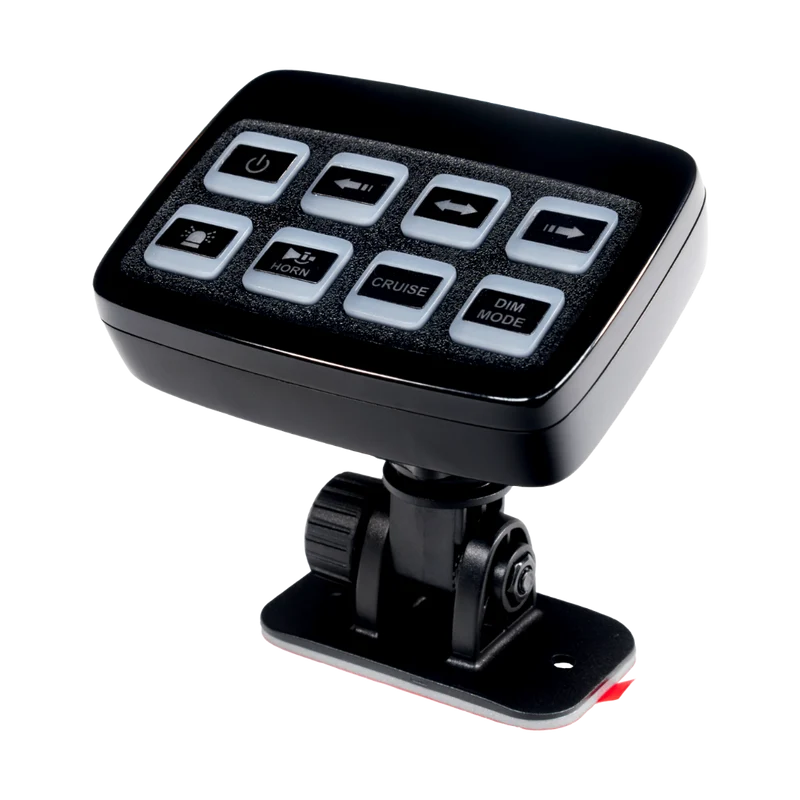

Redline Architect — 8-button compact switch panel with integrated relays for lights and auxiliaries.

• I/O: 3 inputs; one 15A output + seven 10A outputs (45A total)
• Dimensions: 3.74" × 3.61" × 0.99"
• Power: 10–30V DC | Fuse 50A | Standby power-saving mode
• Mount: VHB / suction cup; 12-ft data cable included

Warranty: Redline controllers, including Architect, are a 1-year limited warranty from date of manufacture, parts only. No advance exchange. Redline Warranty Policy

Instructions: Architect Instruction Manual (PDF)

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!
