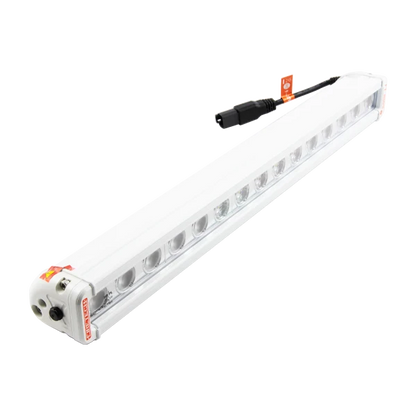

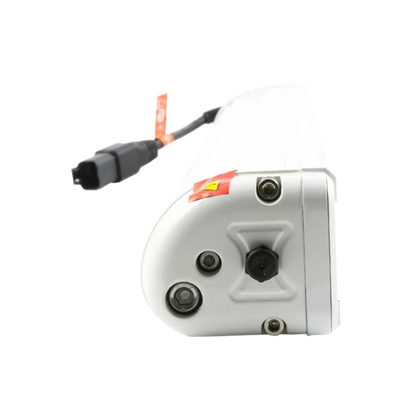

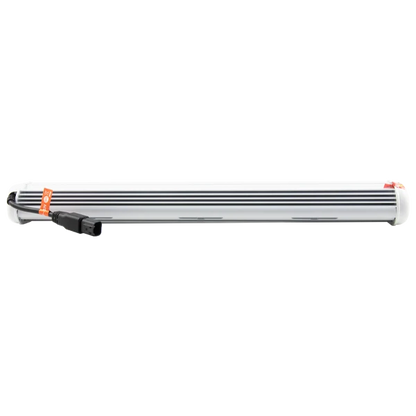

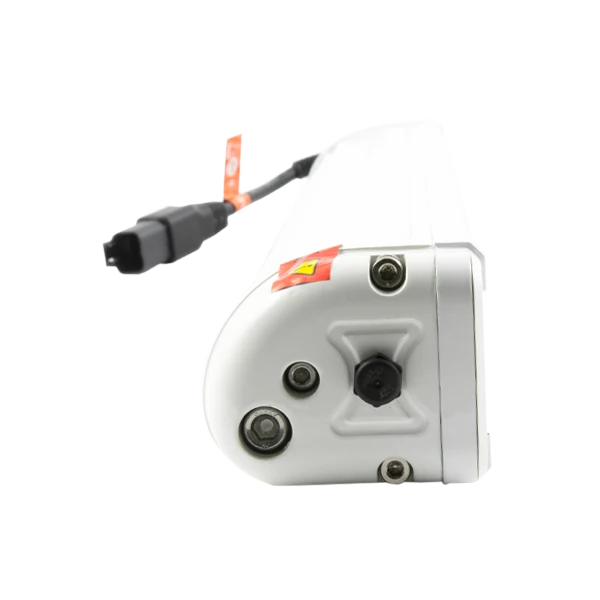

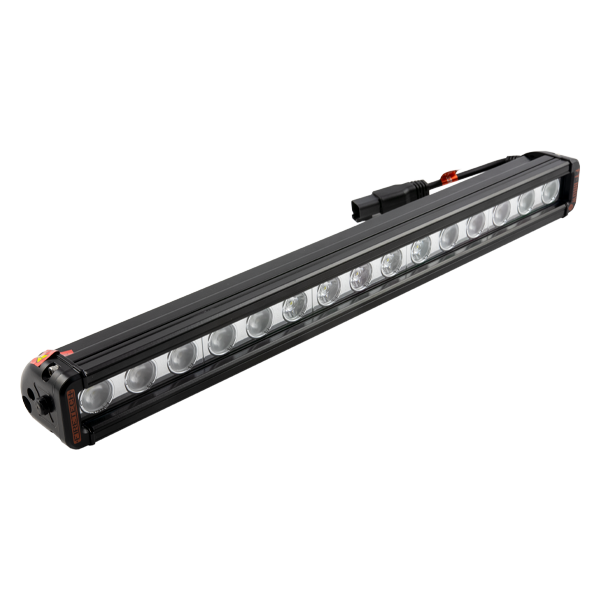

FireTech Single Stack MiniBrow® Light

$545.00 USD

Sale Sold out

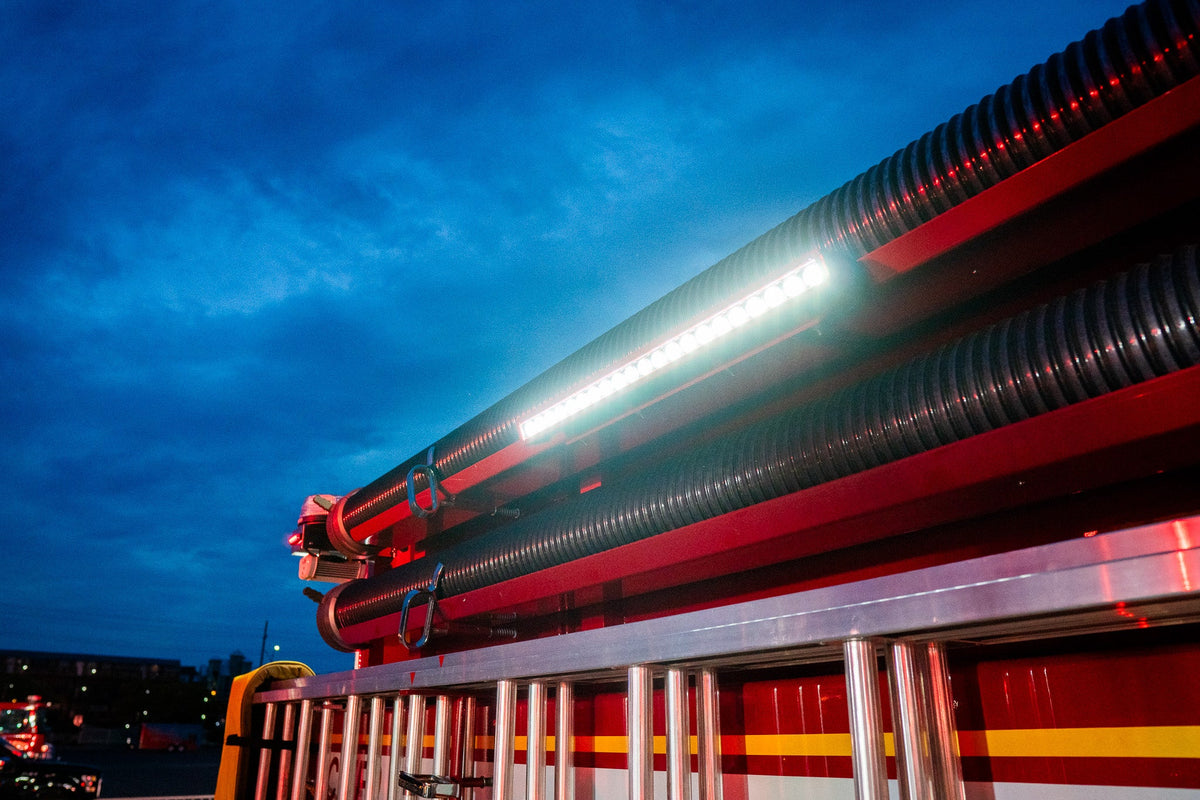

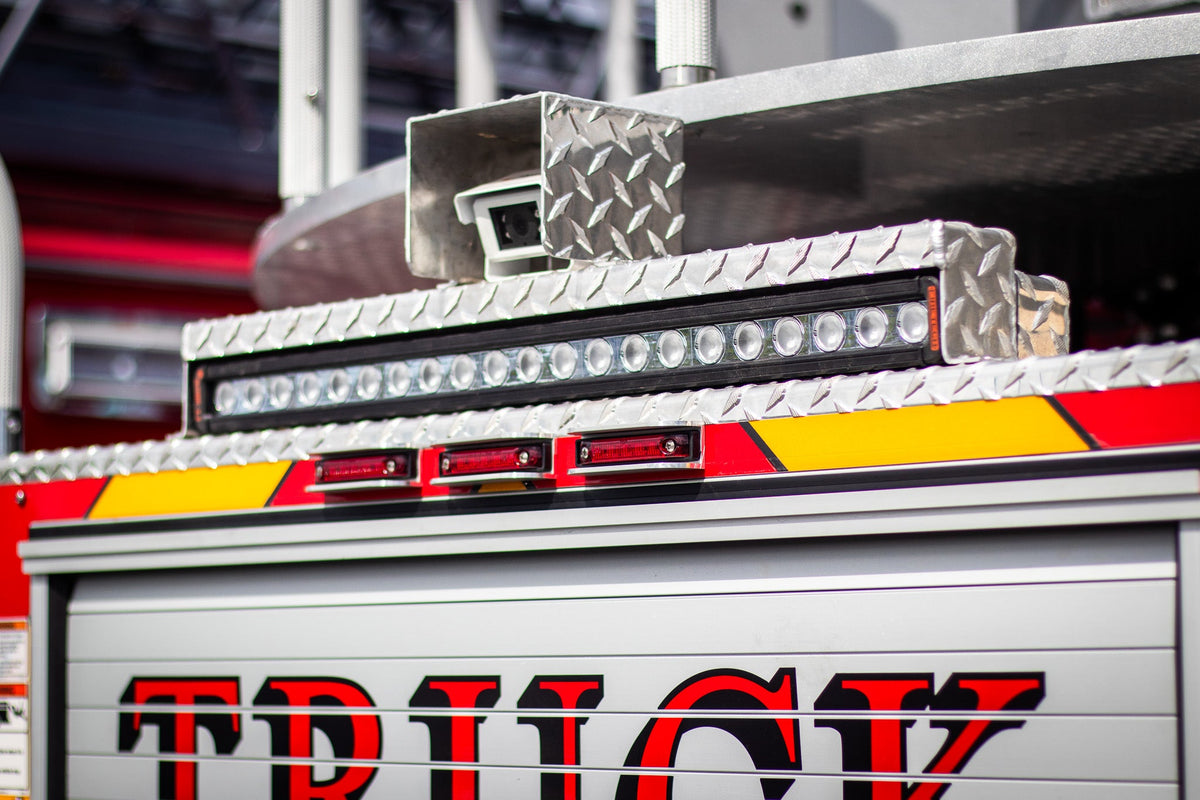

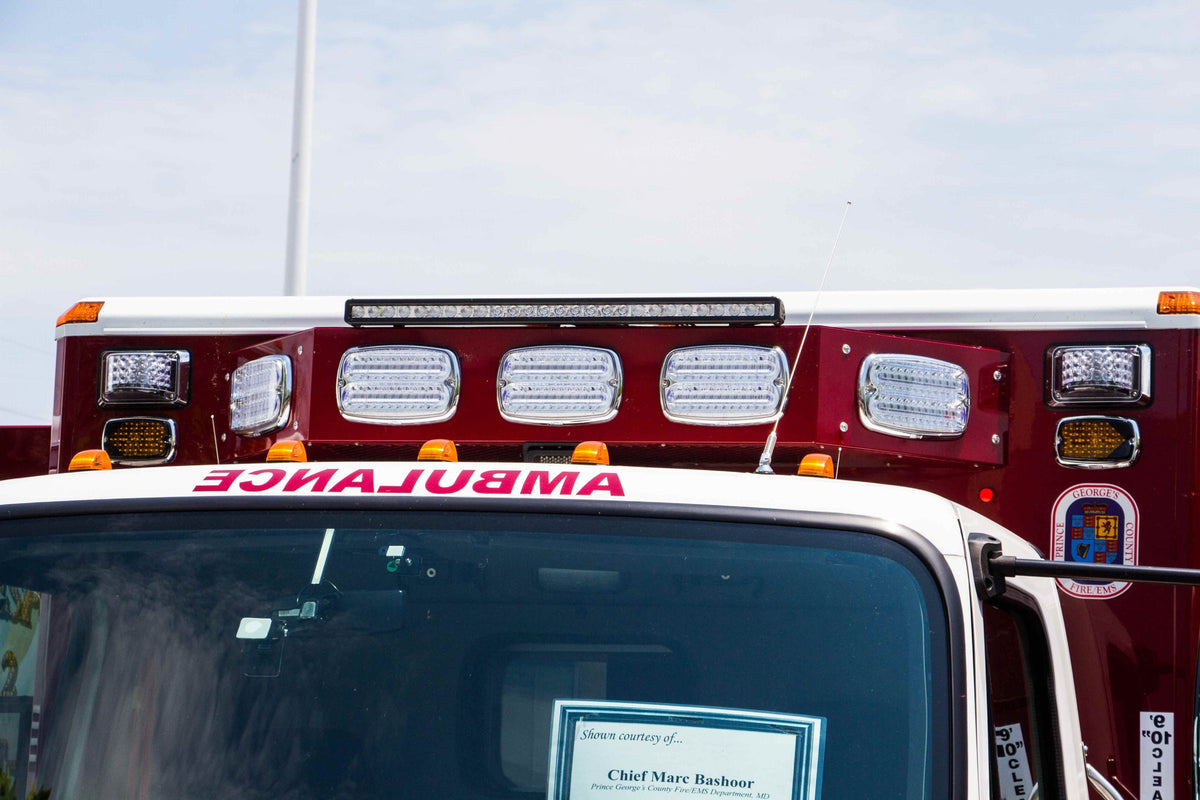

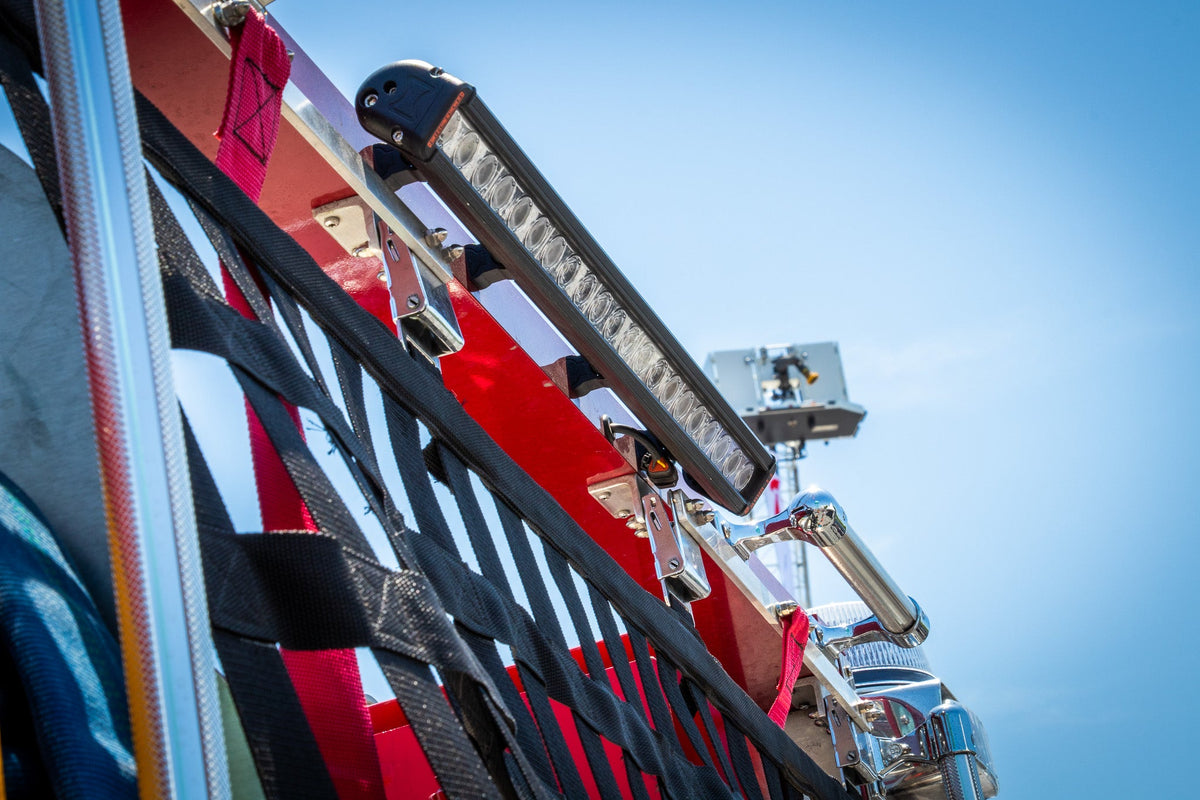

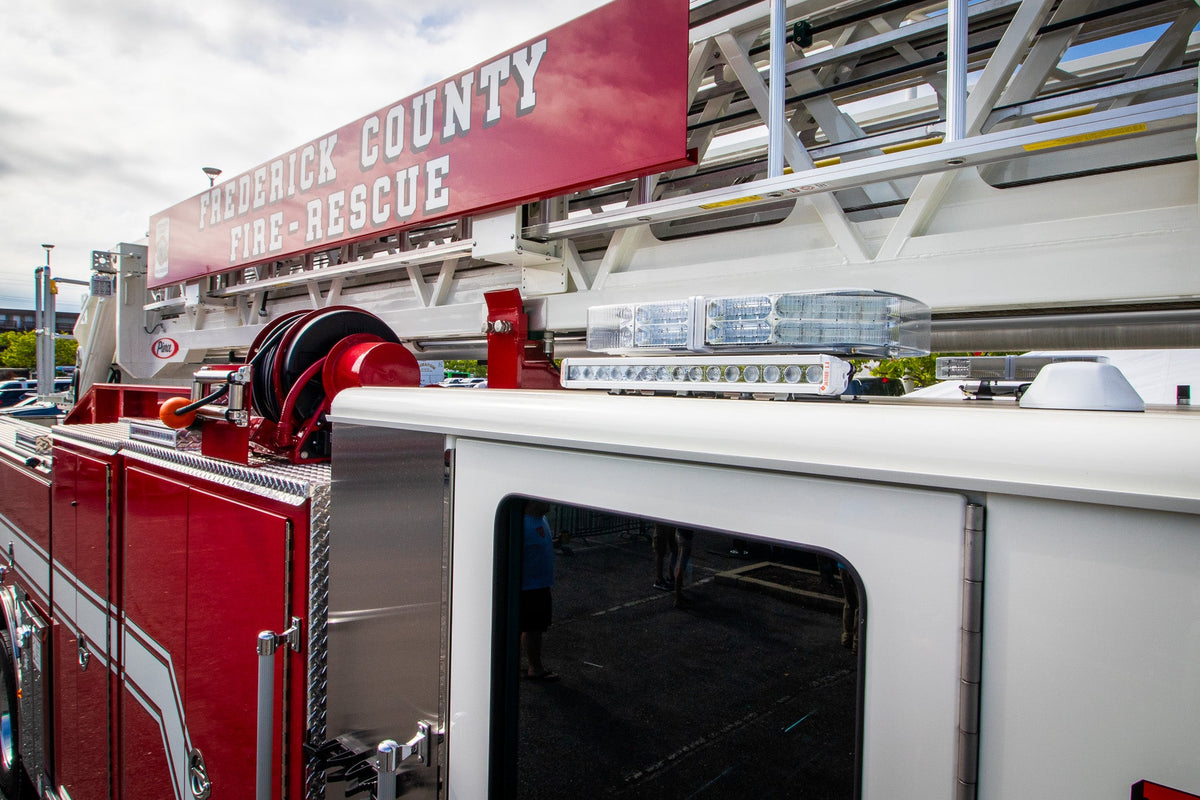

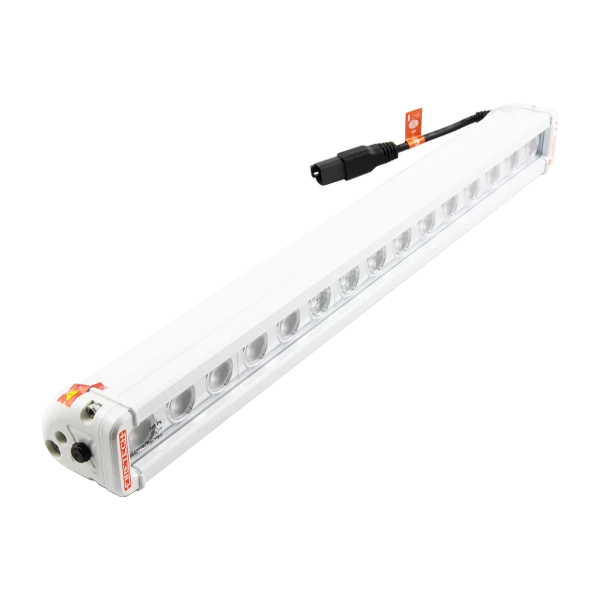

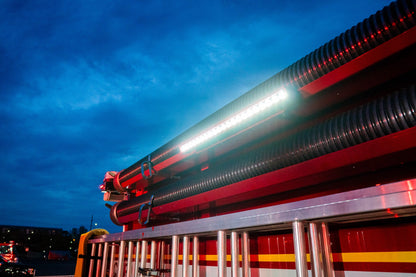

FireTech Single Stack MiniBrow® — compact brow/scene light for apparatus cab leading edge and body applications. Spot, flood, or combination optics; multiple lengths.

Power: 9–32V DC | IP67/69K | 21 GRMS
Optics: Spot, flood, or combination per variant
Mounting options:
Cab Bracket — 3" radius cab surfaces

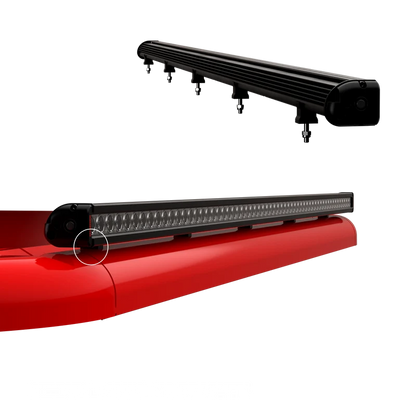

Pedestal Bracket — flat surfaces

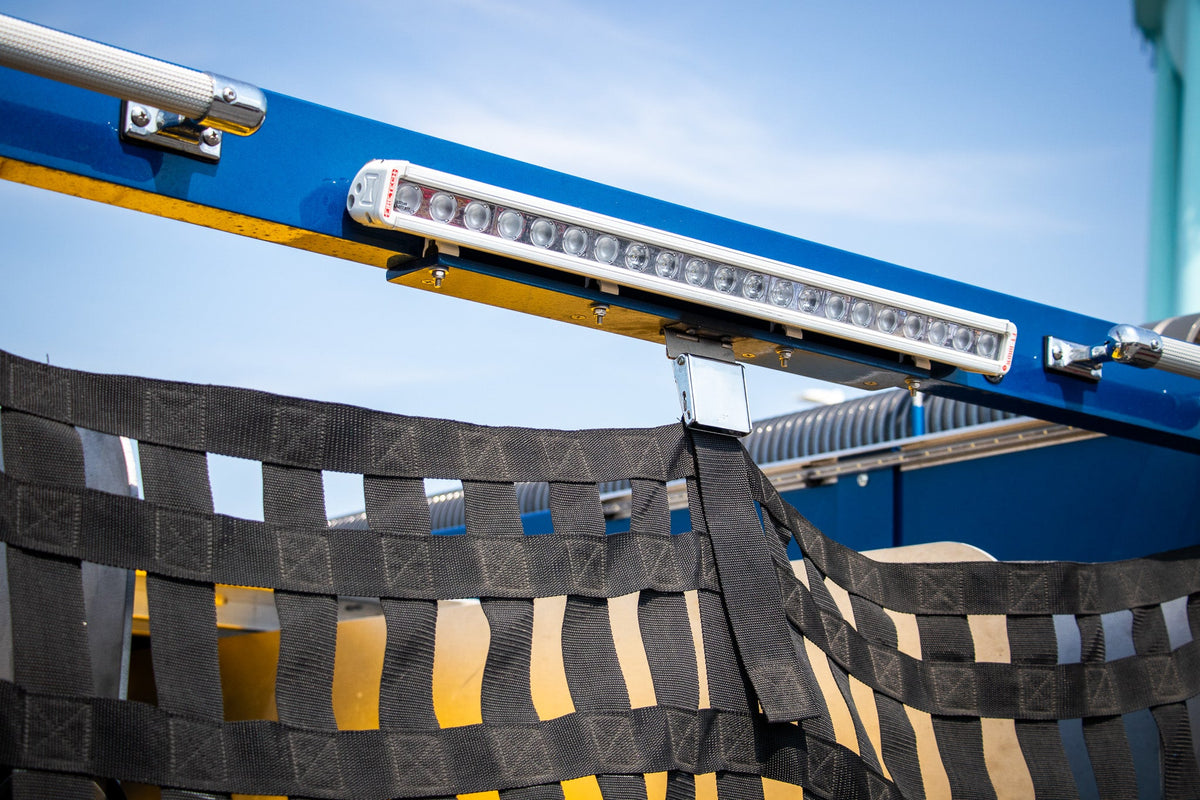

L-Foot Bracket — vertical surface, vertically adjustable aim (White/Black)

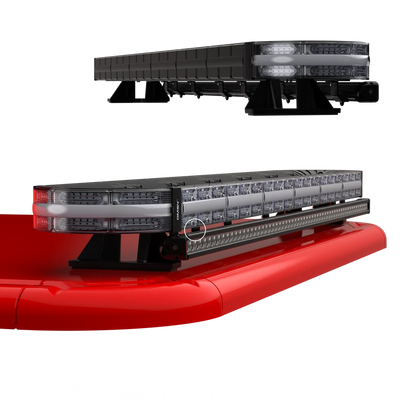

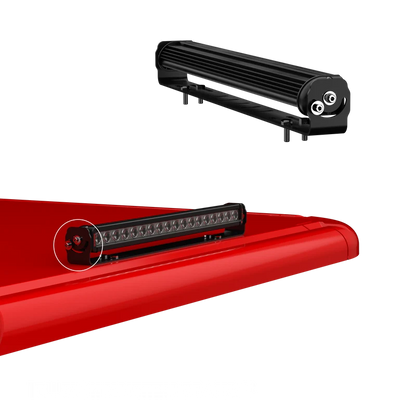

J-Foot Bracket — mount directly to OMEN™ lightbar
Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Official specifications (single-stack MiniBrow® family, all models: 9–32V DC, IP67/69K, 21 GRMS)

6 LED (FT-MB-6-FT-* / FT-MB-6-F-*): 8.60" · 3,168 lm · 2.3A @12.8V · 30W

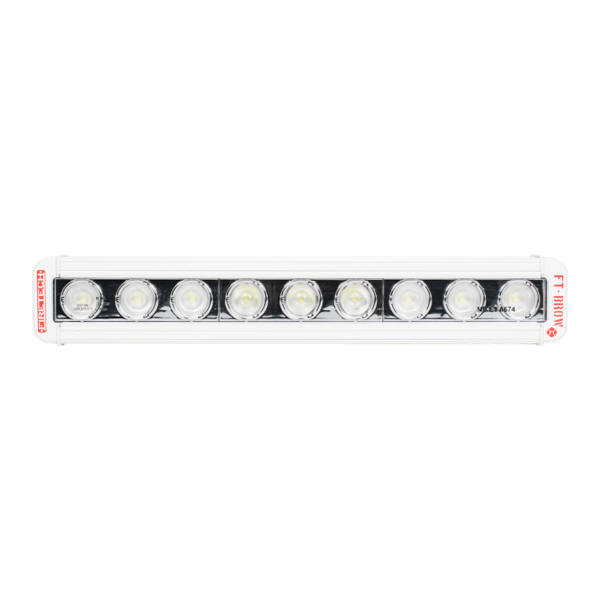

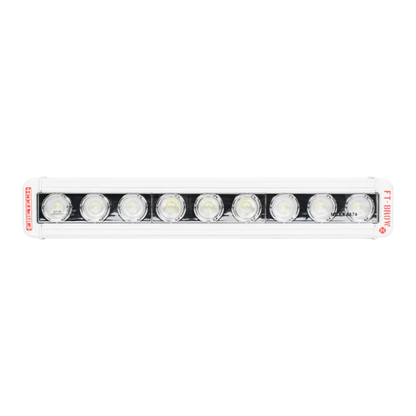

9 LED (FT-MB-9-FT-* / FT-MB-9-S-*): 12.38" · 4,752 lm · 3.5A @12.8V · 45W

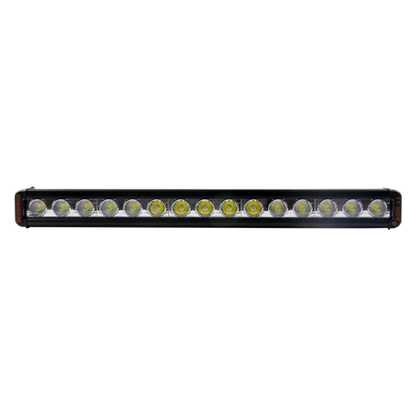

15 LED (FT-MB-15-FT-*): 19.94" · 7,920 lm · 5.9A @12.8V · 75W
18 LED (FT-MB-18-FT-*): 23.72" · 9,504 lm · 7.0A @12.8V · 90W
21 LED (FT-MB-21-FT-*): 27.50" · 11,088 lm · 8.2A @12.8V · 105W
24 LED (FT-MB-24-FT-*): 31.28" · 12,672 lm · 9.4A @12.8V · 120W
27 LED (FT-MB-27-FT-* / FT-MB-27-F-*): 35.06" · 14,256 lm · 10.5A @12.8V · 135W
33 LED (FT-MB-33-FT-*): 42.62" · 17,424 lm · 12.9A @12.8V · 165W
39 LED (FT-MB-39-FT-W): 50.18" · 20,592 lm · 15.2A @12.8V · 195W
9 LED Trunnion (FT-MB-9-TR-FT-*): 13.87" · 4,752 lm · 3.75A @12.8V · 45W
12 LED Trunnion (FT-MB-12-TR-FT-*): 17.65" · 6,336 lm · 5.0A @12.8V · 60W
18 LED Trunnion (FT-MB-18-TR-FT-*): 25.20" · 9,504 lm · 7.5A @12.8V · 90W

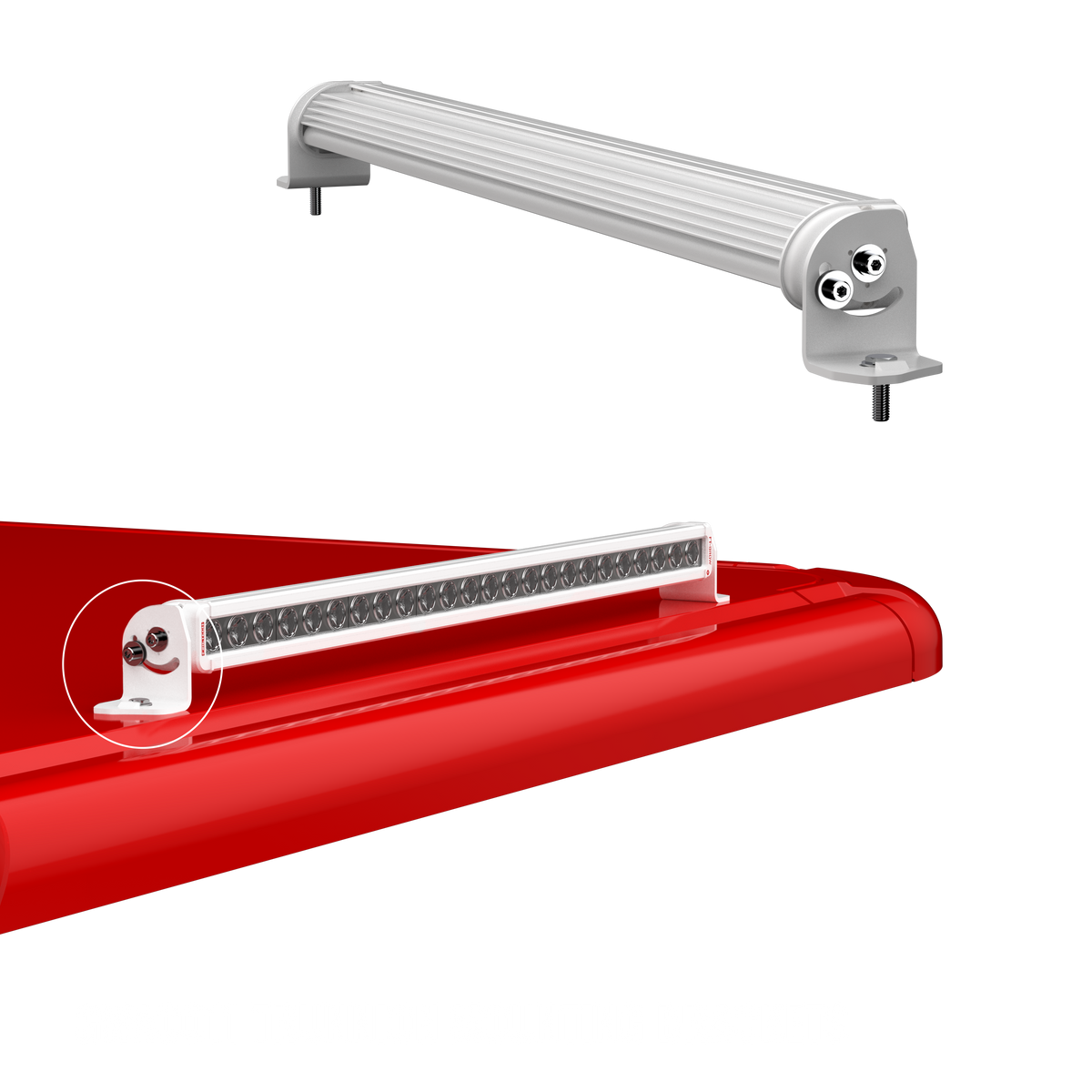

18 LED GWA0011 (FT-MB-18-FT-*-GWA0011): 28.15" · 9,504 lm · 7.5A @12.8V · 90W
24 LED GWA0011 (FT-MB-24-FT-*-GWA0011): 35.71" · 12,672 lm · 10.0A @12.8V · 120W
