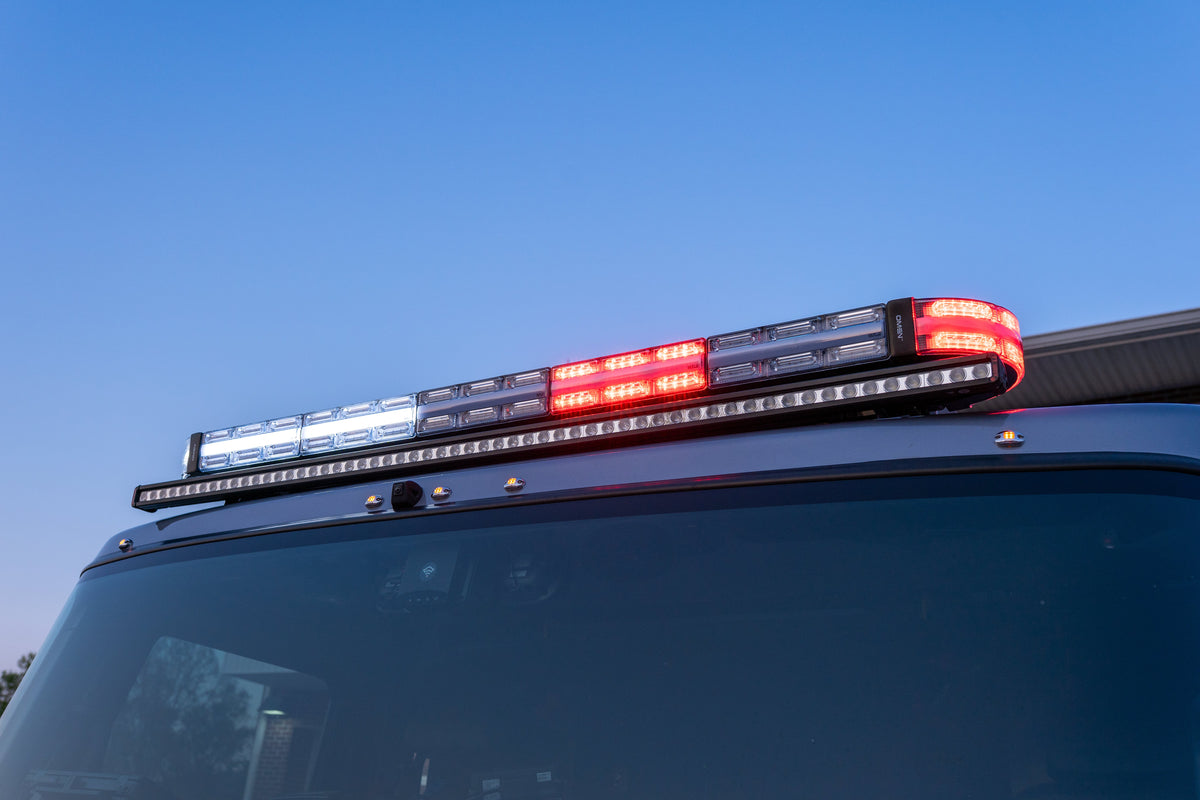

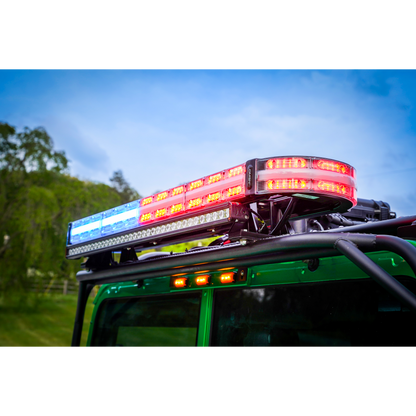

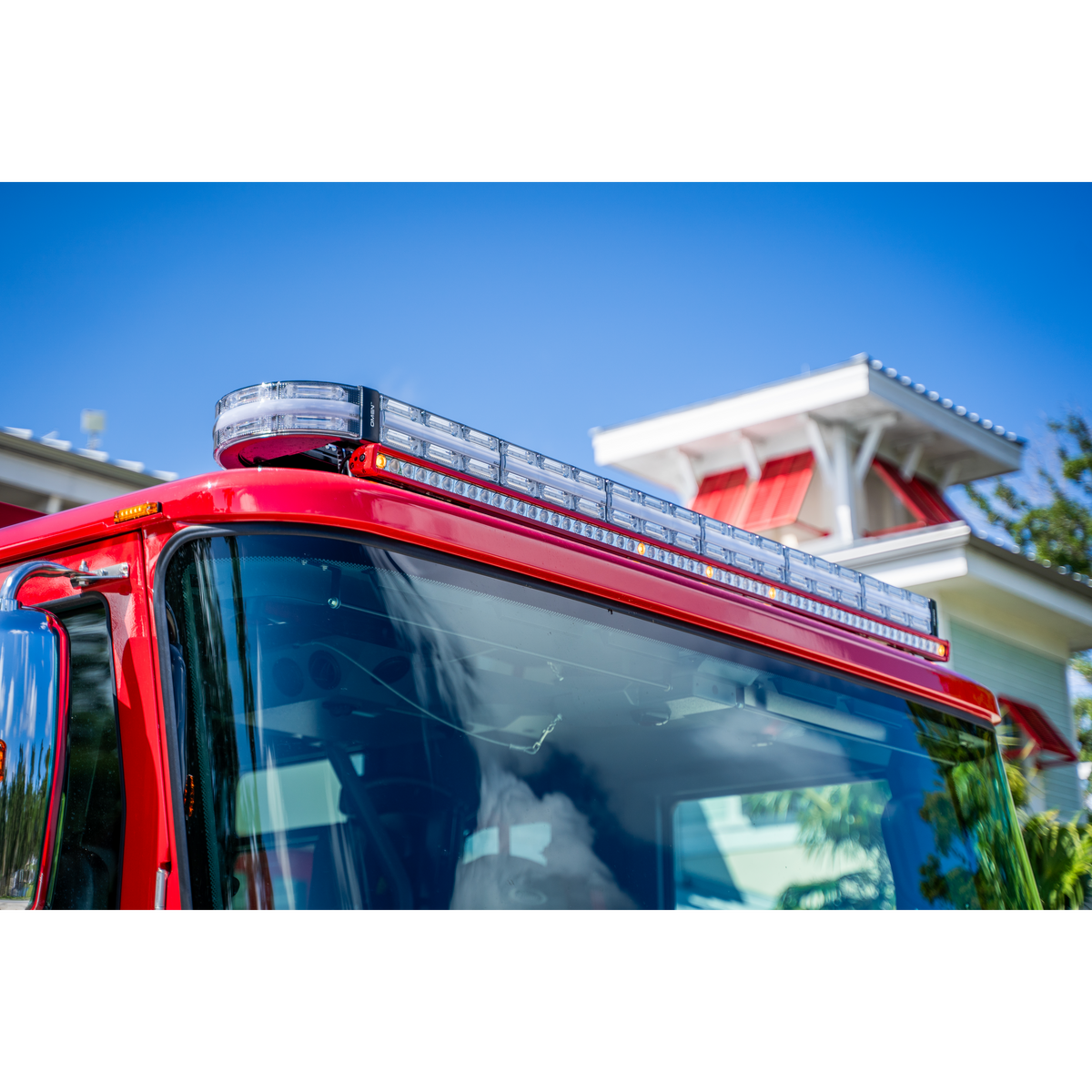

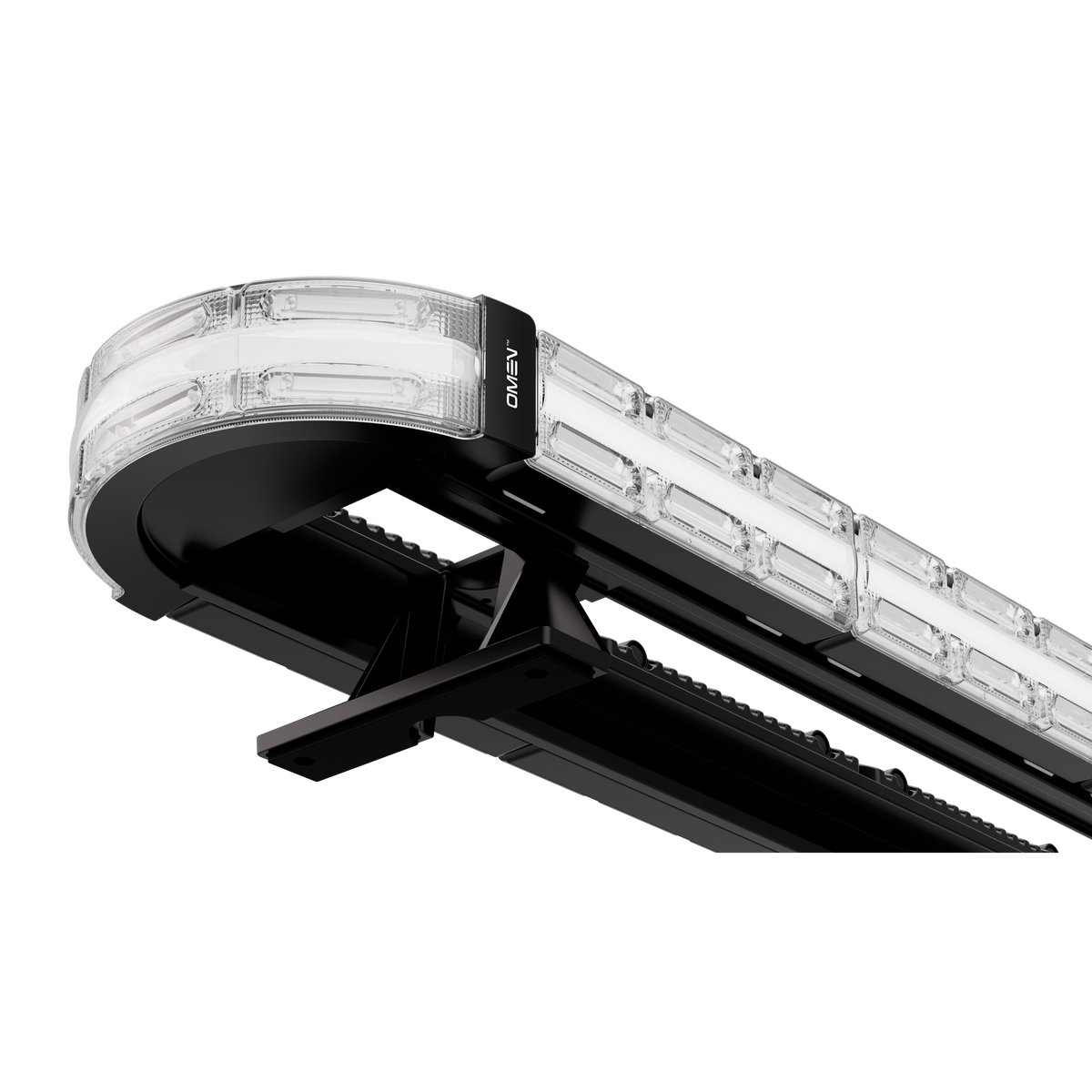

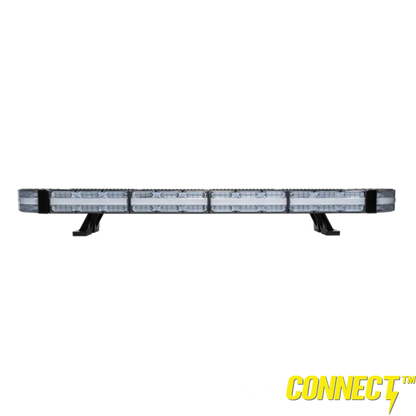

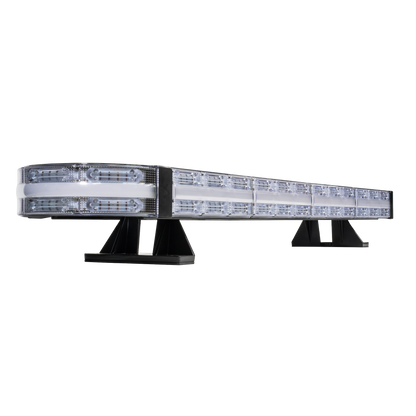

FireTech OMEN™ HiViz Connect Warning Lightbar

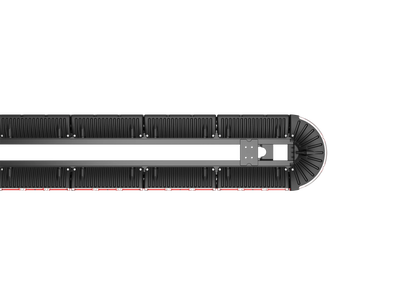

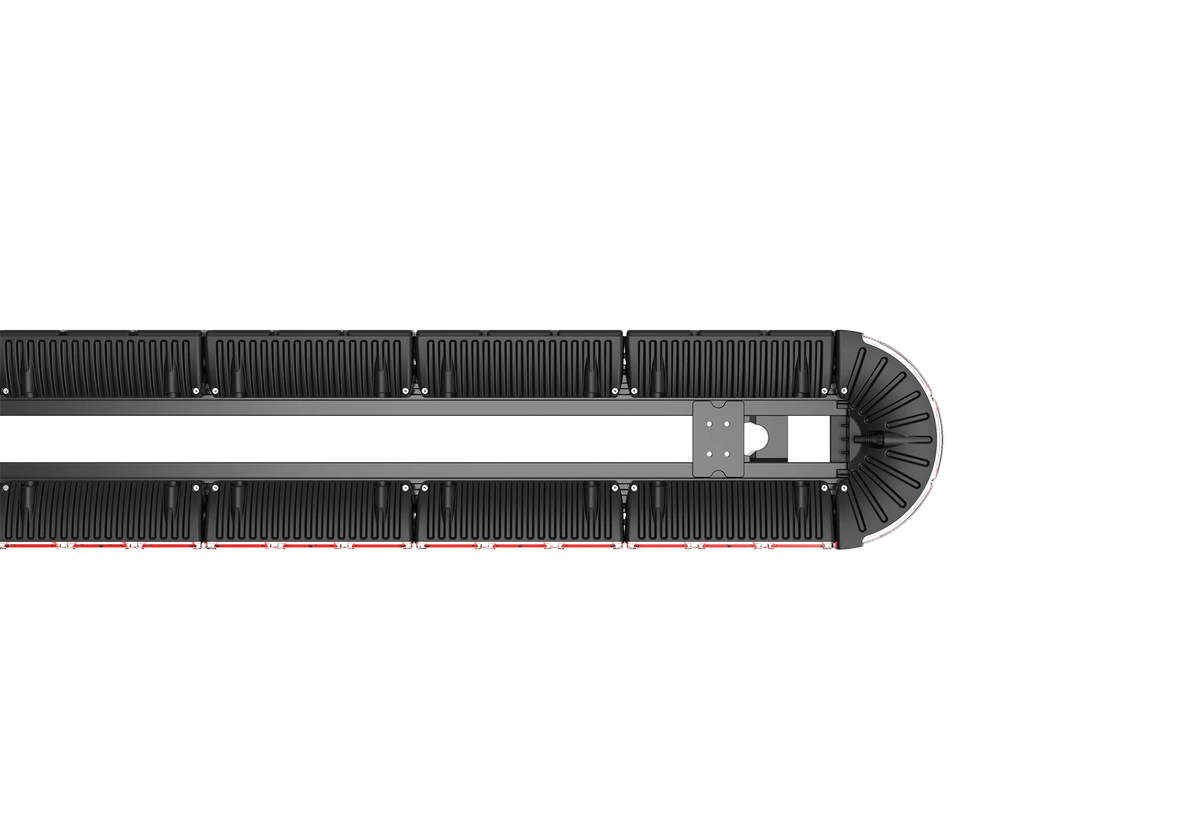

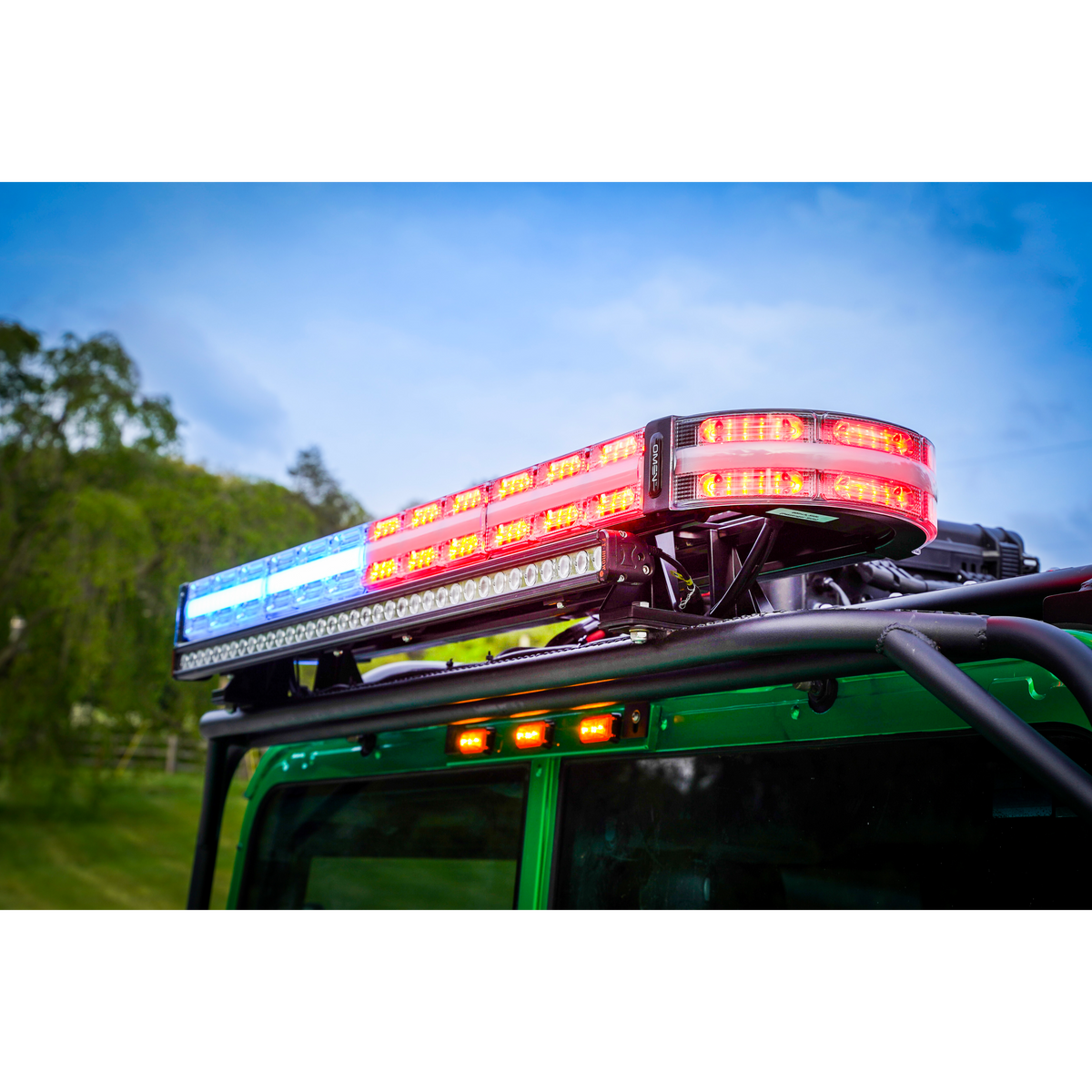

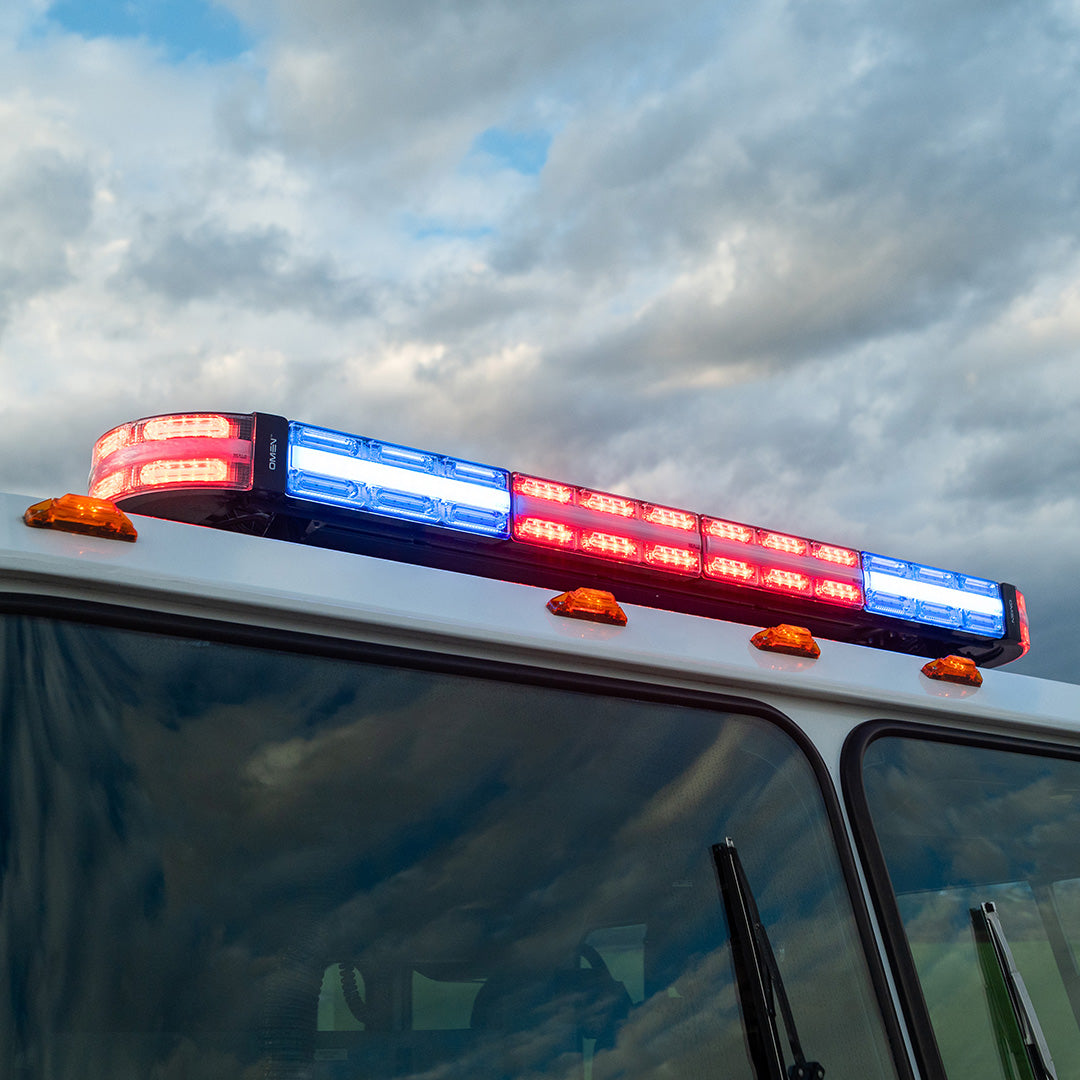

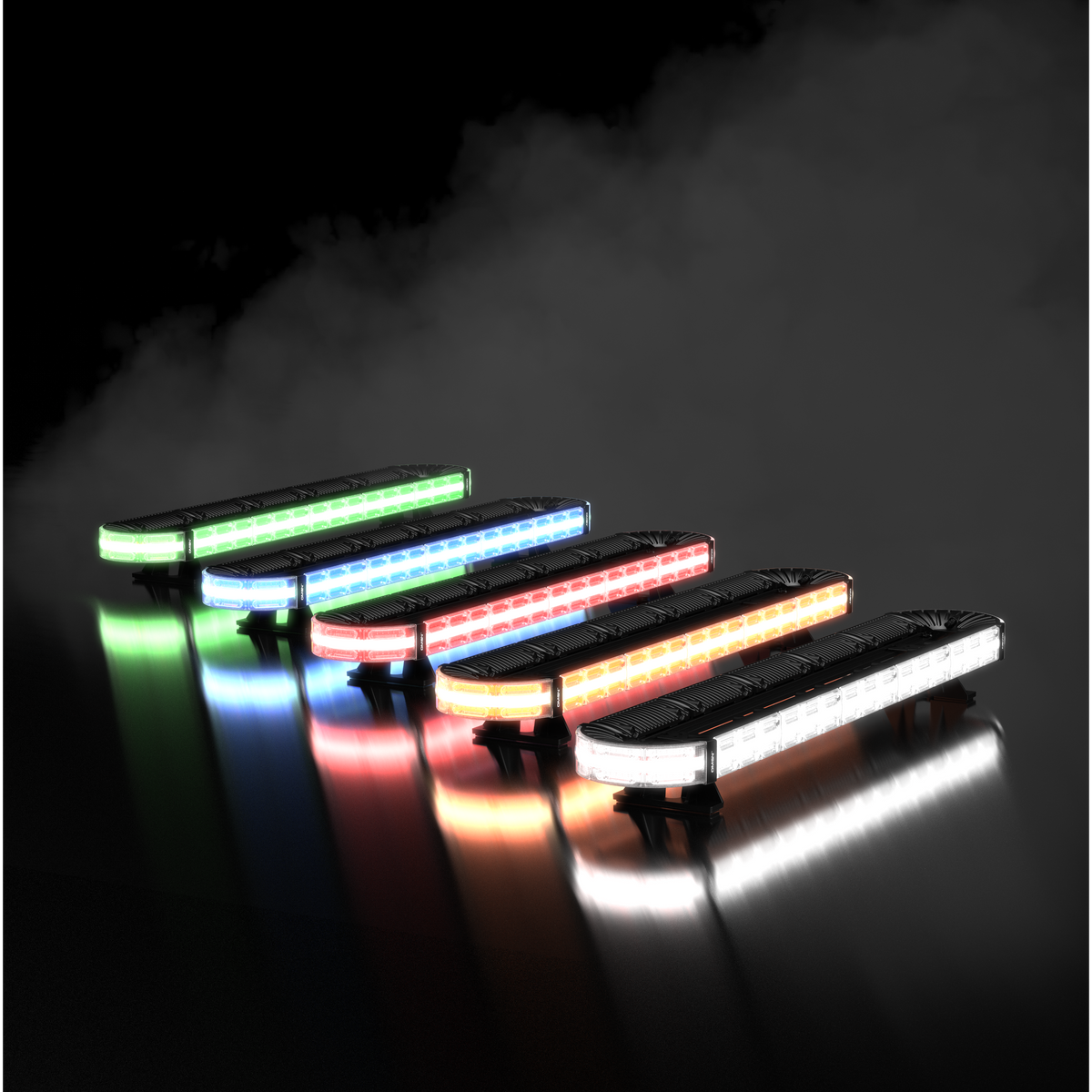

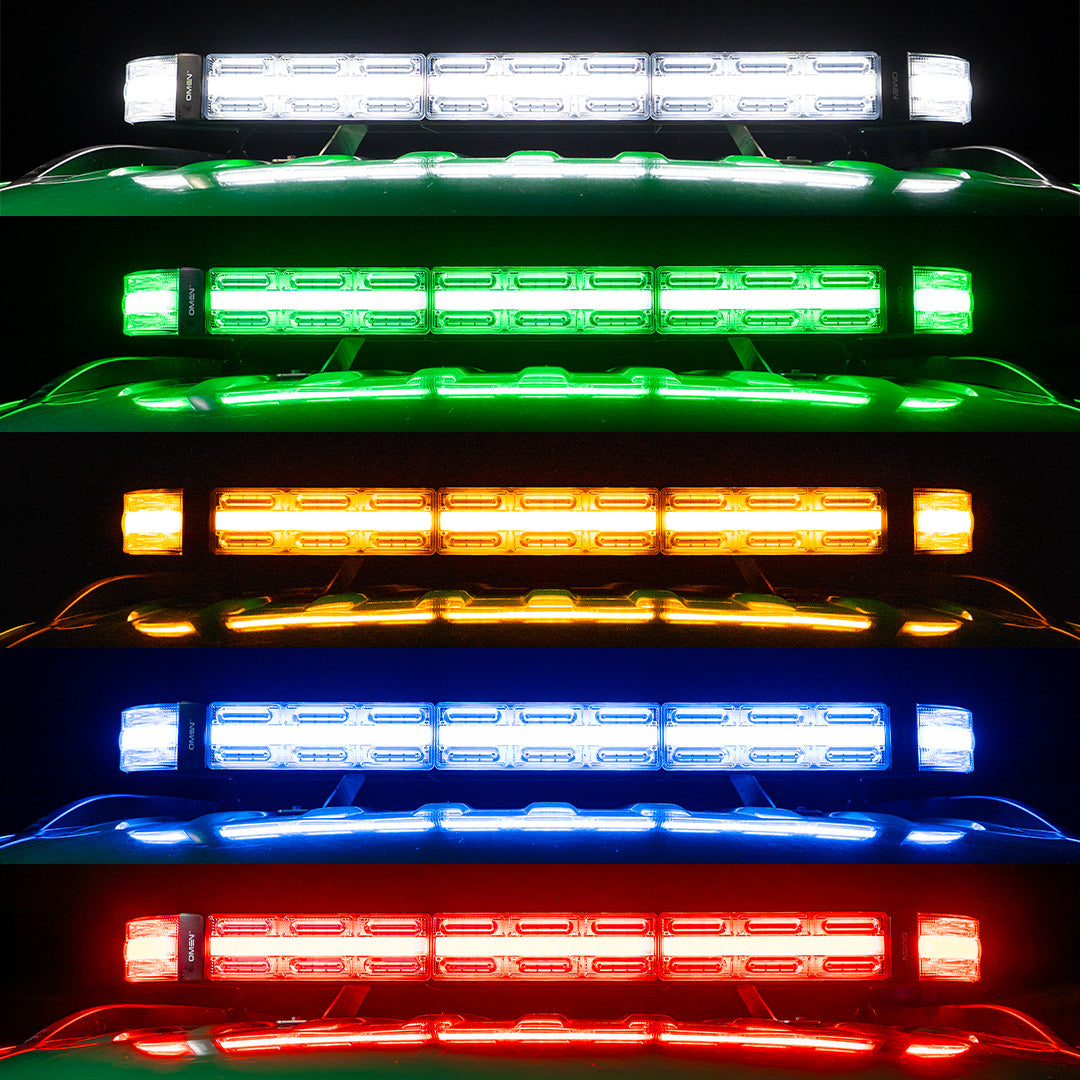

FireTech OMEN™ HiViz Connect Warning Lightbar — fully populated multi-color center row (red, blue, amber, green, white). No configurator required. Modular semiconductor design; replace a module instead of the whole bar.

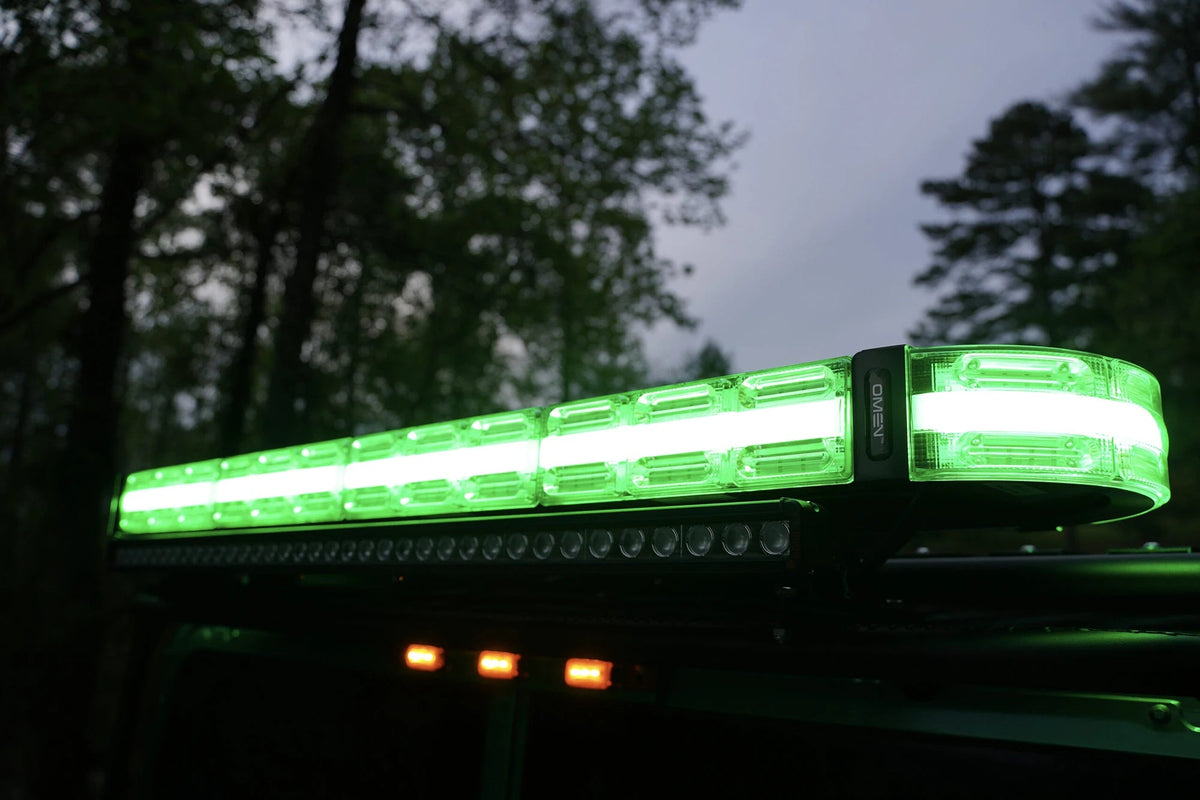

• Command on Demand™: One button sets the lightbar and any green-LED fixtures to steady-burn green for command function
• Automatic Night Mode: Dual optical sensors set intensity globally across all connected HiViz Connect fixtures
• Moisture design: No central cavity to fill with water; mechanically affixed venting keeps housings at neutral pressure
• Power (all models): 11–32V DC | IP68/69K | 10 GRMS vibration
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Specifications by length:

• 24" Minibar — 24.3"×12.7"×7.0" | 29.5 lbs | 20.0A @12.8V | 256.7W
• 36" — 36.3"×12.7"×7.0" | 38.6 lbs | 26.1A | 334W
• 48" — 48.3"×12.7"×7.0" | 47.8 lbs | 32.1A | 411W
• 60" — 60.3"×12.7"×7.0" | 56.9 lbs | 38.2A | 488W
• 72" — 72.3"×12.7"×7.0" | 66.0 lbs | 44.2A | 566W
• 84" — 84.3"×12.7"×7.0" | 75.2 lbs | 50.2A | 643W
• 96" (FT-HVC-OMEN-96 / FT-HVC-OMEN-96-4): on the FAI sheet at MAP. Not on the current official FireTech OMEN table (table stops at 84"). Watts/amps for 96" are not published — call to confirm electrical before spec. Do not copy 84" electricals onto 96".

3 illuminated sides standard; 4 sides available. Mount per apparatus OEM or HiViz mounting solutions.
