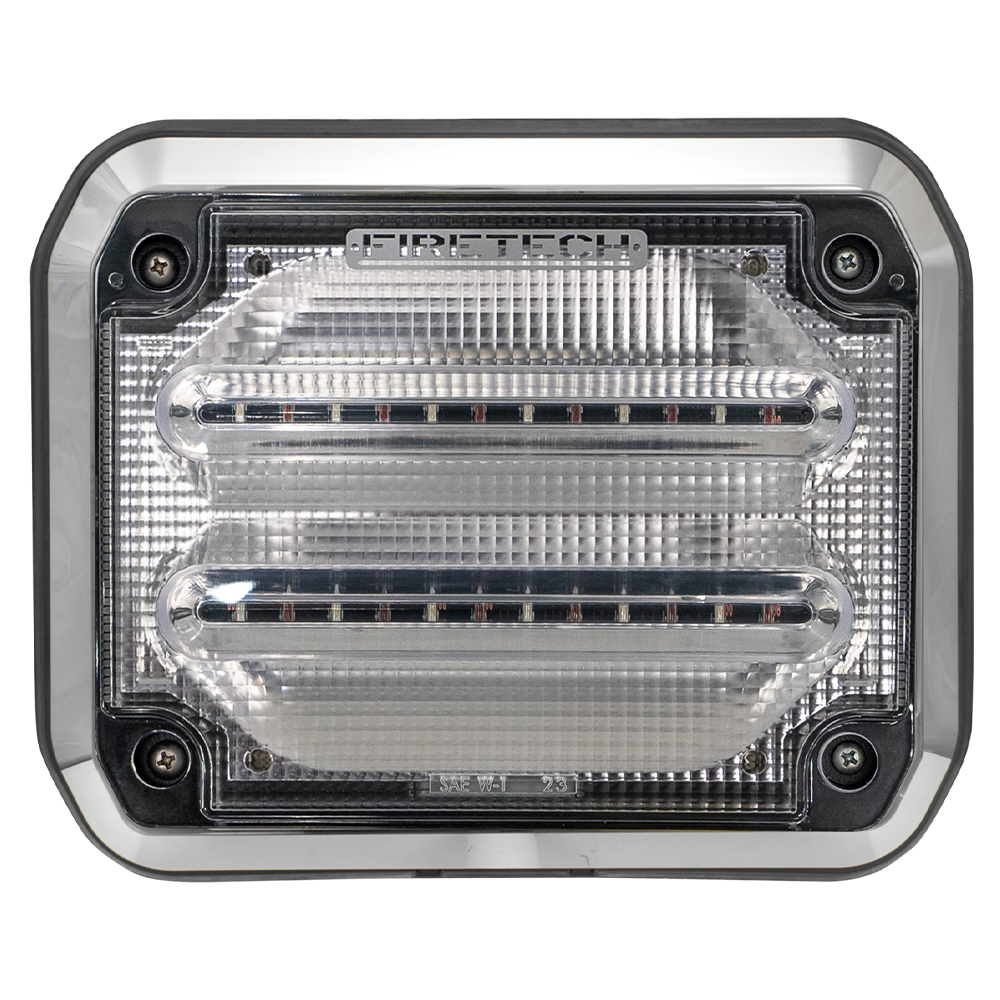

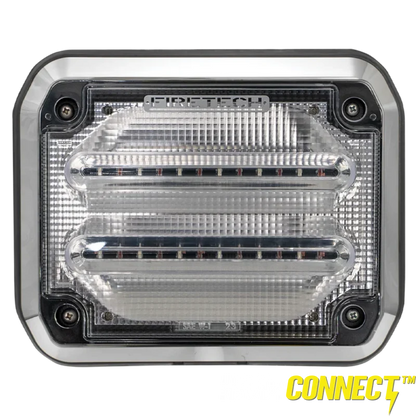

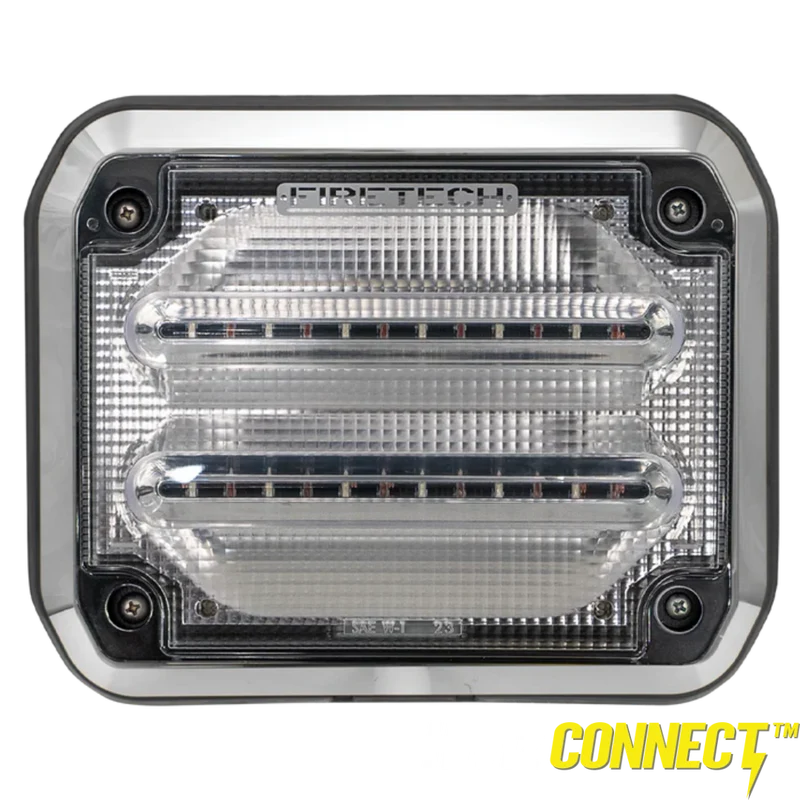

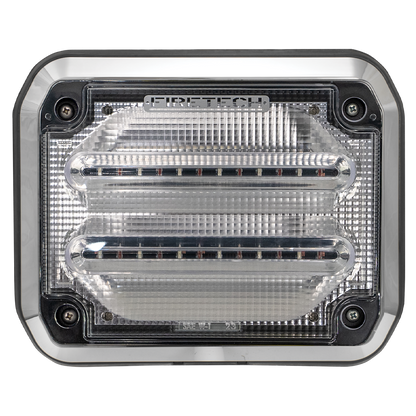

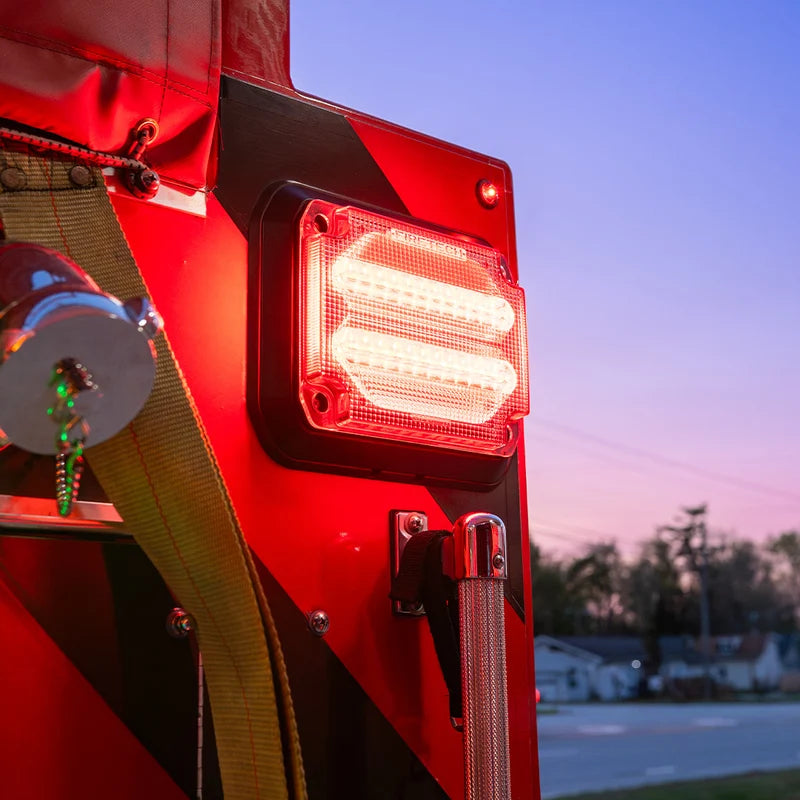

FireTech HVC Guardian Warning Light

FireTech HVC Guardian® Warning Light — surface-mount HiViz Connect warning light with full-size aluminum heat sink and lens that never contacts mounting hardware. Forward + side-firing LEDs for multi-angle visibility.

• Dimensions: 10.6" × 1.9" × 8.7" | Weight 4.4 lbs
• Power: 11–16V DC | Max 2.12A @12.8V | Peak 42.6W | IP68/69K | 21 GRMS
• Features: Crack-free corner design; precision linear optics; Nitto TEMISH vent; wireless/app configuration; side-firing LEDs; unlimited flash patterns via HiViz Connect
• Colors: Red, White, Blue, Amber, and dual-color combinations (R/B, R/W, R/A, R/G, B/W, A/W)
• Mount: Surface mount; bezels available under Accessories
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Instructions / Downloads:

• HVC Guardian Instruction Manual (PDF)
• HVC Warning Light System Manual (PDF)

CAN / J1939 network: HVC is FireTech’s own CAN/LIN HiViz Connect architecture. Official manuals name a J1939 CAN Network, twisted-pair J1939 CAN automotive cable, and CAN/LIN HVC architecture with zone modules. HVC Guardian perimeter lights tie to the LIN network in their zone; OMEN / HVC zone modules sit on the CAN backbone. See the HVC Warning Light System Instruction Manual.

Pierce Command Zone: “The HiViz Connect lighting system speaks directly to the Pierce Command Zone multiplex system, no extra modules, no complicated wiring.” (FireTech HiViz Connect + Pierce Command Zone)

Not a generic OEM CAN tap: Official docs do not authorize splicing HVC onto an arbitrary Ford / Chevy / International / Spartan / Rosenbauer / generic chassis J1939. Install as FireTech’s CAN/LIN HVC system (or the named Pierce Command Zone integration).
