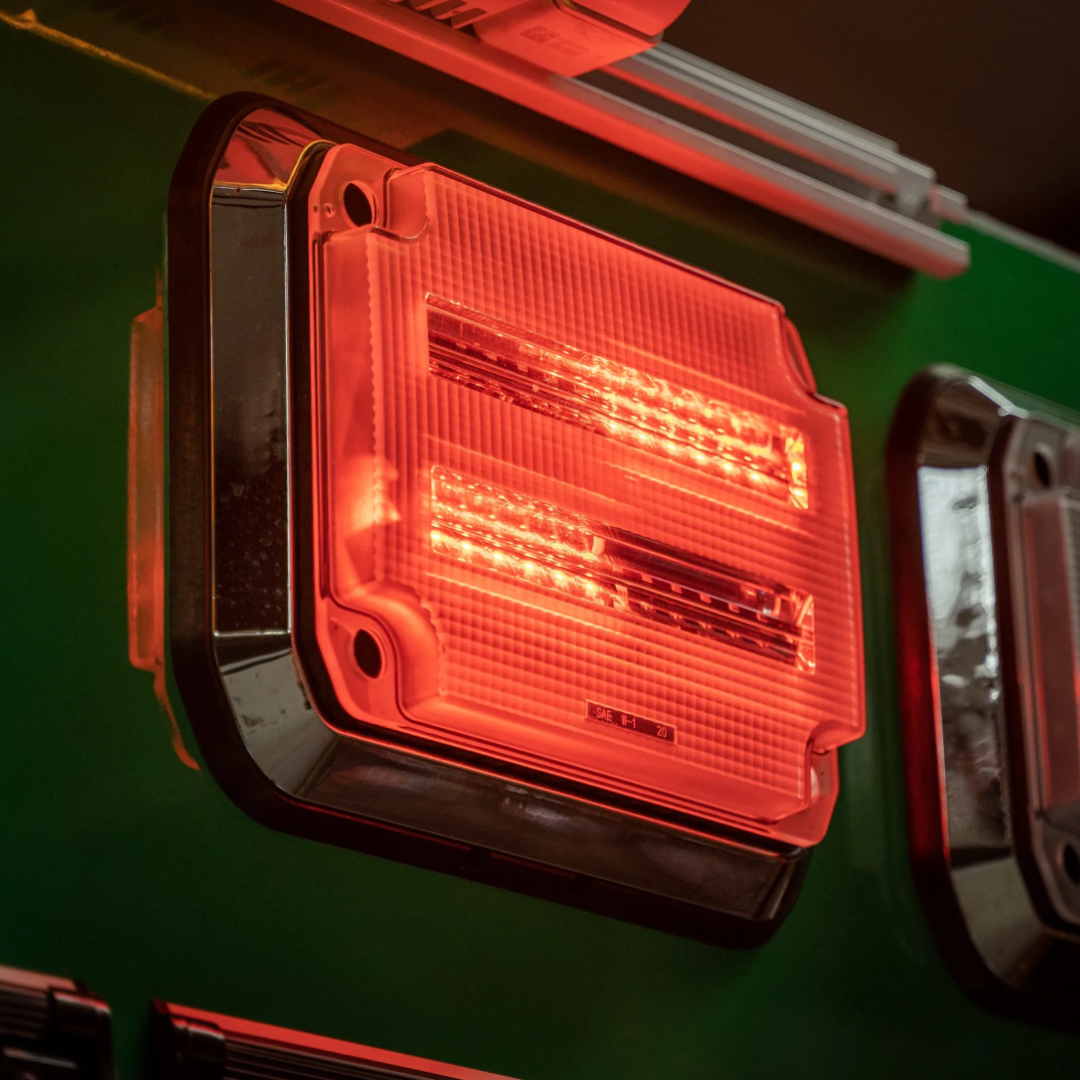

FireTech Guardian Surface Mount Warning Light

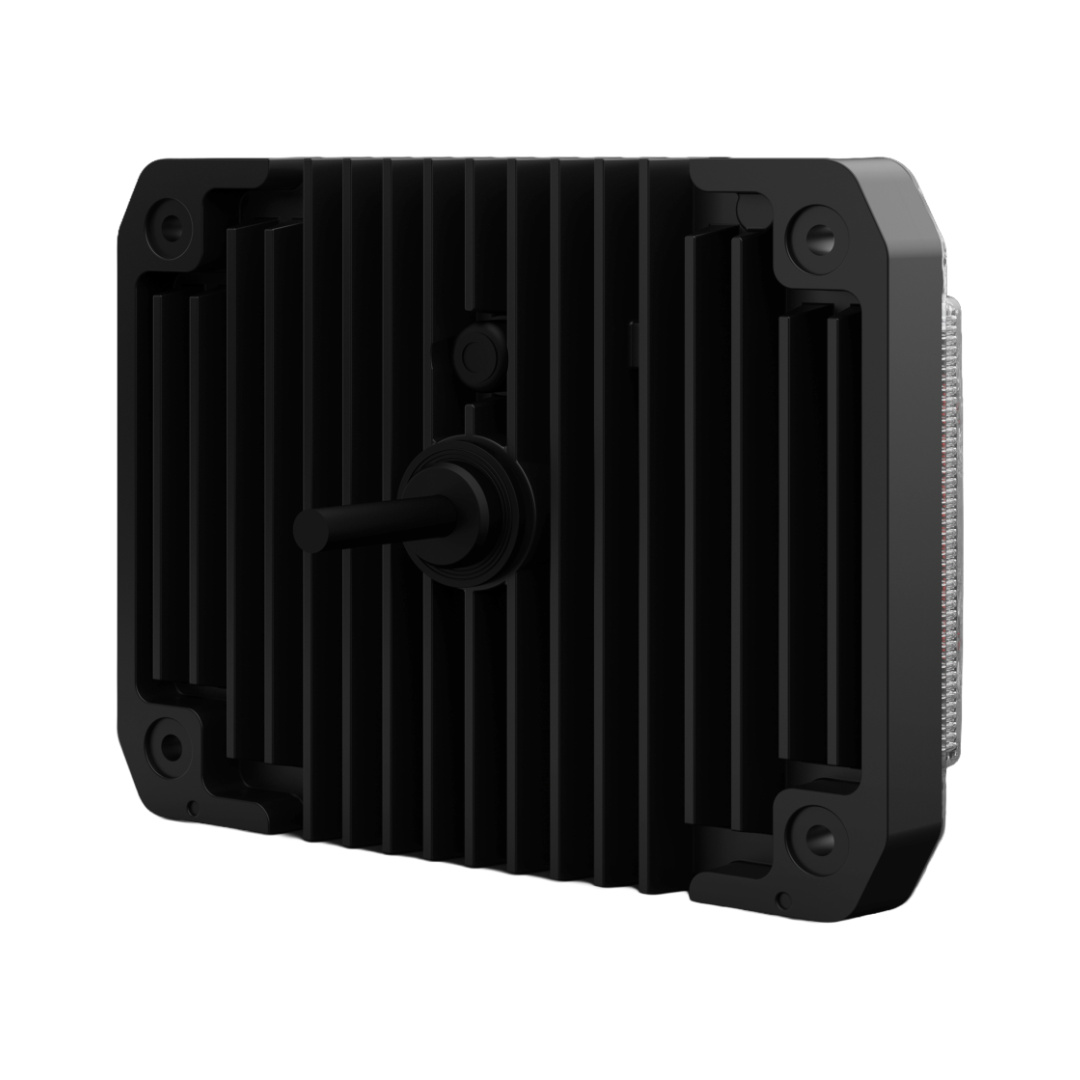

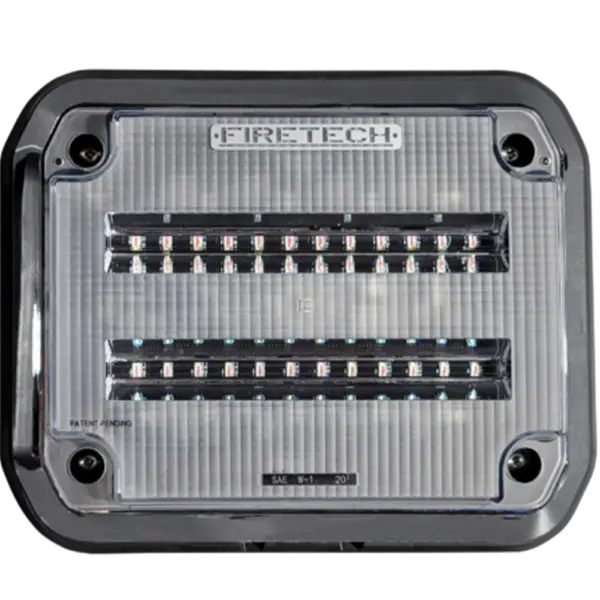

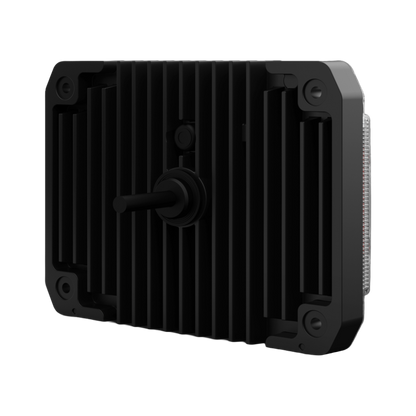

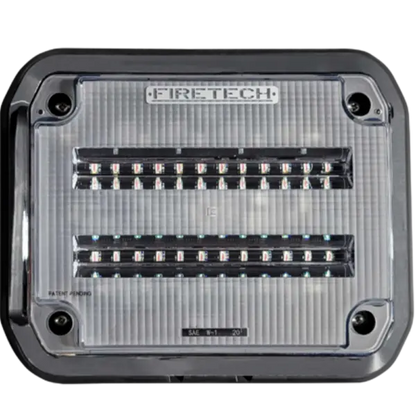

FireTech Guardian Surface Mount Warning Light — full-size aluminum heat sink with lens that never contacts mounting hardware. Forward-facing LEDs with chrome reflectors and optical collimators; side-firing LEDs for off-angle visibility on windy roads and angled approaches.

• Dimensions: 8.65" × 10.62" × 1.91"
• Weight: 4.4 lbs
• Power: 9–32V DC | SAE J595 Class 1 | SAE J578 | sealed housing
• Draw: 1.2A avg / 3.1A peak @12V DC | 16W / 40W
• Features: Crack-free corner design; Nitto TEMISH moisture vent; high-performance aluminum heat sink
• Colors: Red, Blue, Amber, White and dual-color combinations
• Mount: Surface; chrome/black bezels and retrofit gasket under Accessories
• Wiring: Black=Ground, Red=Power, White=Pattern A/B, Green=Day/Night, Yellow=Sync
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Instructions / Downloads:

• Guardian / Guardian Jr Instruction Manual (PDF)
• Guardian Warning Light Instruction Manual (PDF)
