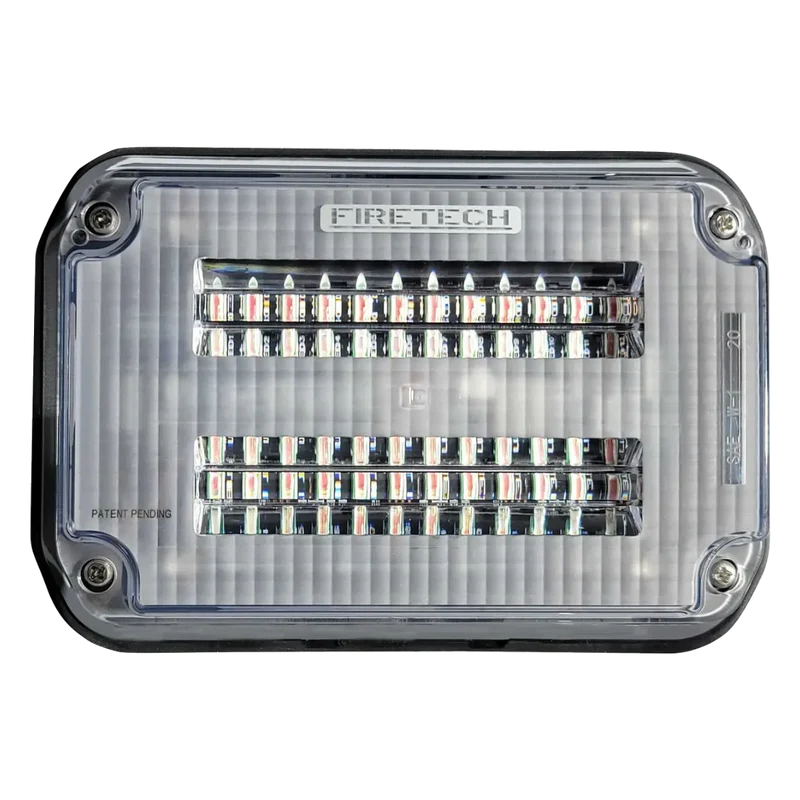

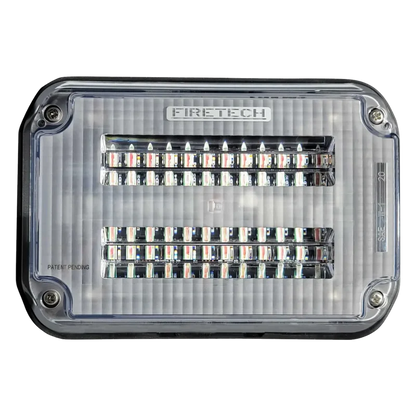

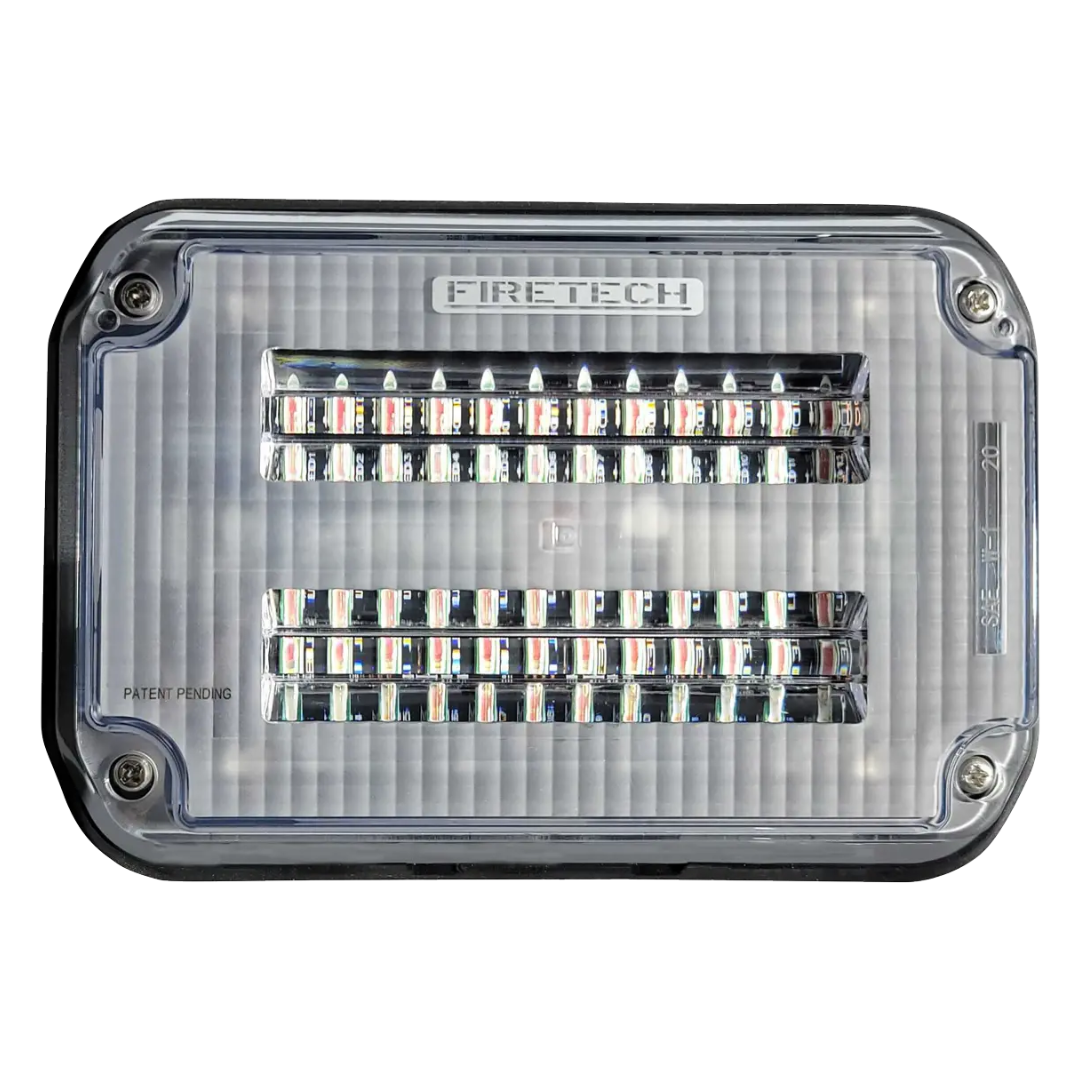

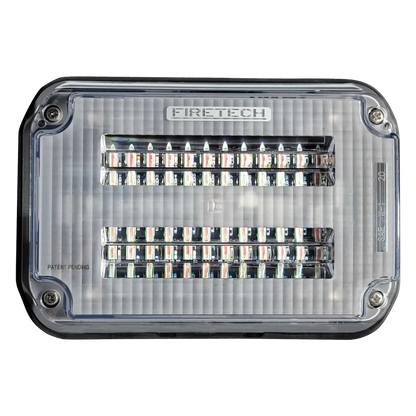

FireTech Guardian Jr Surface Mount Warning Light

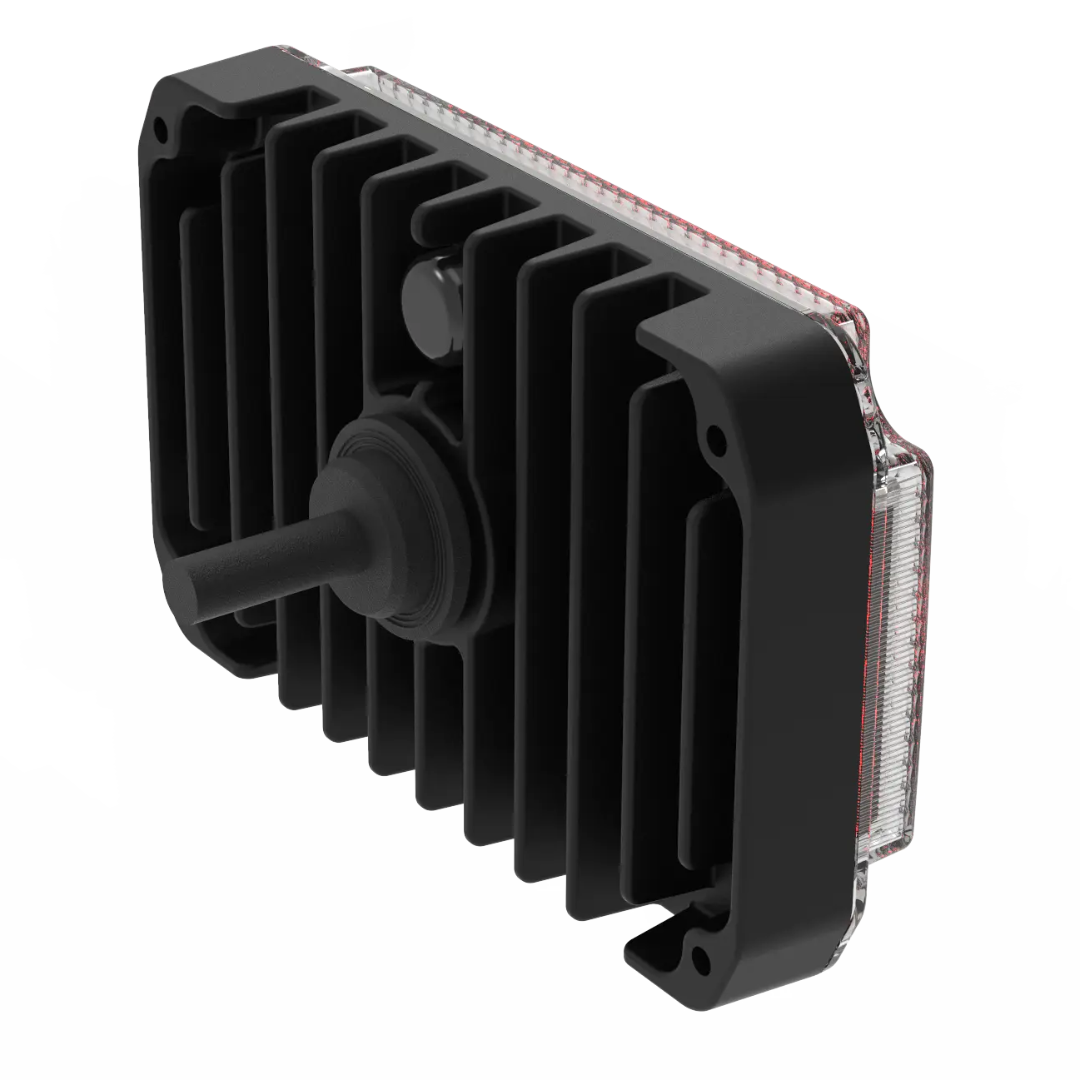

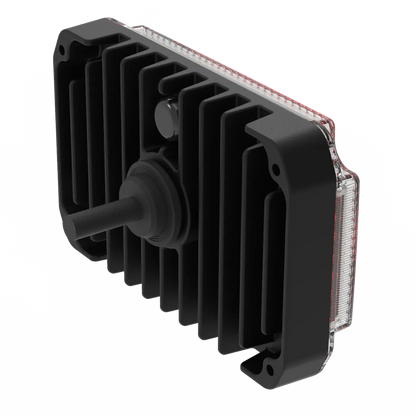

FireTech Guardian Jr Surface Mount Warning Light — compact Guardian-series warning light. Same design principles (heat sink, lens not contacting hardware) in a smaller footprint for perimeter and corner applications.

• Dimensions: 5.11" × 7.48" × 1.63"
• Weight: 1.7 lbs
• Power: 9–32V DC | 1.2A avg / 3.1A peak @12V DC | 16W / 40W
• Certifications: SAE J595; SAE J578
• Colors: Single and dual-color options
• Mount: Surface; Jr chrome/black bezels under Accessories
• Wiring: Black=Ground, Red=Power, White=Pattern, Green=Day/Night, Yellow=Sync
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Instructions / Downloads:

• Guardian / Guardian Jr Instruction Manual (PDF)
• Guardian Warning Light Instruction Manual (PDF)
