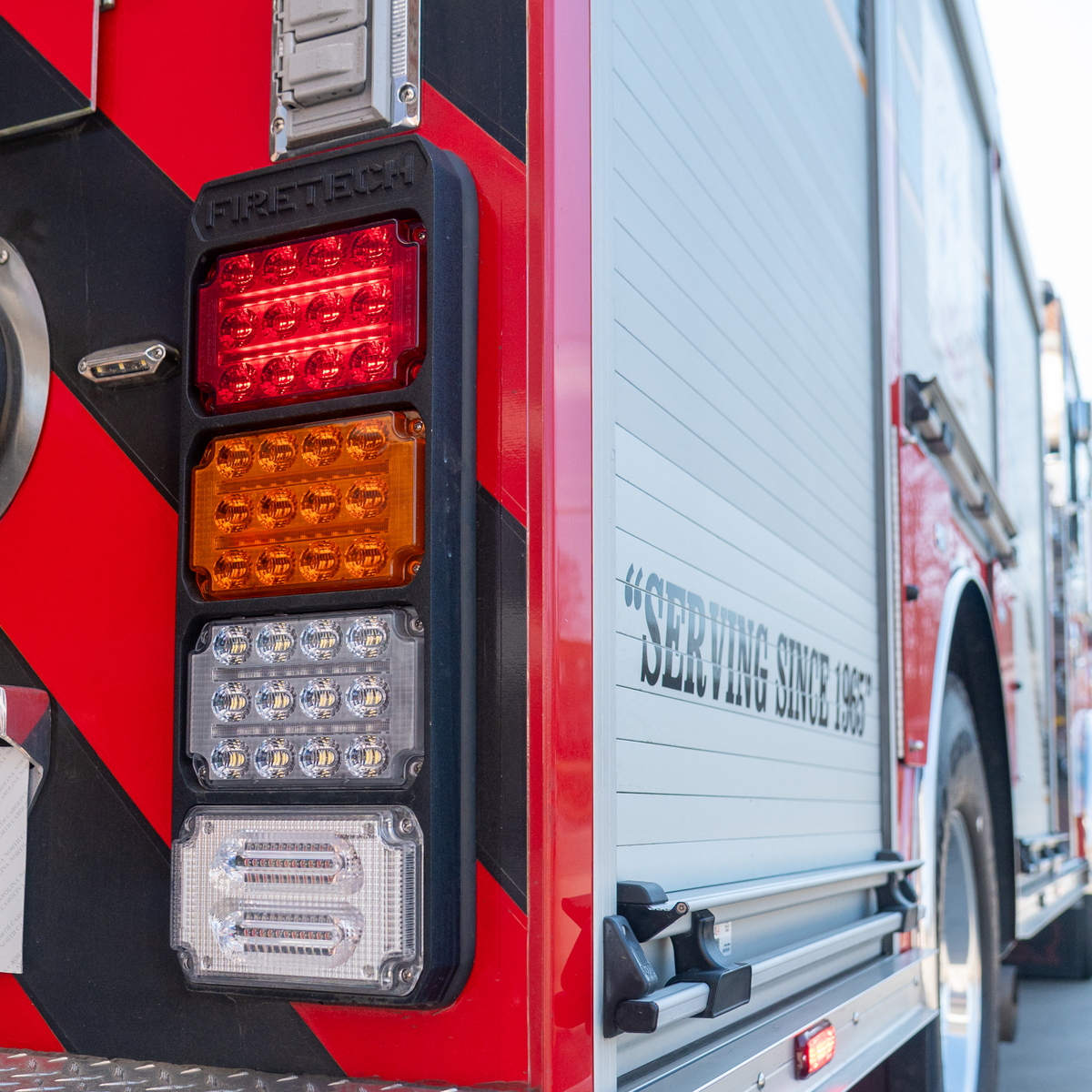

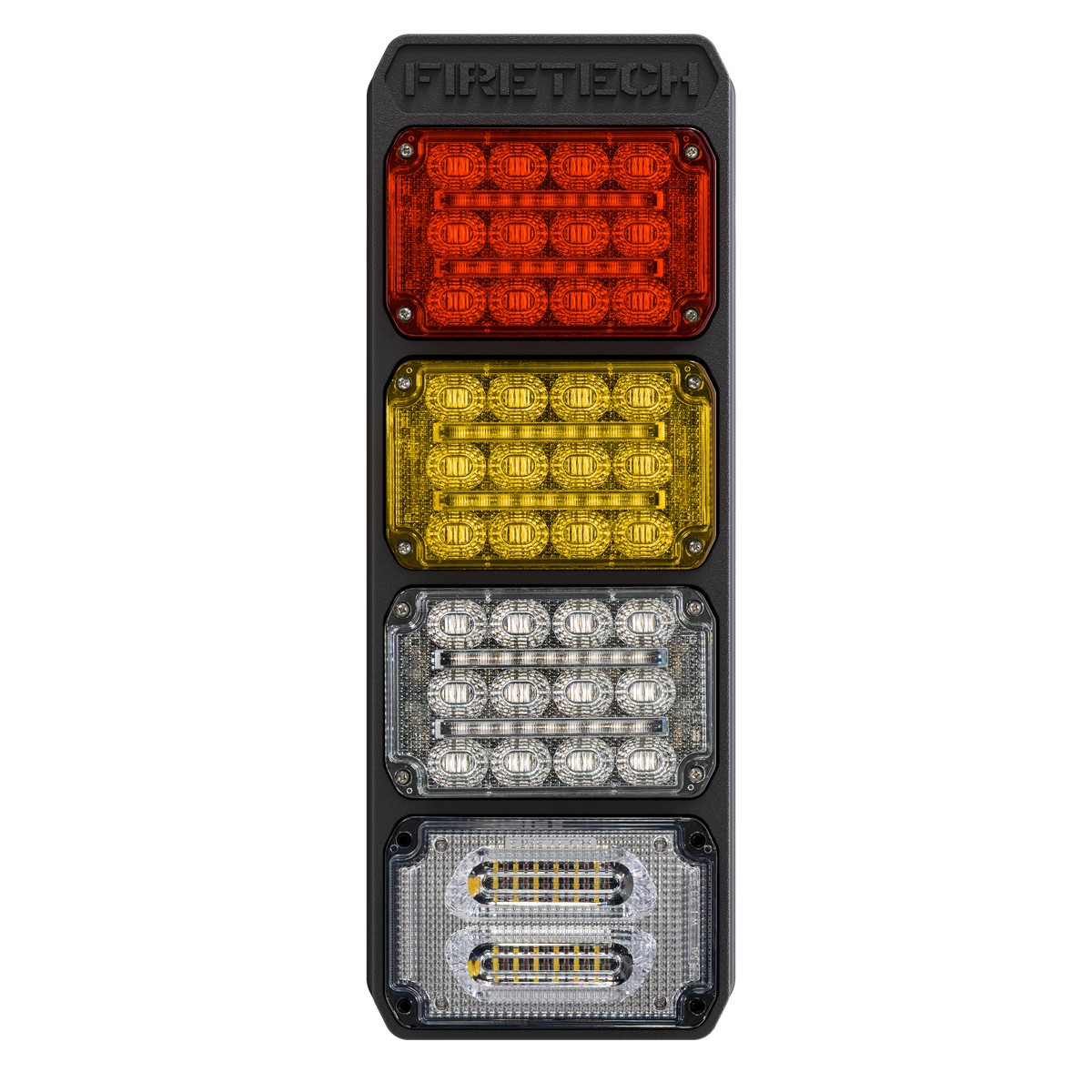

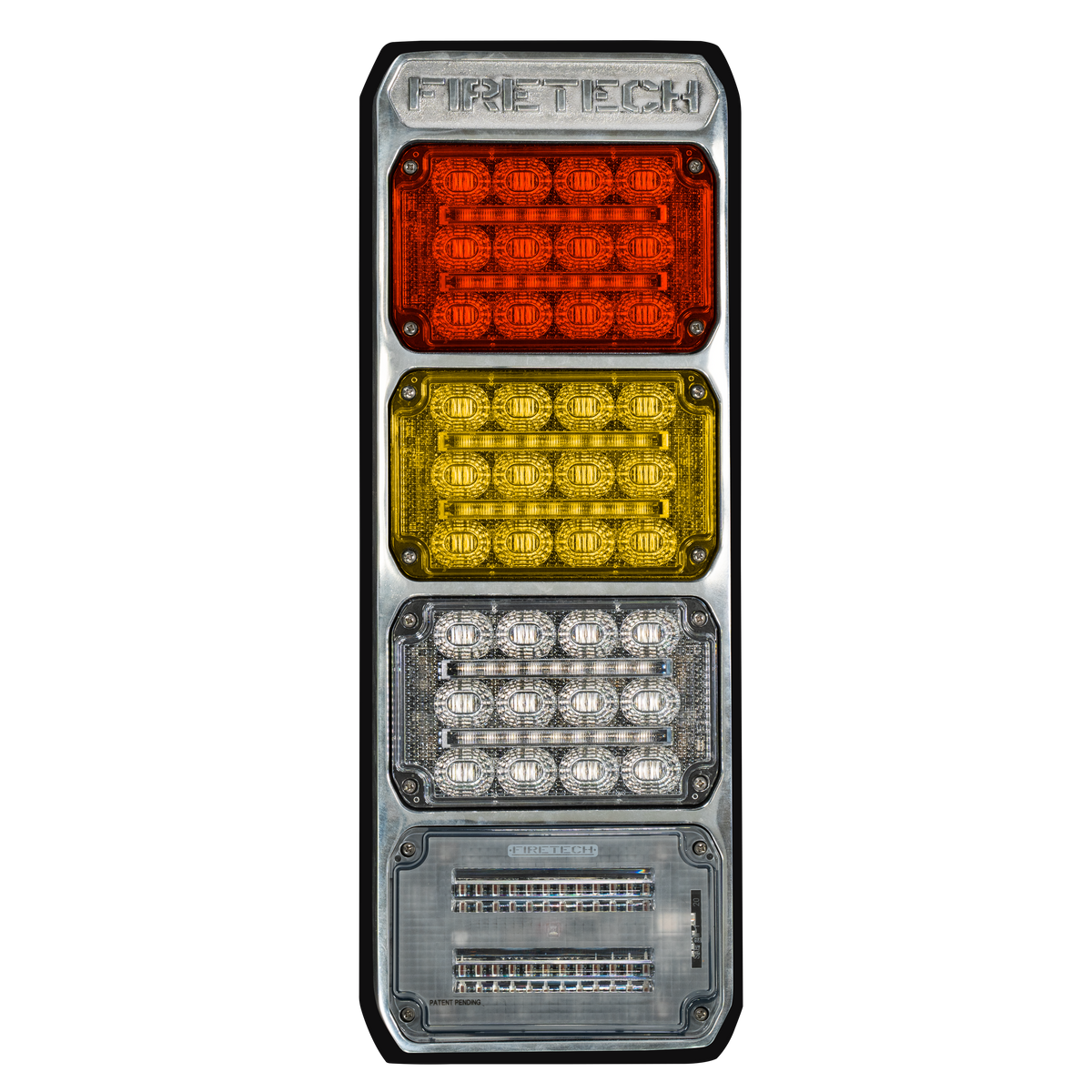

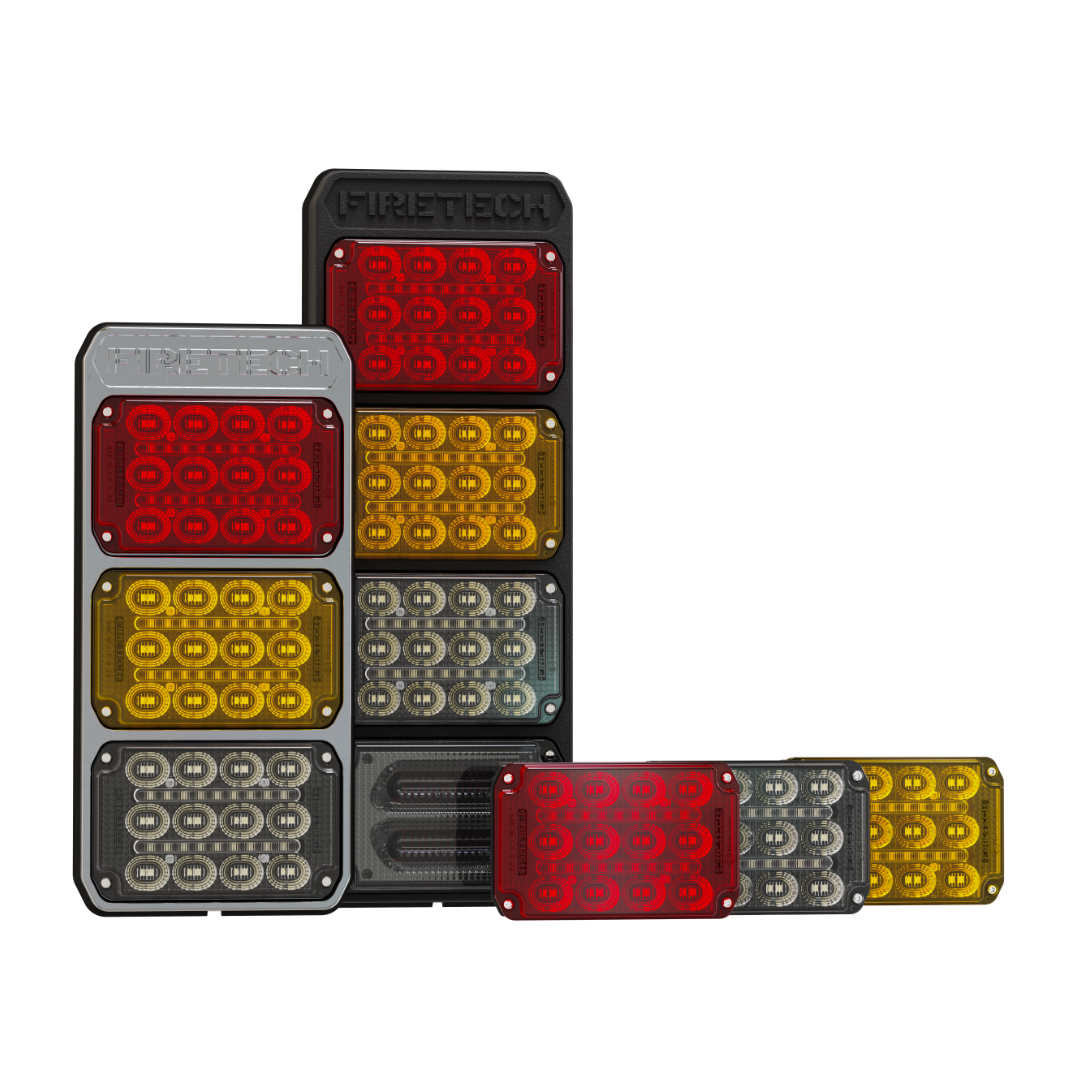

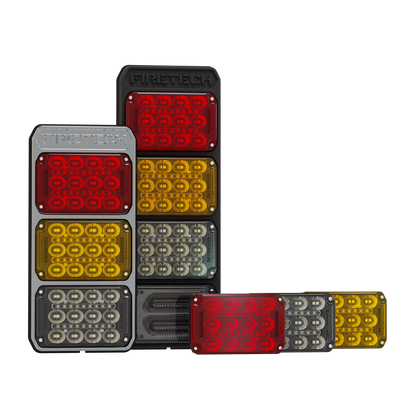

FireTech Guardian Jr Quad Tail Light Kit

FireTech Guardian Jr Quad Tail Light Kit — two quad housings (Stop/Tail + Turn + Backup + optional Warning). Housing 20.2" × 7.5" × 2.3".

• Warning color options: Red, Amber, or Blue in the fourth position
• HVC Smart versions: HVC Guardian Jr warning module in the fourth position for Connect network — see the HVC Smart Quad page for those SKUs
• Finishes: Chrome or Black housings
• Power: 9–32V DC | IP67/69K | ISO 16750-3
• Stop/Tail: 0.45A @12.8V | 5.8W
• Backup: 0.23A @12.8V | 2.9W
• Turn: 0.26A @12.8V | 6.7W

Instructions / Downloads:

• Guardian / Guardian Jr Instruction Manual (PDF)

Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy
