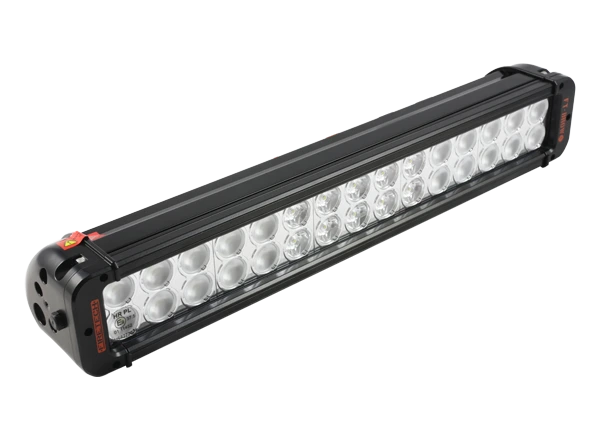

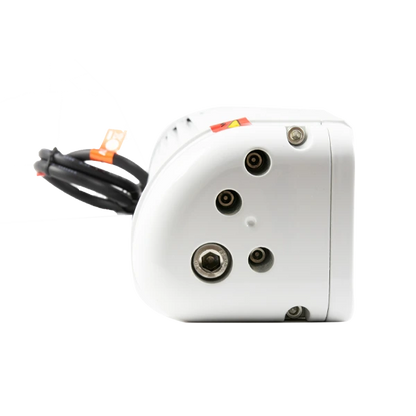

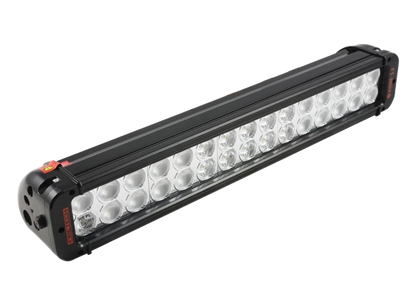

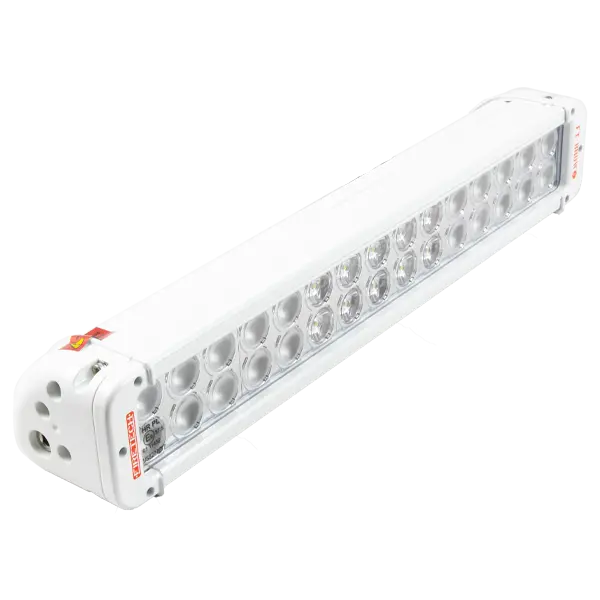

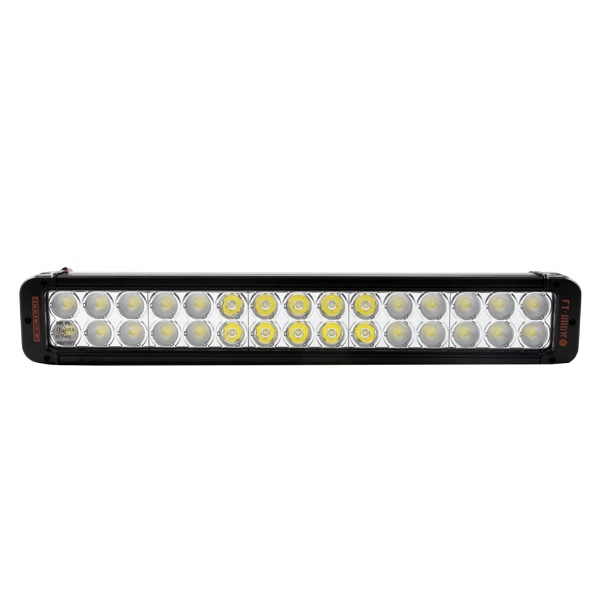

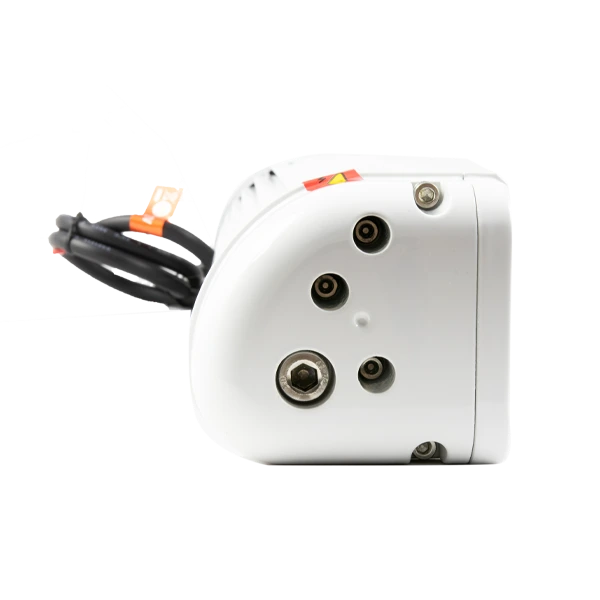

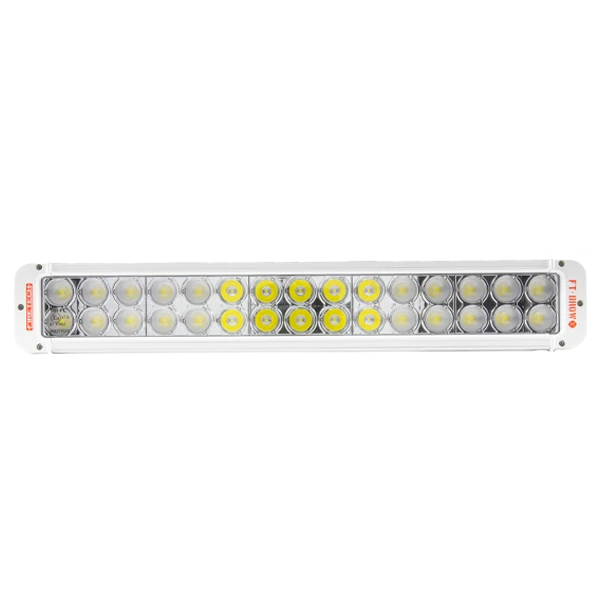

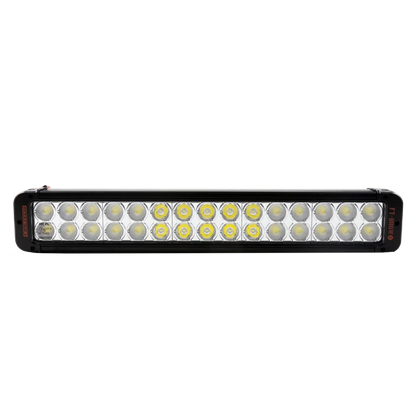

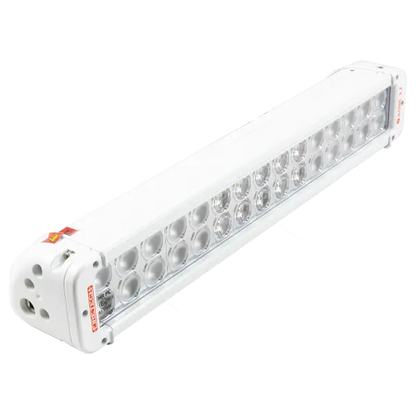

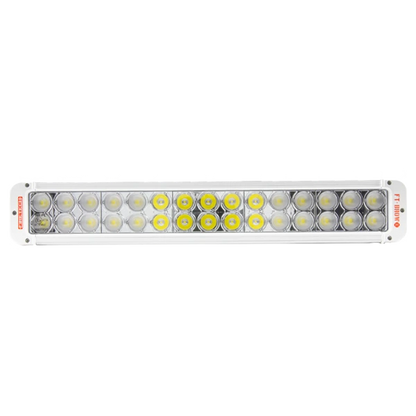

FireTech Double Stack MiniBrow® Light

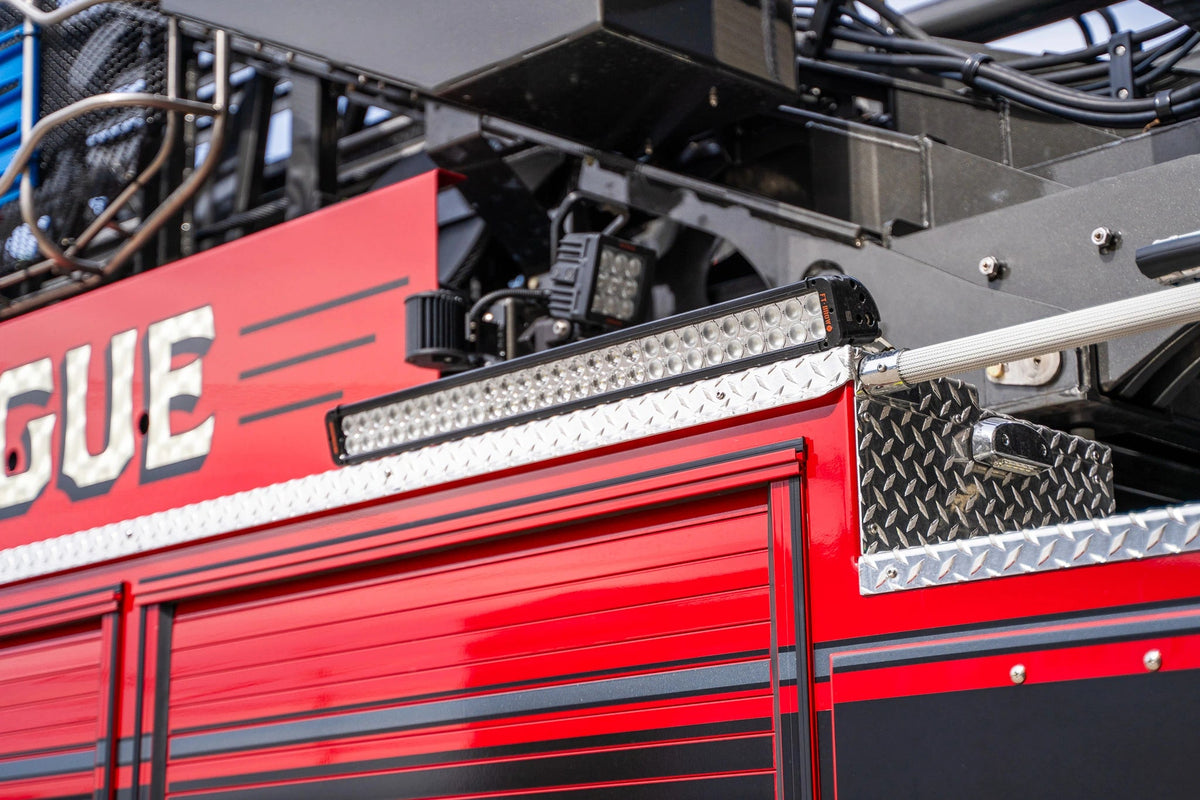

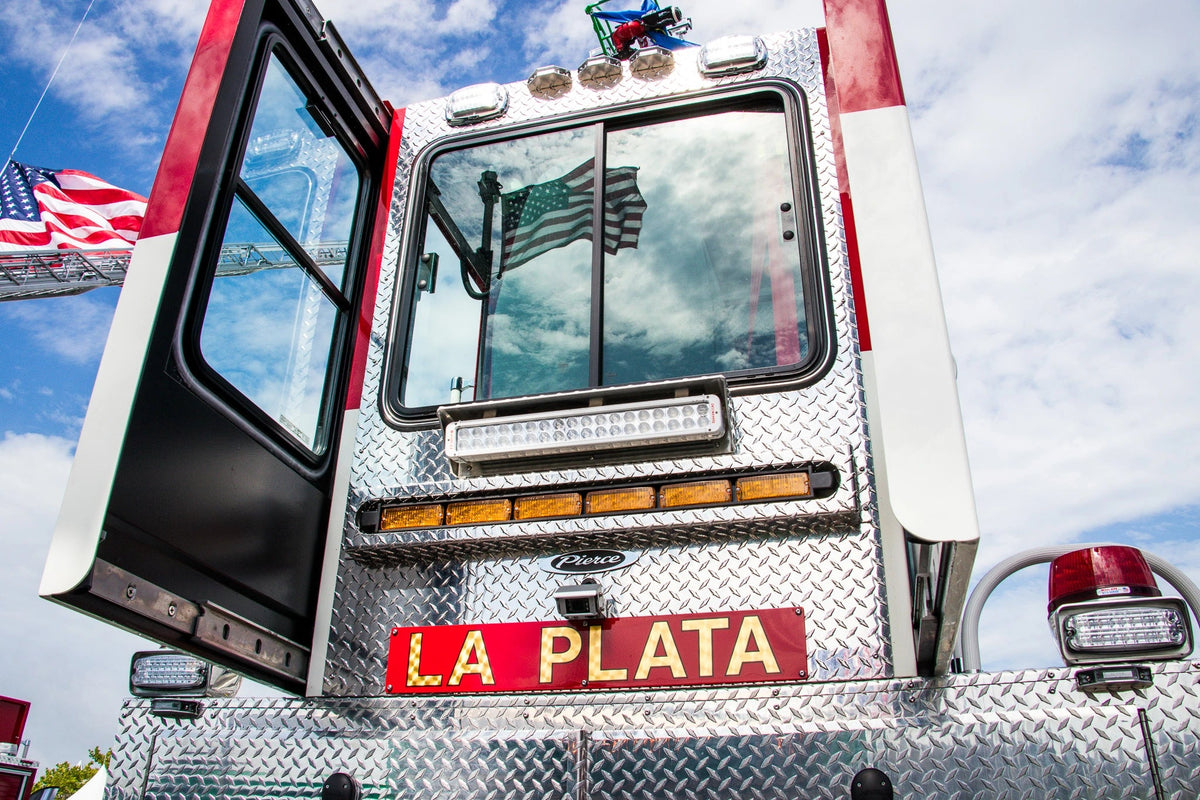

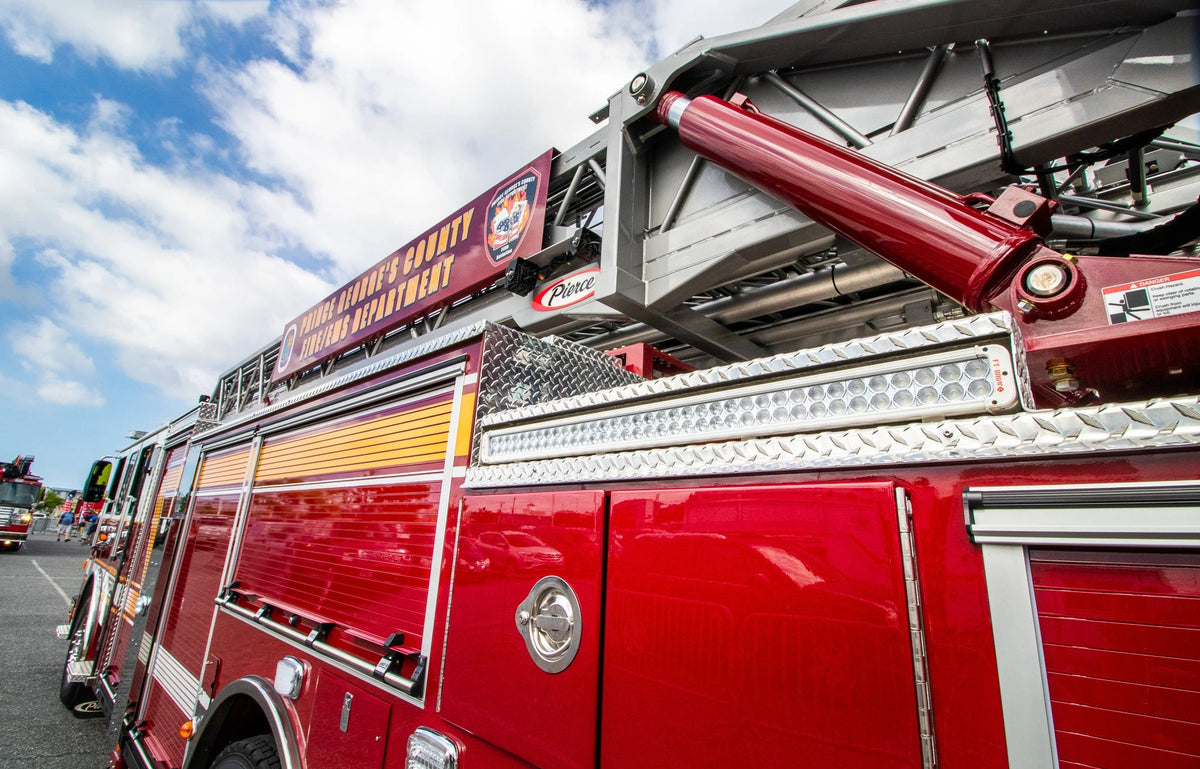

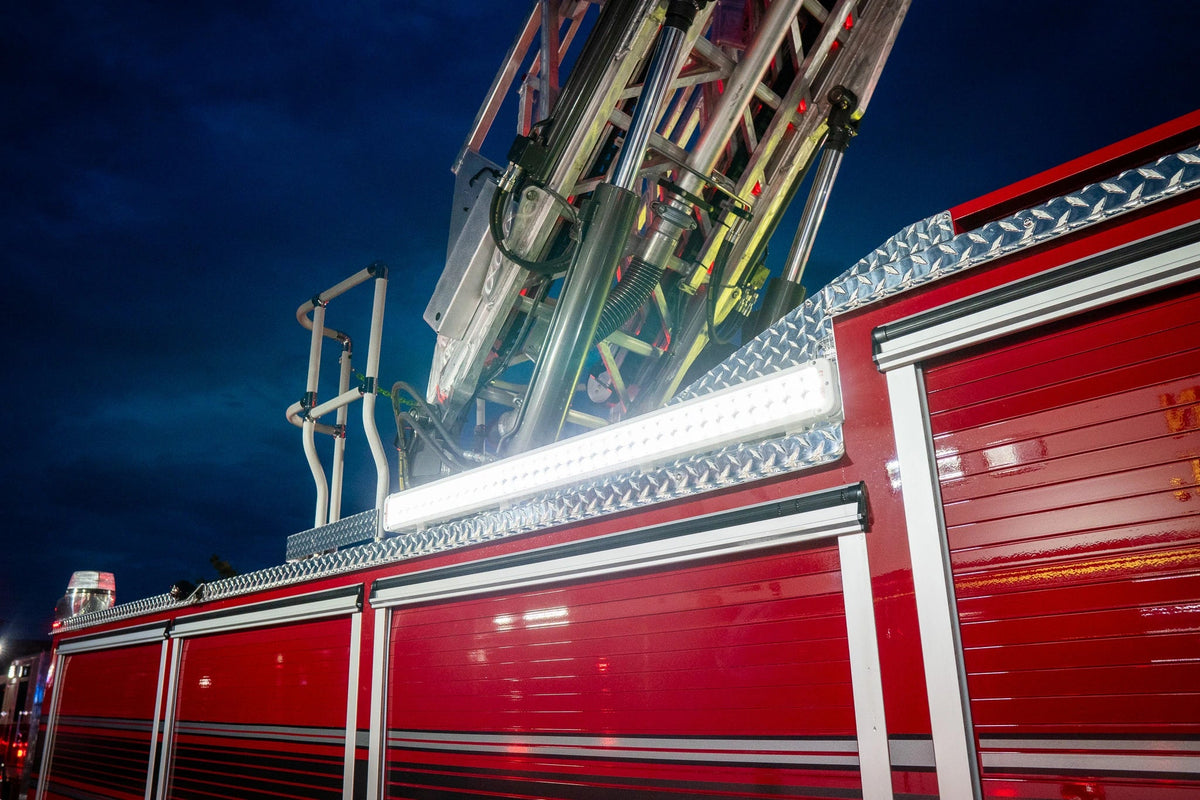

FireTech Double Stack MiniBrow® — two-row MiniBrow for higher scene output on cab or body.

• Power: 9–32V DC | IP67/69K | 21 GRMS
• Optics: Spot/flood combinations per variant

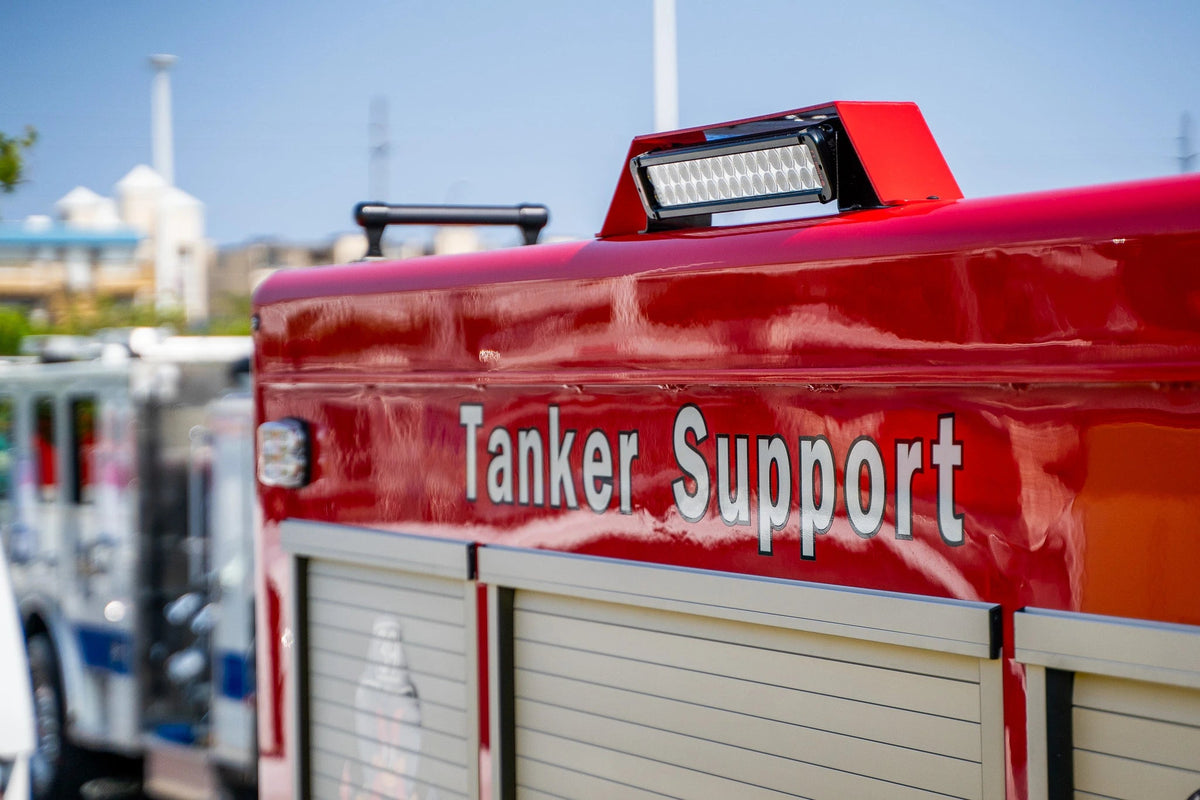

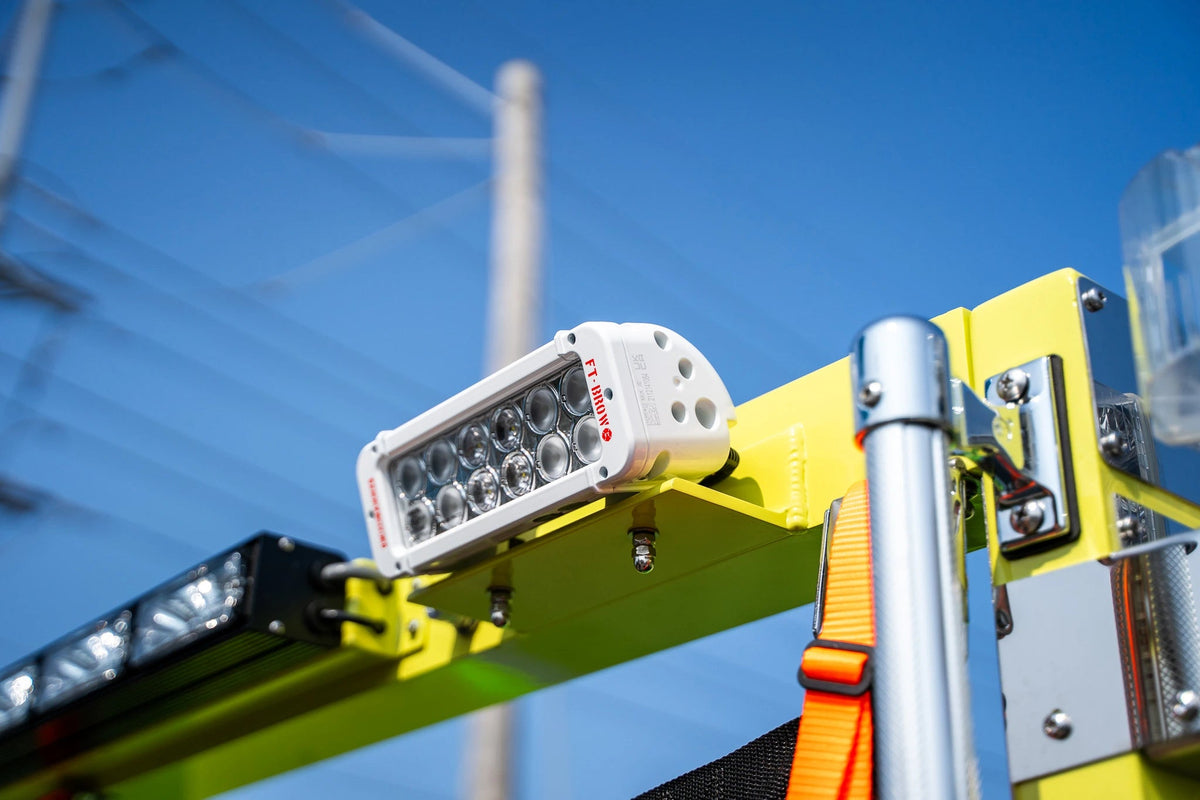

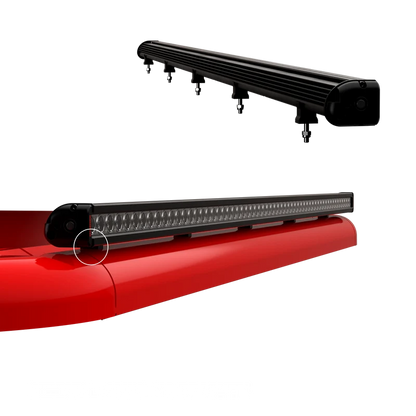

• Mounting: Same family as Single Stack — cab, pedestal, L-foot, J-foot (to OMEN)
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Official specifications (double-stack MiniBrow® family, all models: 9–32V DC, IP67/69K, 21 GRMS)

• 12 LED (FT-MB-2.6-FT-B / FT-MB-2.6-F-W): 7.90" · 6,336 lm · 5A @12.8V · 60W
• 18 LED (FT-MB-2.9-F-*): 11.10" · 9,504 lm · 7.5A @12.8V · 90W
• 30 LED (FT-MB-2.15-FT-* / FT-MB-2.15-F-*): 17.50" · 15,840 lm · 12.5A @12.8V · 150W
• 36 LED (FT-MB-2.18-FT-*): 20.60" · 19,008 lm · 15A @12.8V · 180W
• 54 LED (FT-MB-2.27-FT-*): 30.20" · 28,512 lm · 22.5A @12.8V · 270W
• 72 LED (FT-MB-2.36-FT-*): 39.80" · 38,016 lm · 30A @12.8V · 360W
• 90 LED (FT-MB-2.45-FT-*): 49.37" · 47,520 lm · 37.5A @12.8V · 450W

Instructions / Downloads:

Double-Stack MiniBrow Instruction Manual (PDF)
