FireTech Compartment / Strip Lights

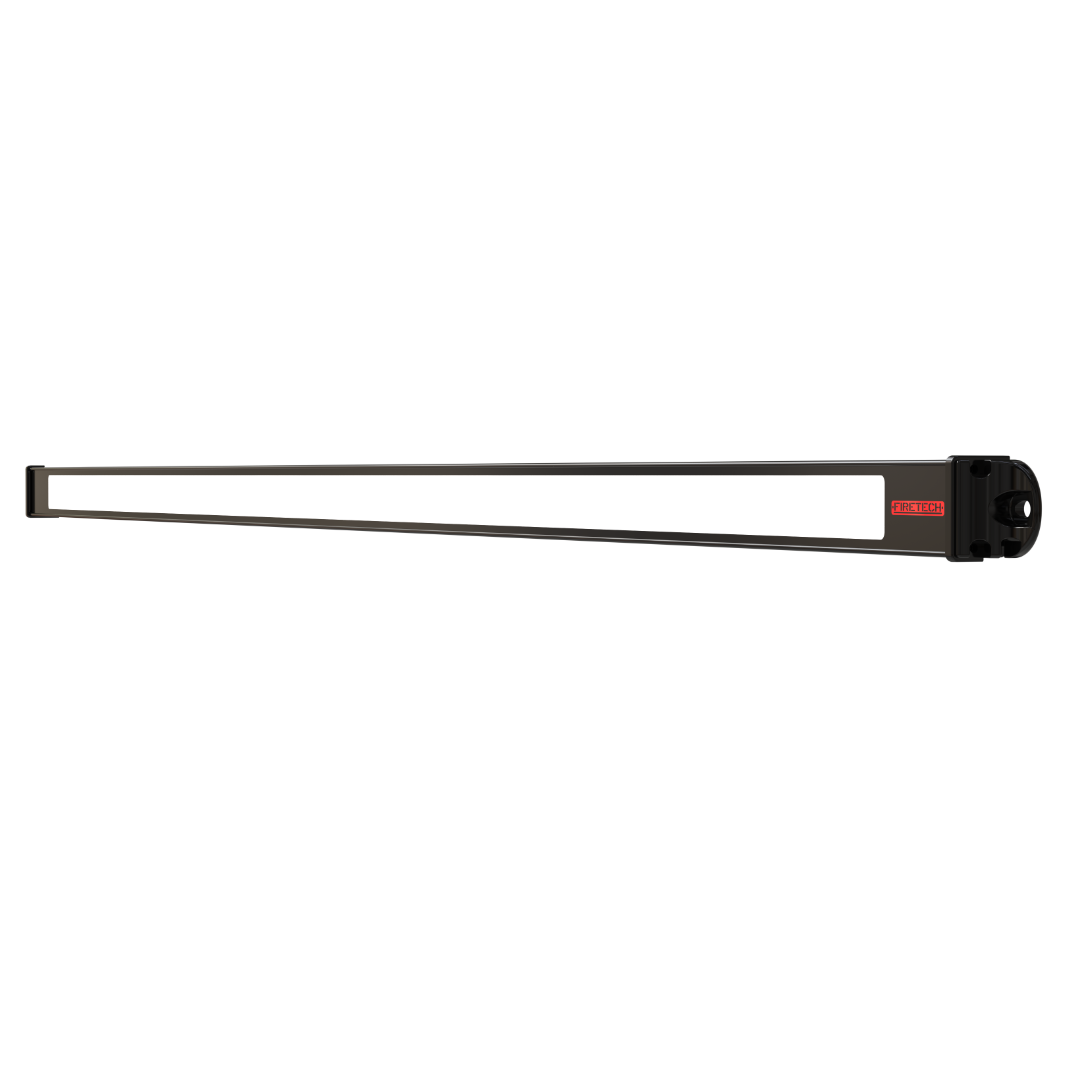

FireTech Compartment / Strip Lights — interior compartment and strip lighting for apparatus cabinets, steps, and work areas.

• Official HD lengths: 7.5", 12", 24", 36", 48" (FT-CU-HD*). FT-CU-P500 is on the FAI sheet but is not on the official HD compartment-lights table. Do not treat it as an HD row and do not mix it with undercarriage / Sub-Aqua electricals. No published lumens/amps for P500 on the official HD page — call if they need load.

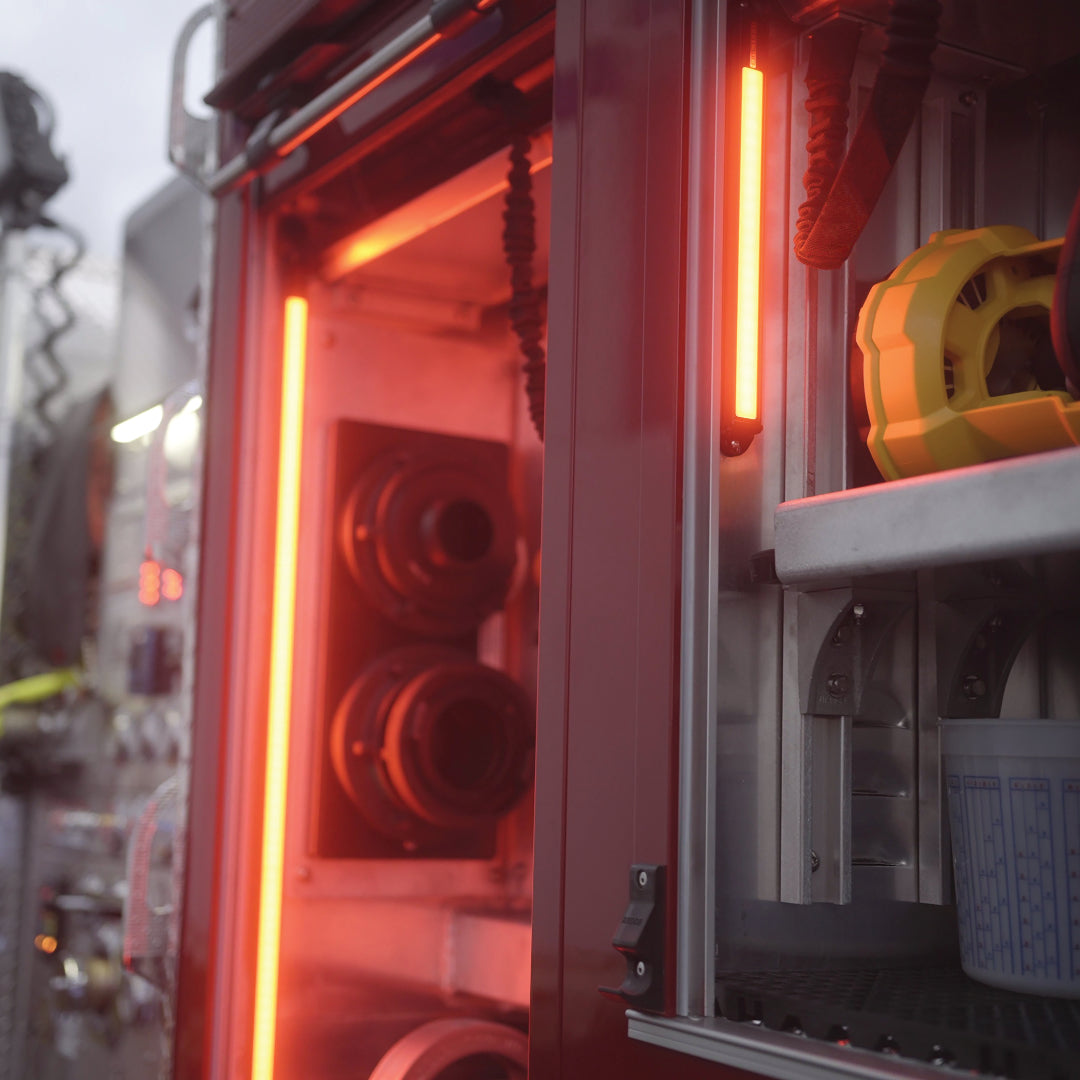

• Options: Standard white and red/white dual-color where listed
• Power: 9–32V DC | IP54 | low-profile strip form factor

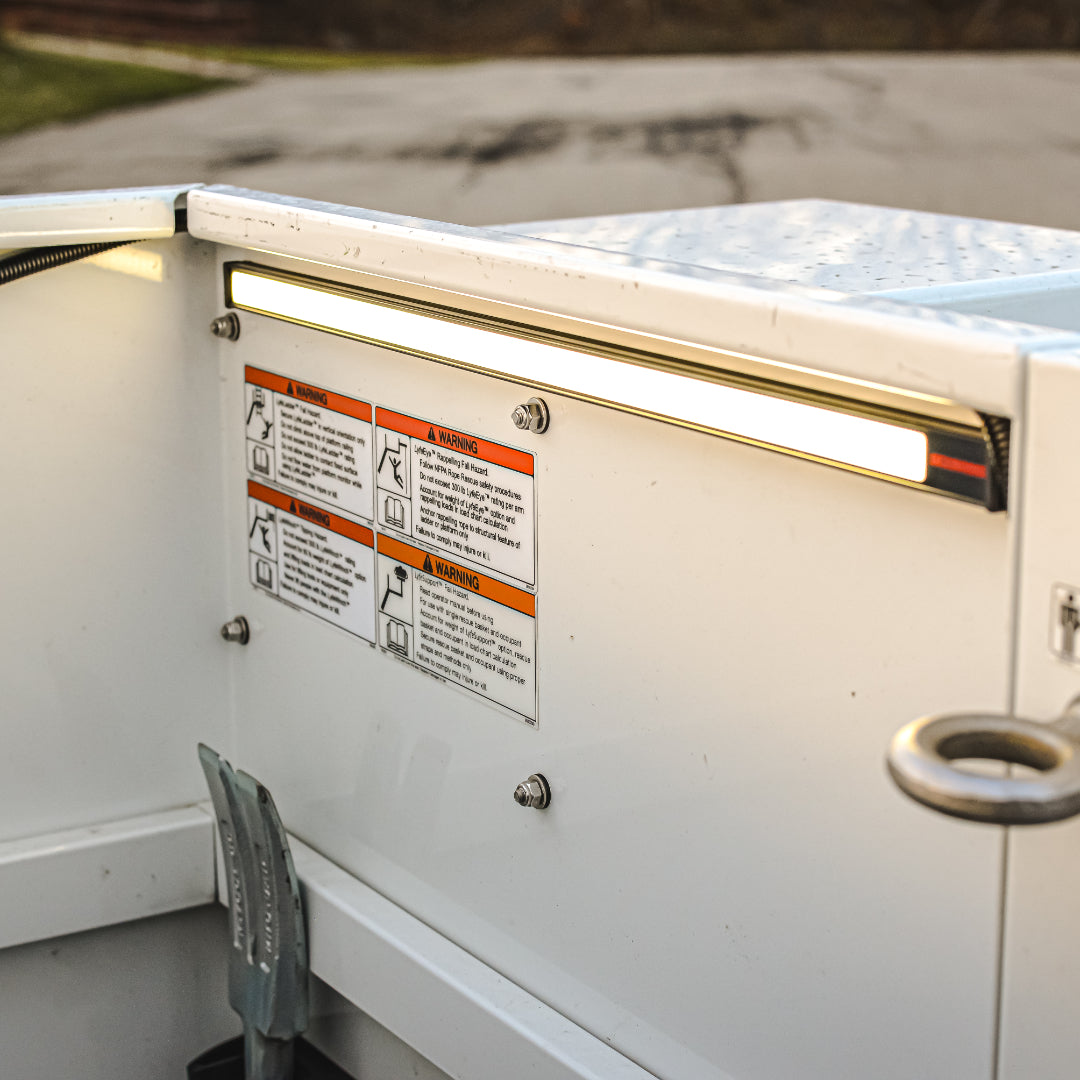

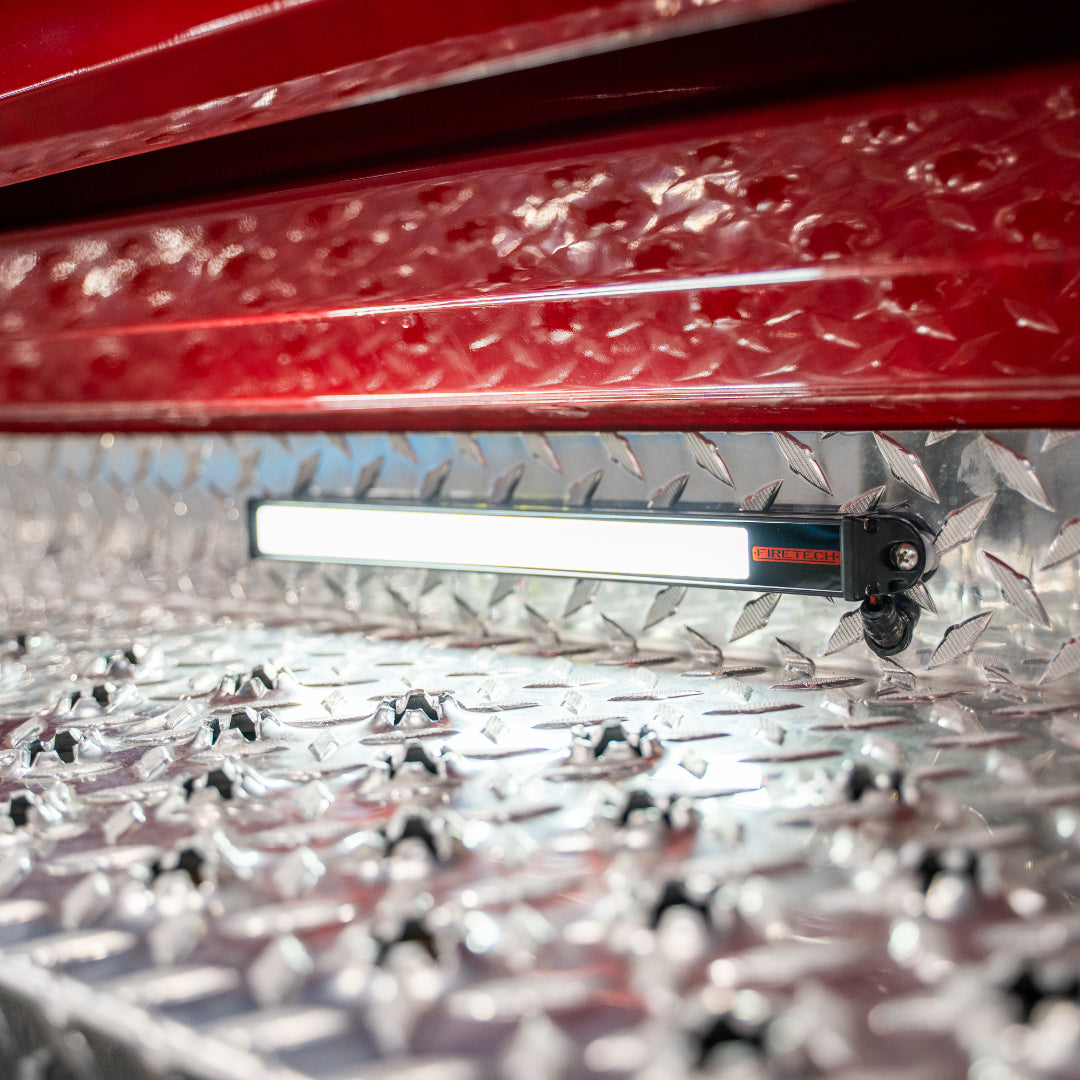

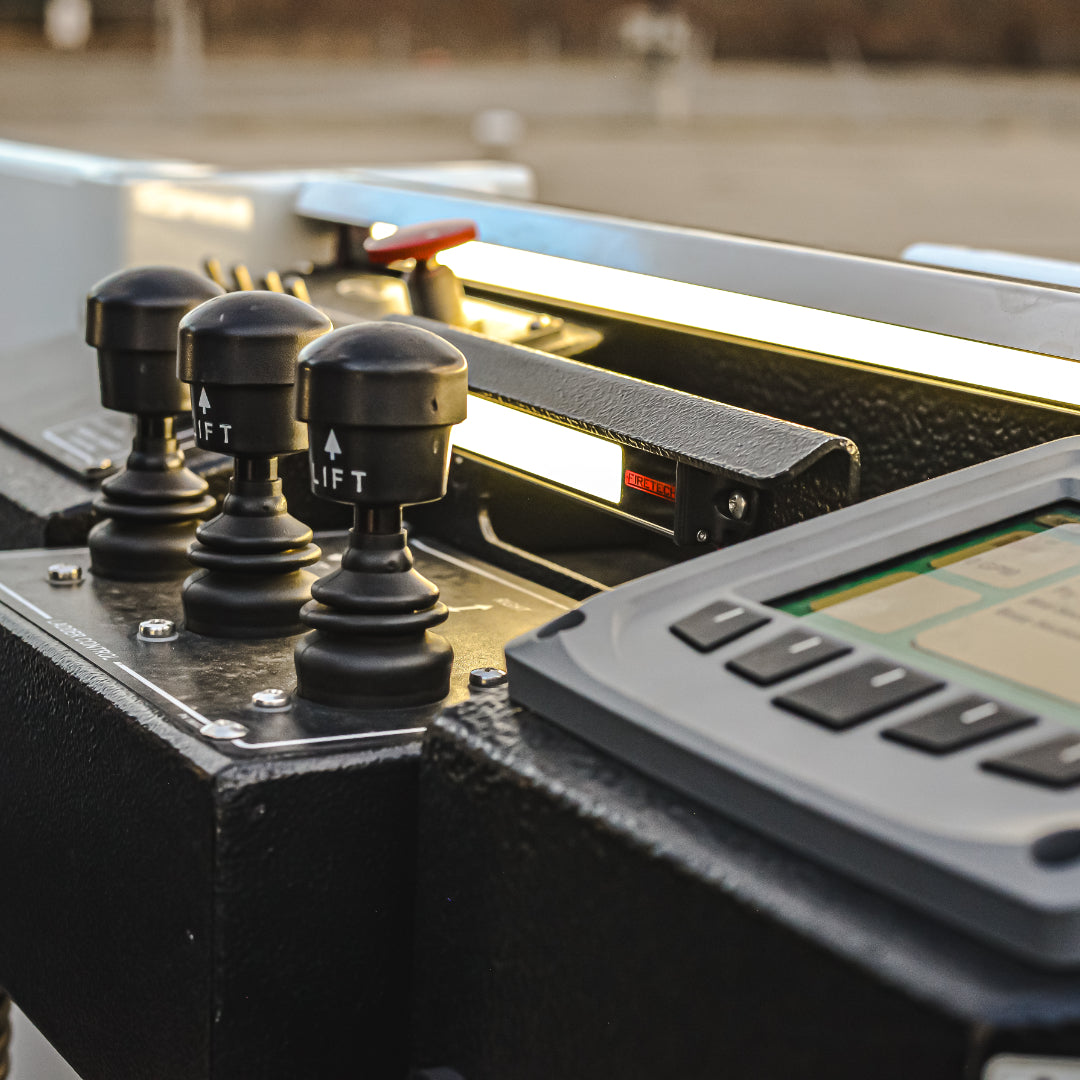

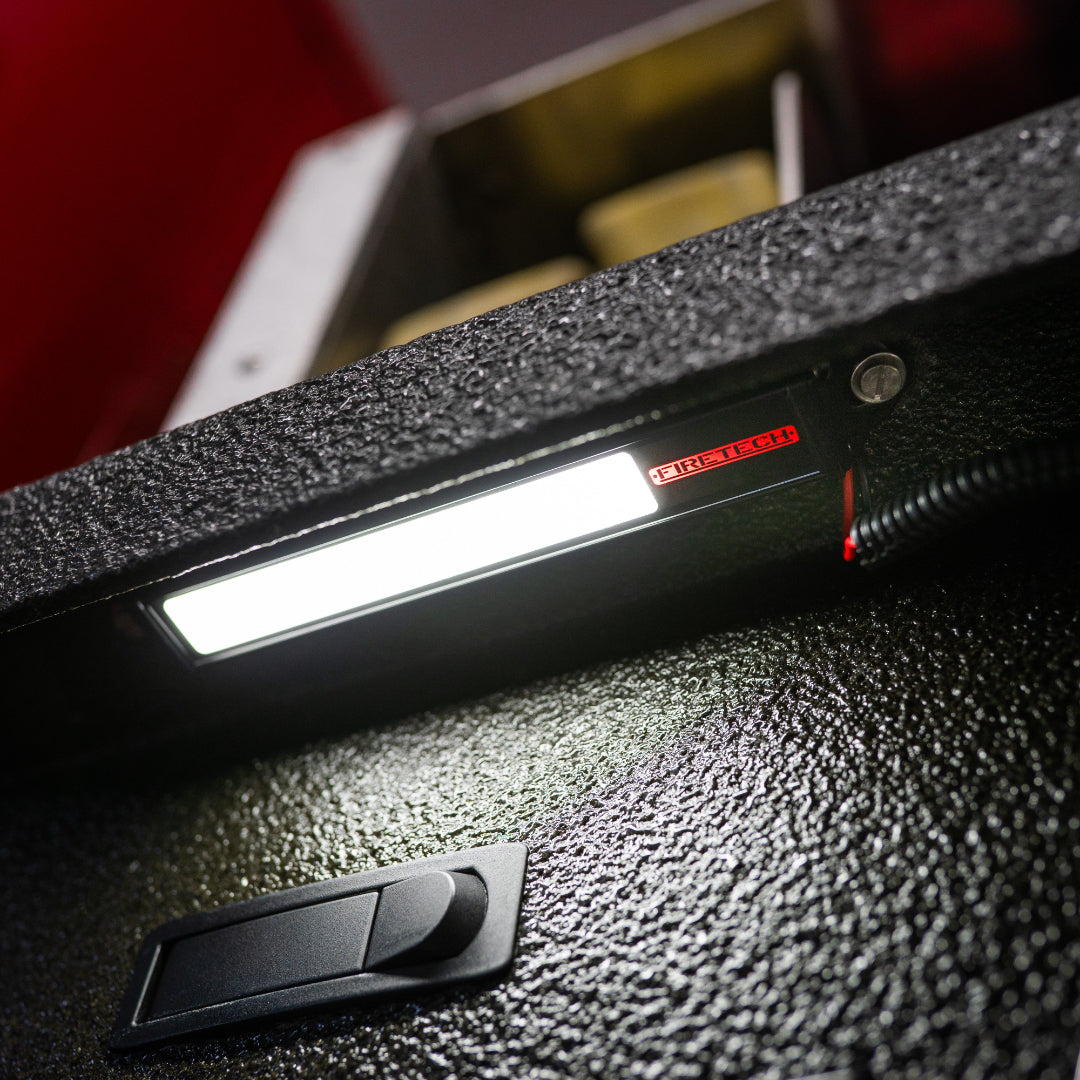

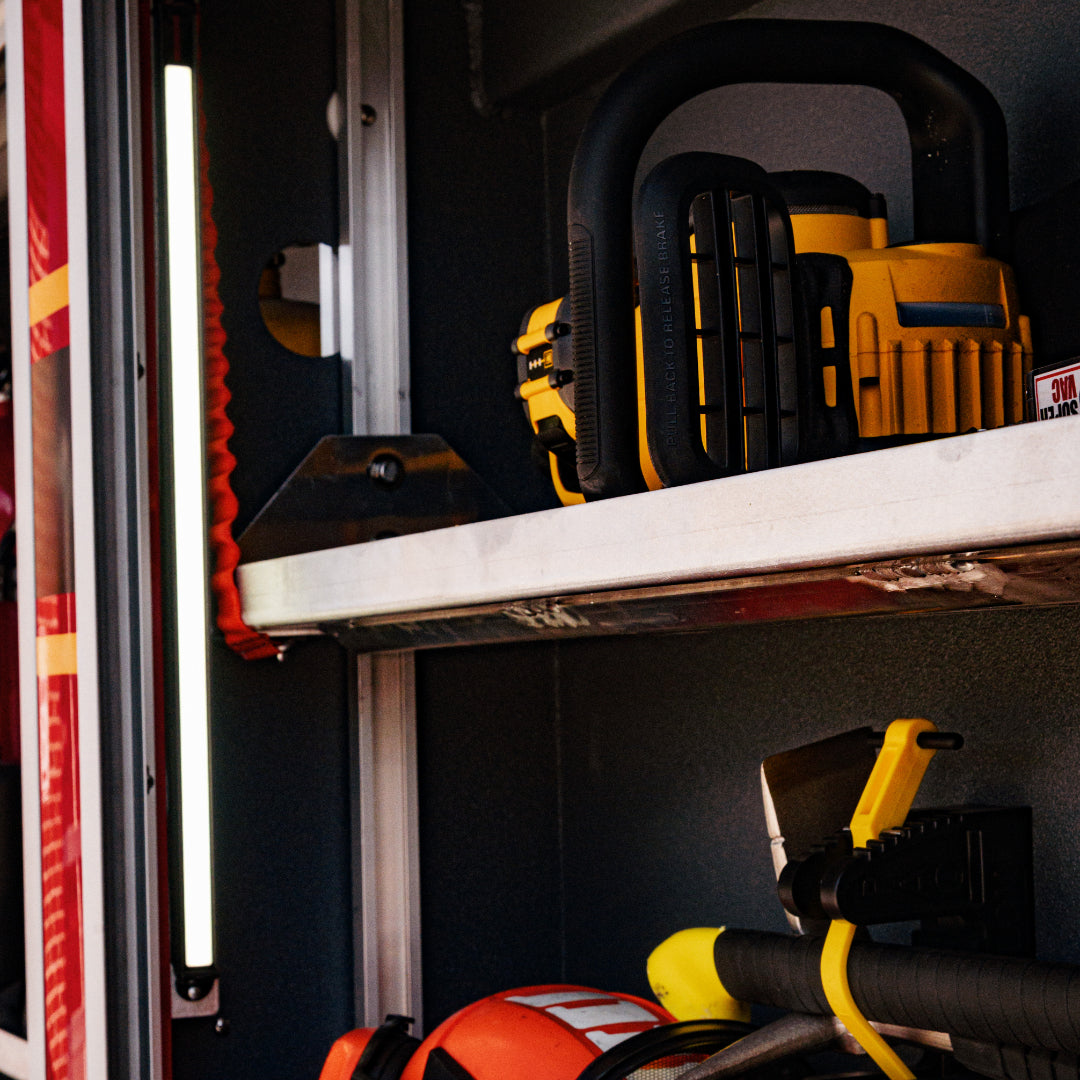

• Use: Compartment, step, handrail, under-shelf illumination for crew safety
• Vibration: 8.6 GRMS (official: 9–32V DC input, 8.6 GRMS, IP54)
• Weight: 0.17 / 0.29 / 0.53 / 0.75 / 1.0 lbs (7.5" / 12" / 24" / 36" / 48")
• Official note: colored LED versions are Special Build items with an MOQ 20 or a 10% short run surcharge. Special-build LED options: RW, R, B, G.

Official HD rows (compartment-lights-1 PDP)

• 7.5" (FT-CU-HD7.5-*): 117 lm · 0.14A @12.8V · 1.8W · 7.4" × 1" × 0.6"
• 12" (FT-CU-HD12-*): 273 lm · 0.33A @12.8V · 4.2W · 11.9" × 1" × 0.6"
• 24" (FT-CU-HD24-*): 624 lm · 0.75A @12.8V · 9.6W · 24.9" × 1" × 0.6"
• 36" (FT-CU-HD36-*): 936 lm · 1.12A @12.8V · 14.4W · 36" × 1" × 0.6"
• 48" (FT-CU-HD48-*): 1,248 lm · 1.50A @12.8V · 19.2W · 48" × 1" × 0.6"

Instructions / Downloads: Additional Instruction manuals, and wiring guides for products may be available on the official FireTech / HiViz website. Open the matching product page and use the Downloads section for the latest PDFs or reach out to a team member!

Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy.
