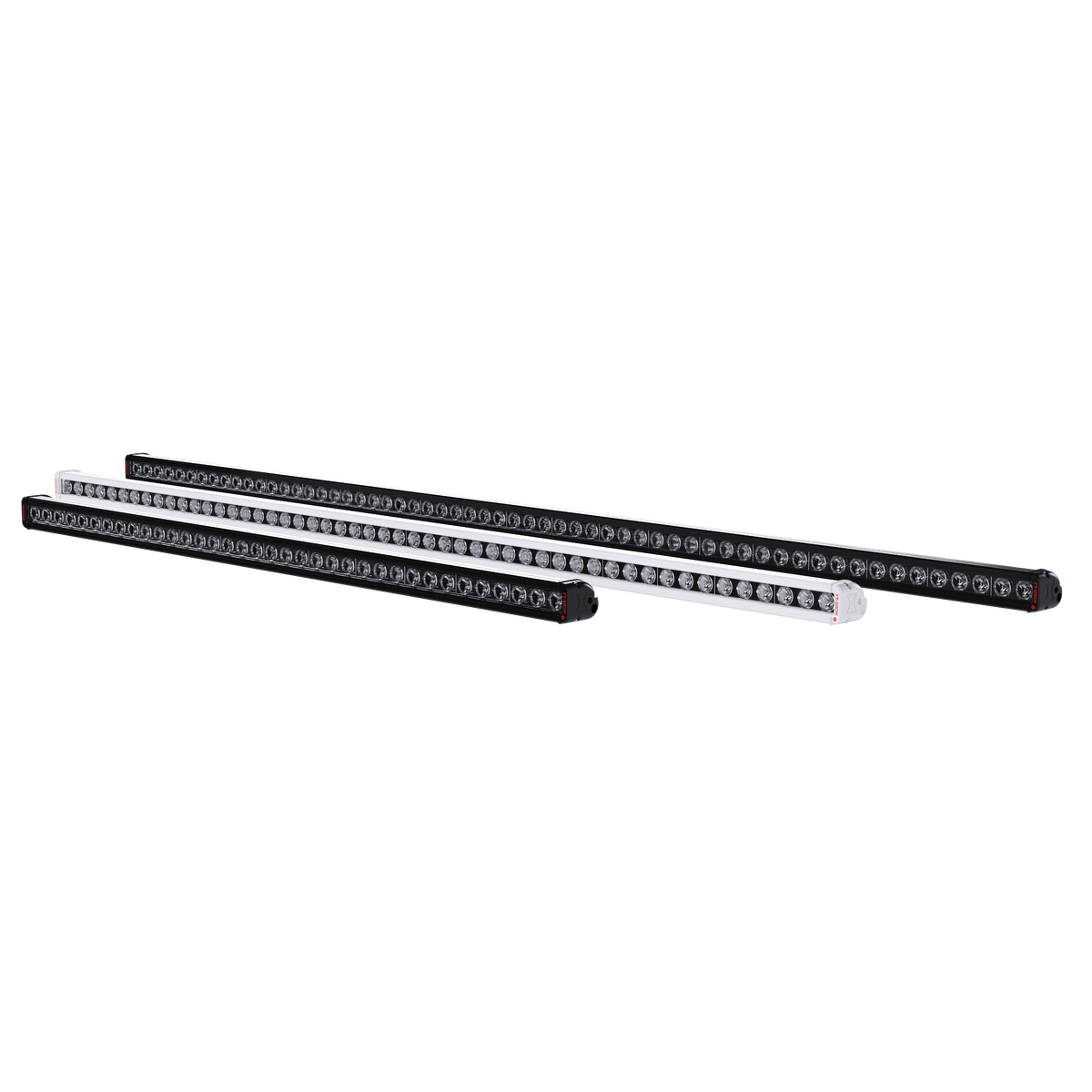

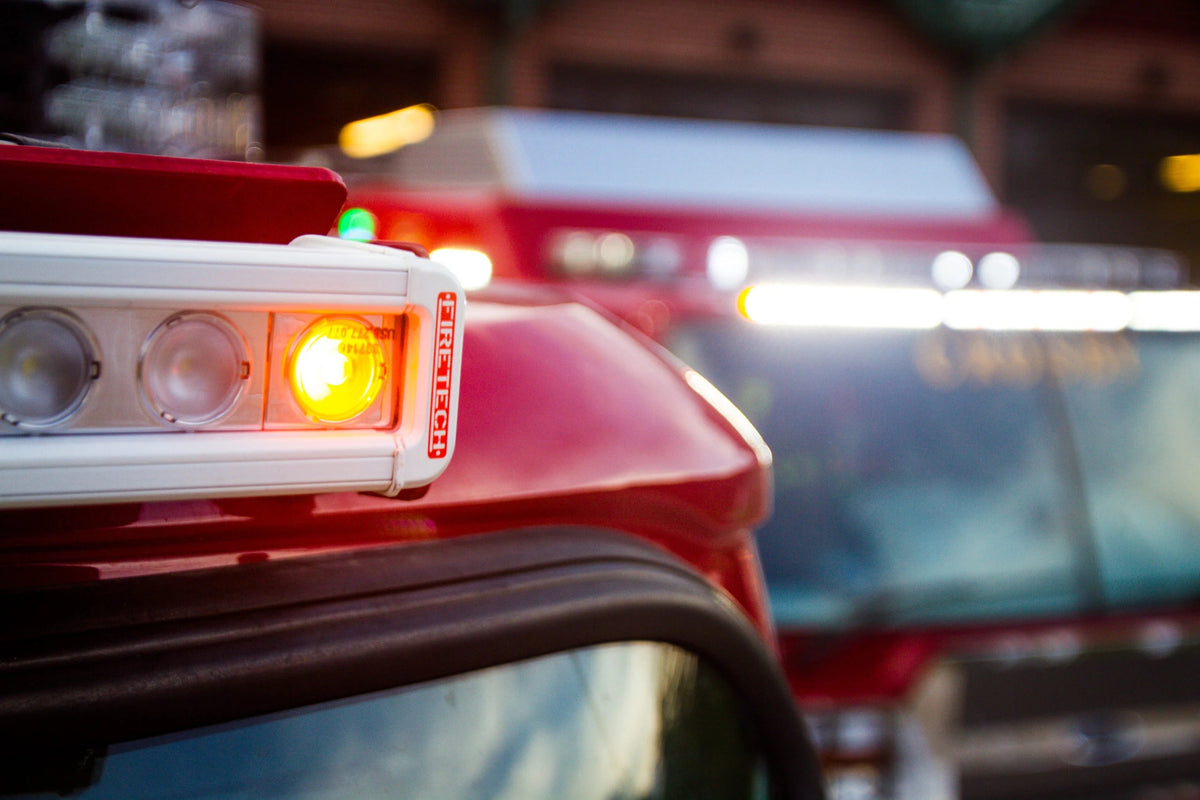

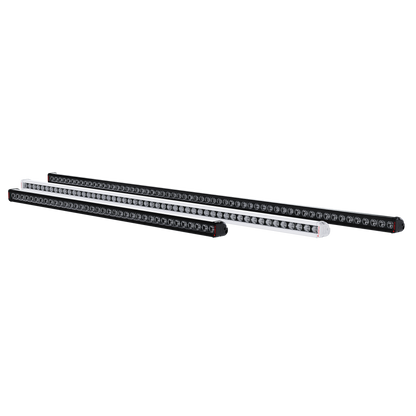

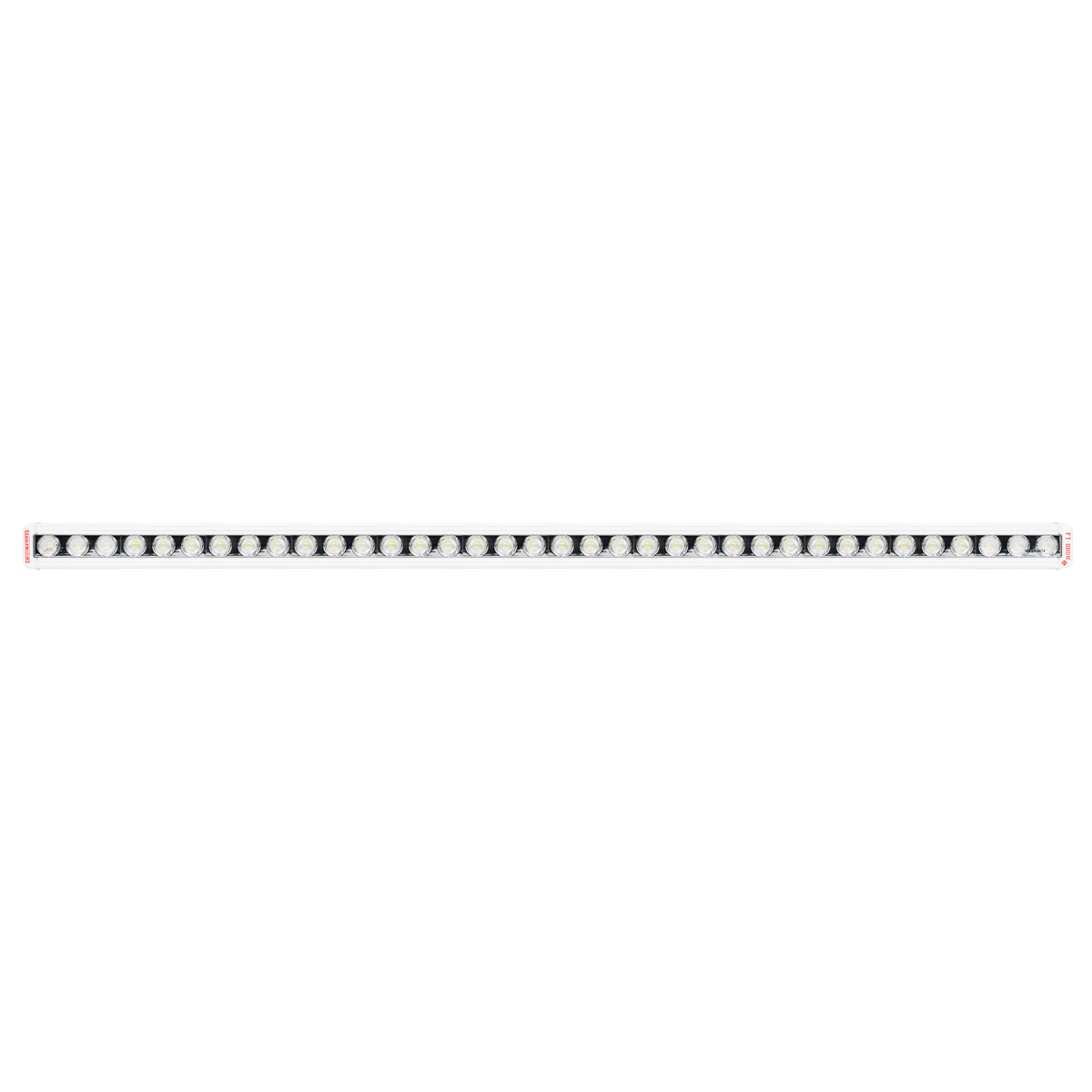

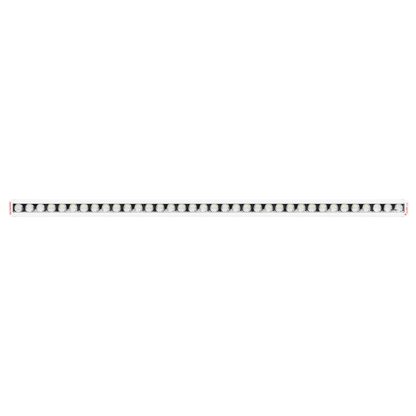

FireTech Brow Light

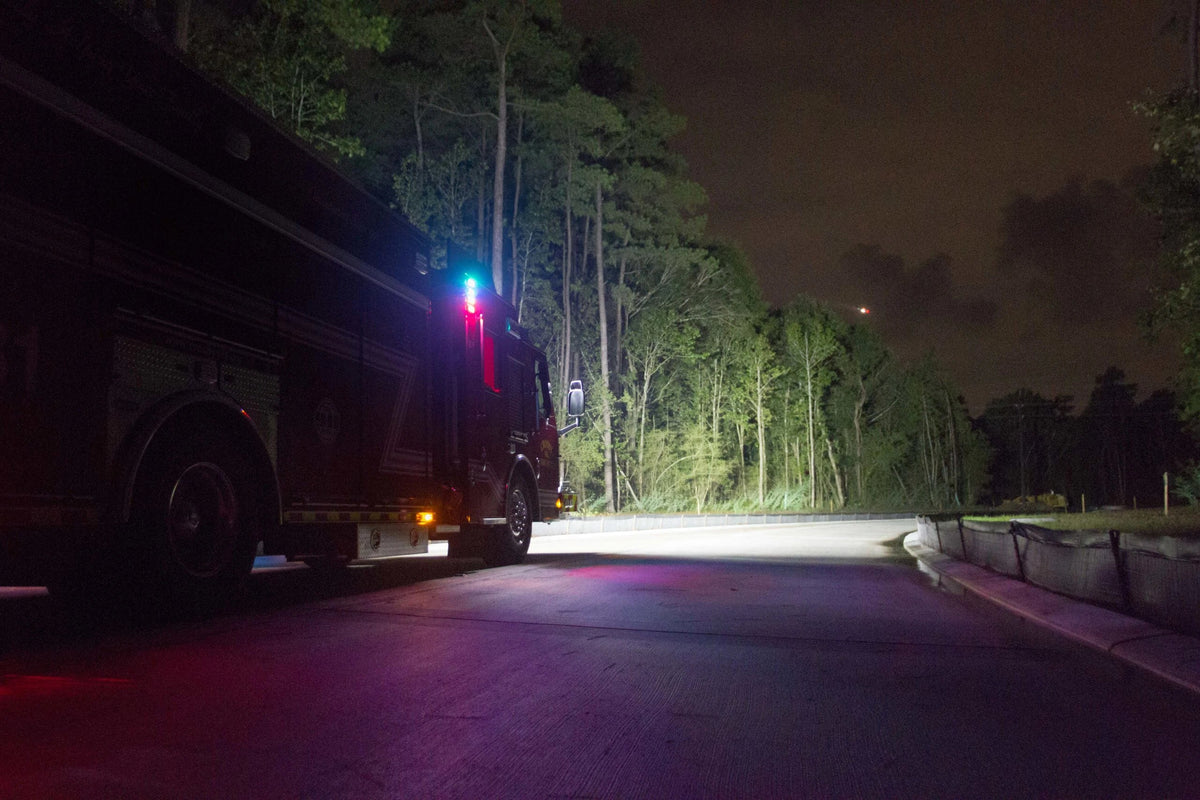

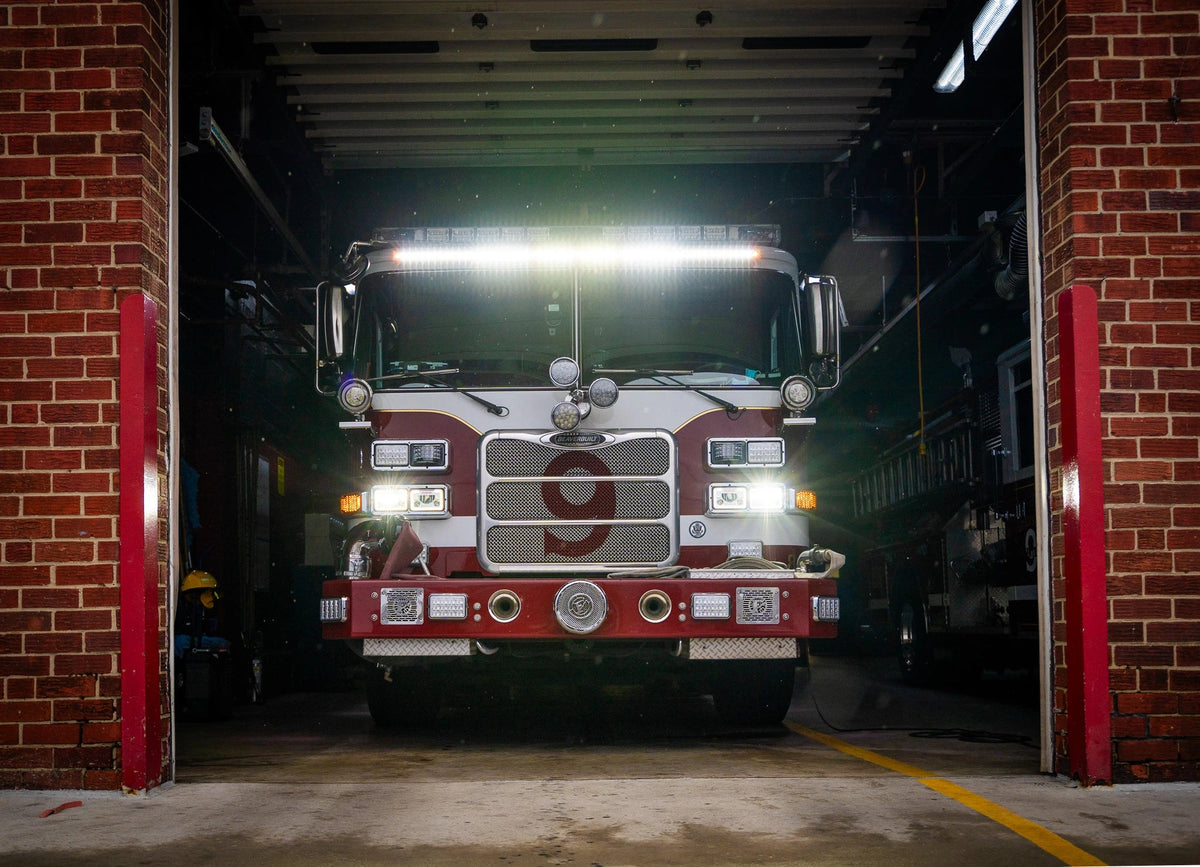

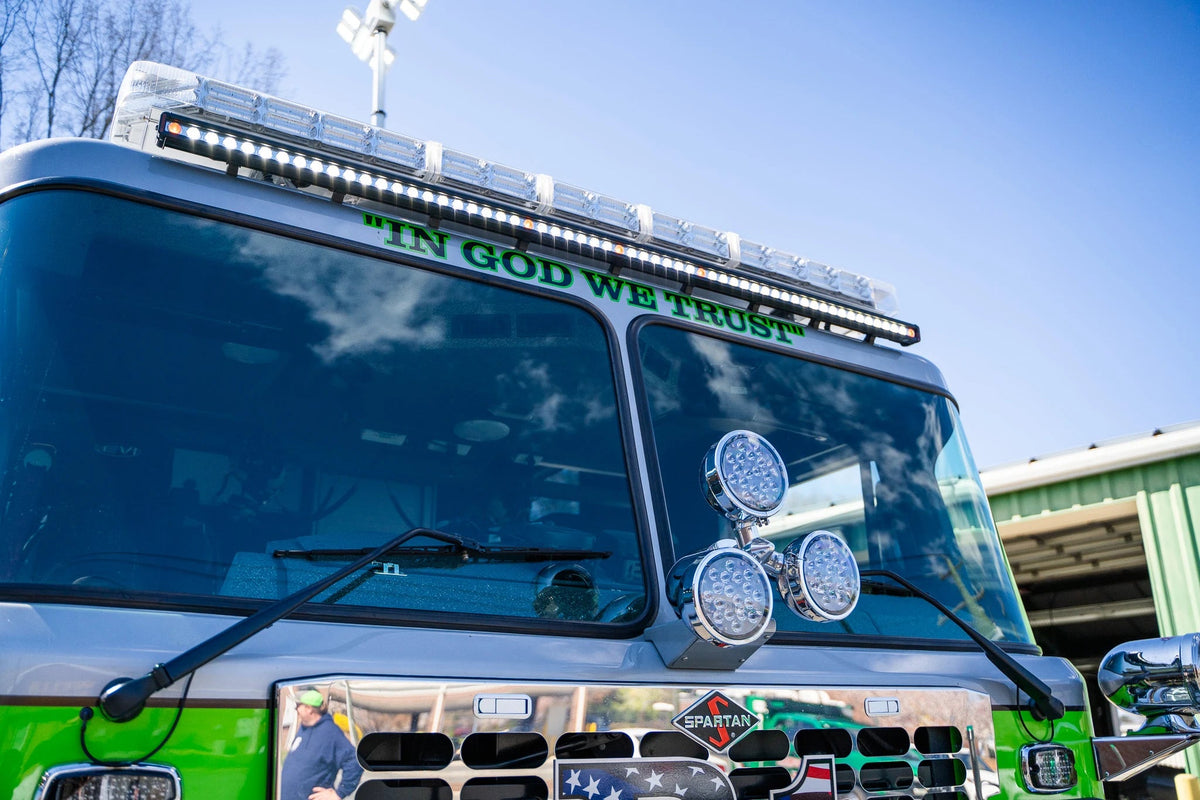

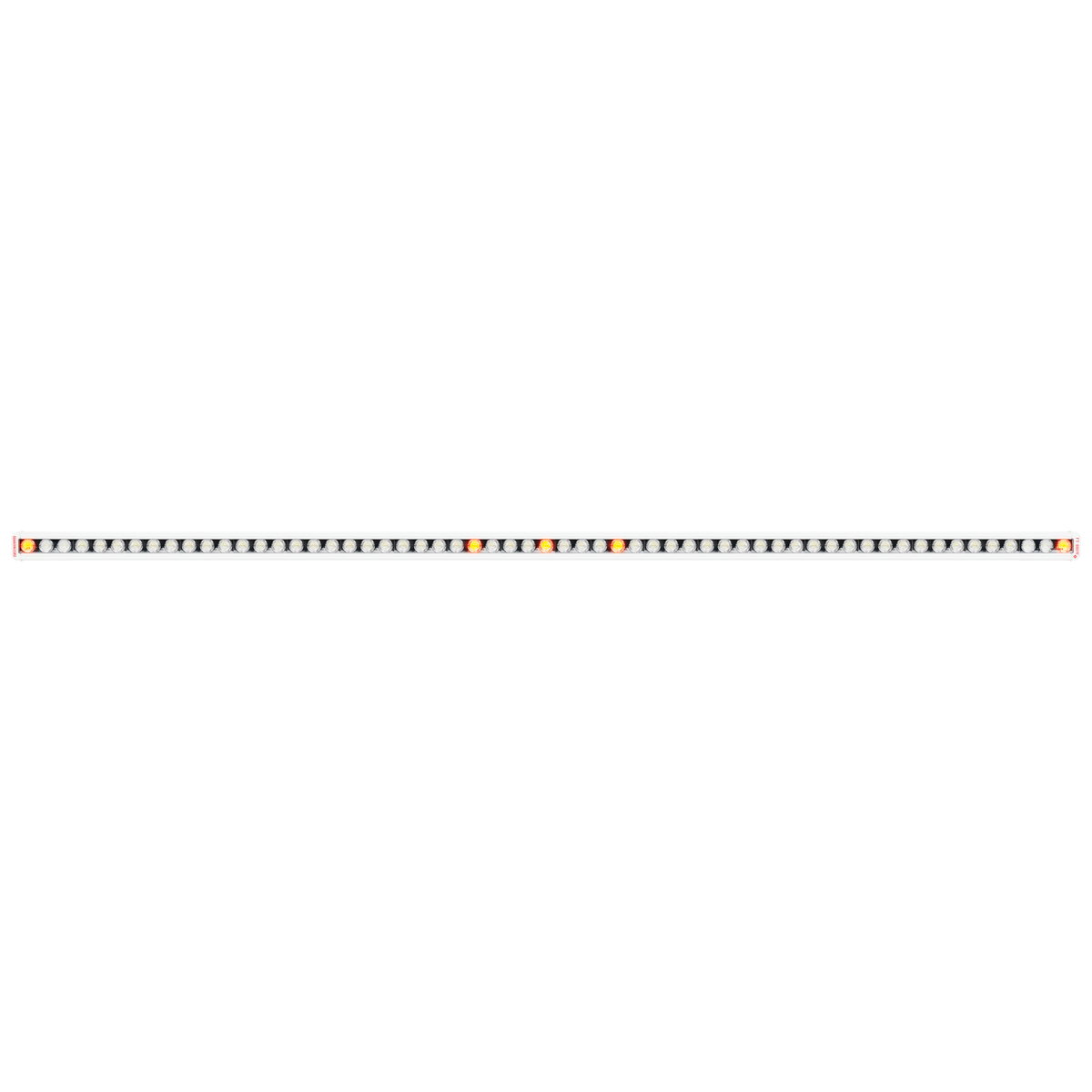

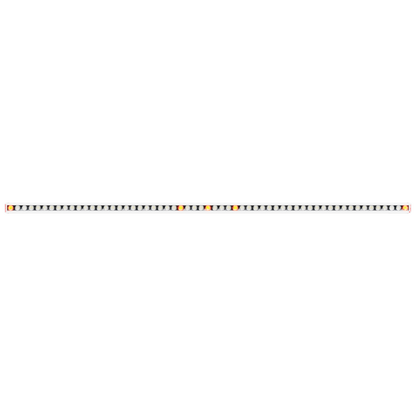

FireTech Brow Light — purpose-built for the leading edge of the apparatus cab. Combines long-distance spot with multiple flood beams for range and coverage. Optional integrated DOT marker lights and split circuits.

• Standard FT-B family: 9–32V DC | IP67/69K | 21 GRMS. Official 72" 3-piece kits (FT-B-72-3PKIT / FT-B-72-ML-3PKIT): IP68/69K | 9–32V DC | 21 GRMS.
• 46": 19,008 lm | 14.1A @12.8V | 180W | 3 circuits
• 46" + 3 markers: 19,008 lm | 14.8A | 189W | 4 circuits
• 65": 26,928 lm | 19.9A | 255W
• 72": 30,096 lm | 22.3A | 285W

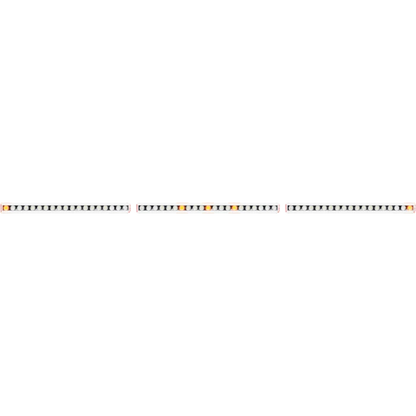

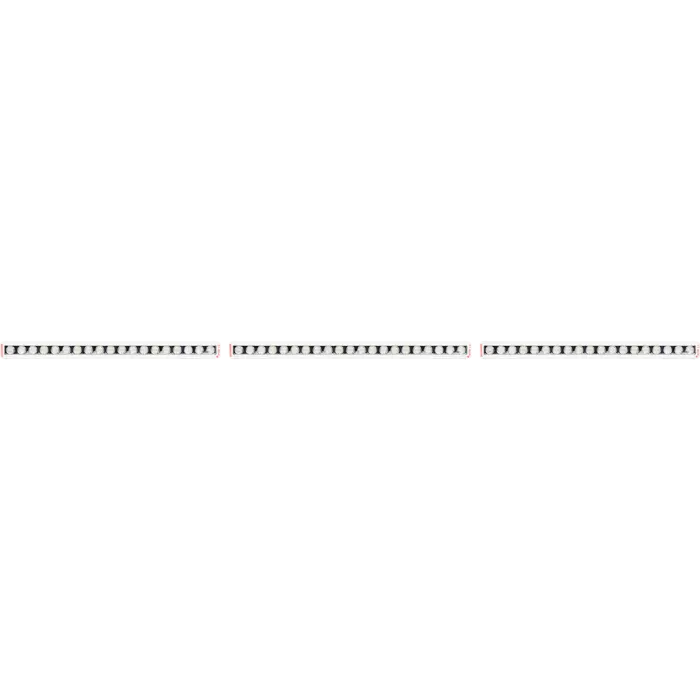

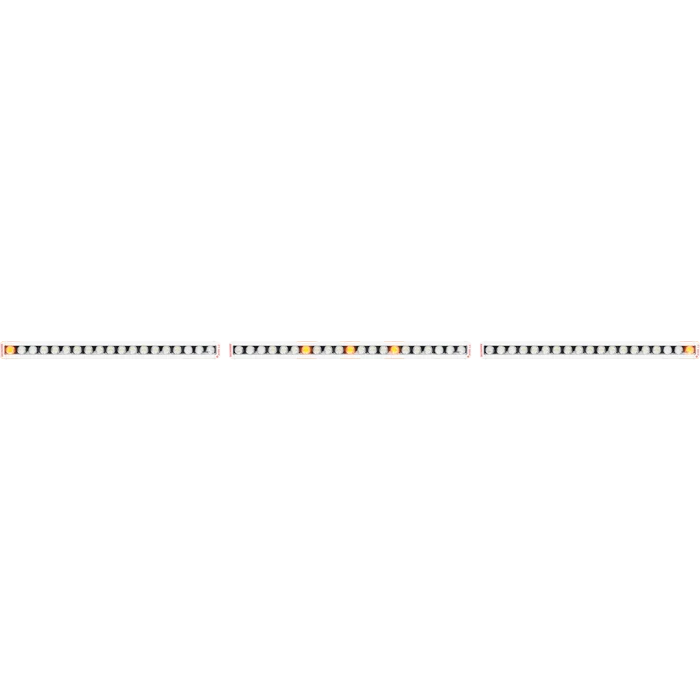

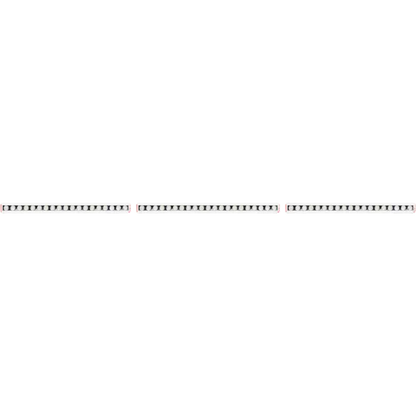

• 72" 3-piece kit: 29,697 lm | 23.89A | 285W
• 72" + markers: 28,512 lm | 22.3A | 285W
• 72" 3-piece + markers: 28,512 lm | 23.8A | 285W
• 72" Extreme (FT-B-X-72): length 72" only. Not on the official FireTech brow table (that table’s 72" 30,096 lm / 22.3A / 285W is FT-B-72, not Extreme). Call to confirm electrical load before spec.
• 80": 31,680 lm | 24.6A | 315W

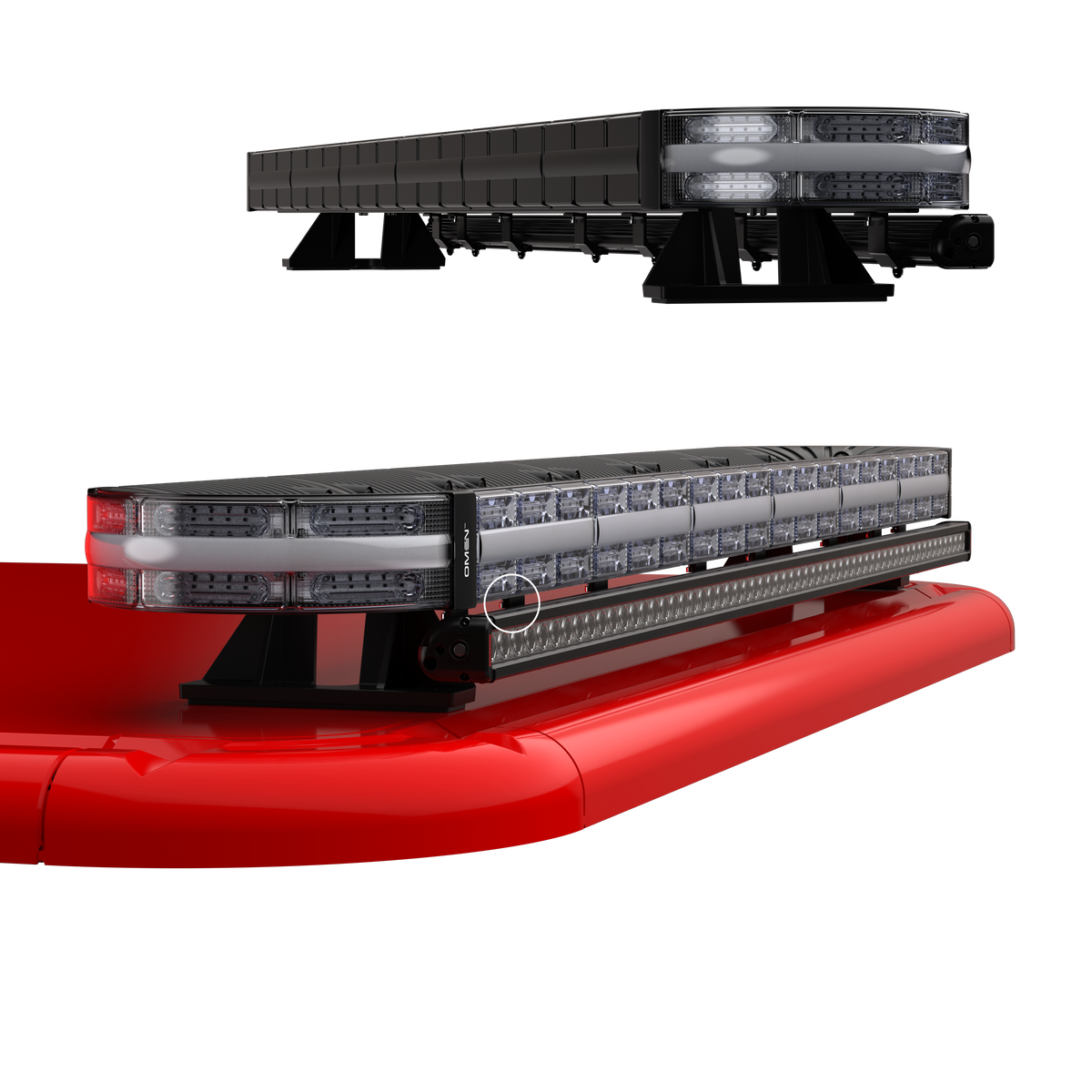

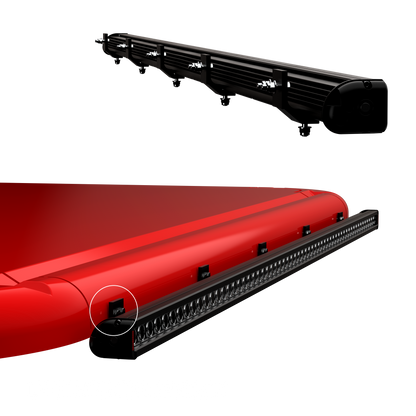

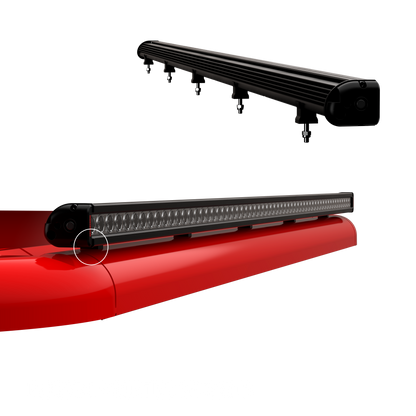

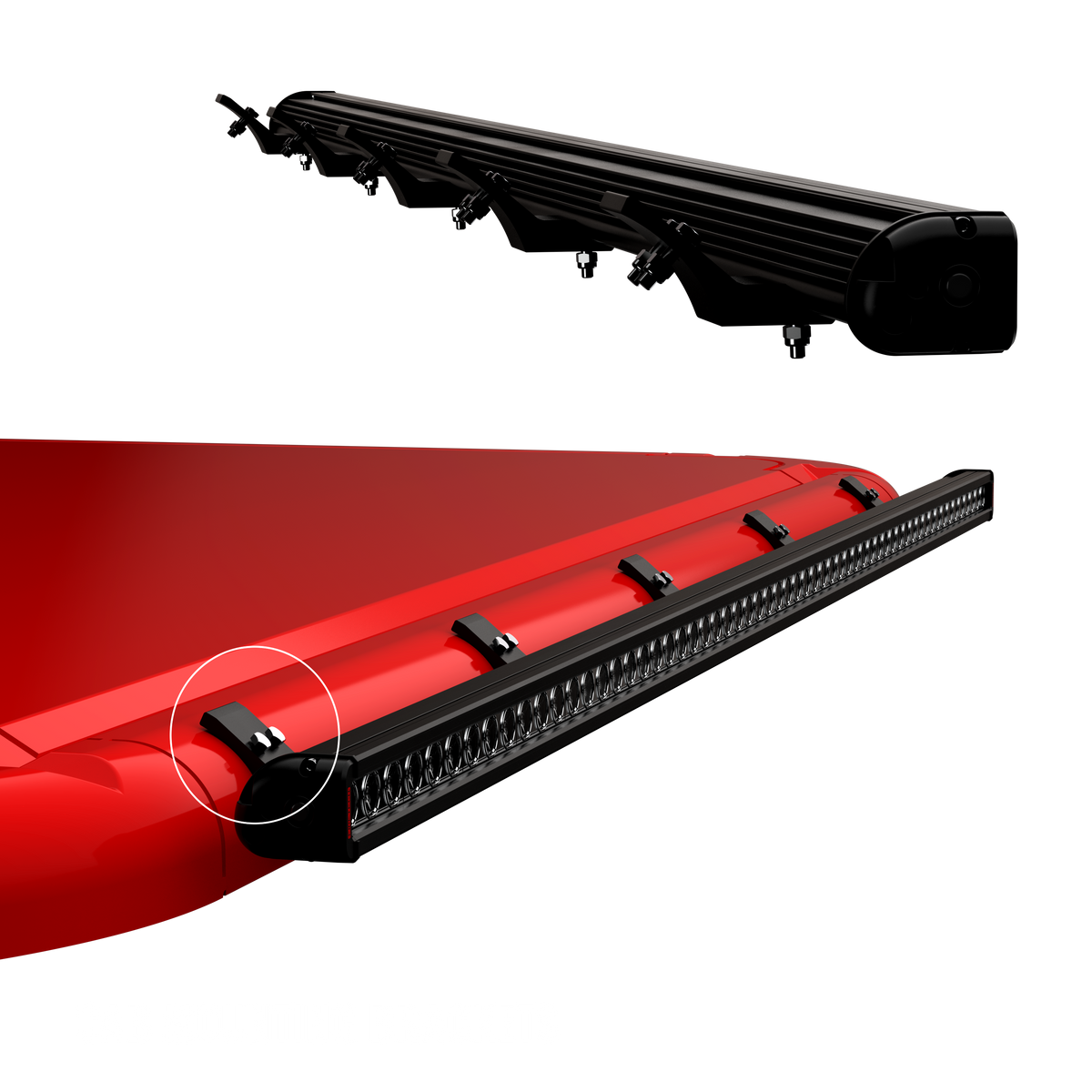

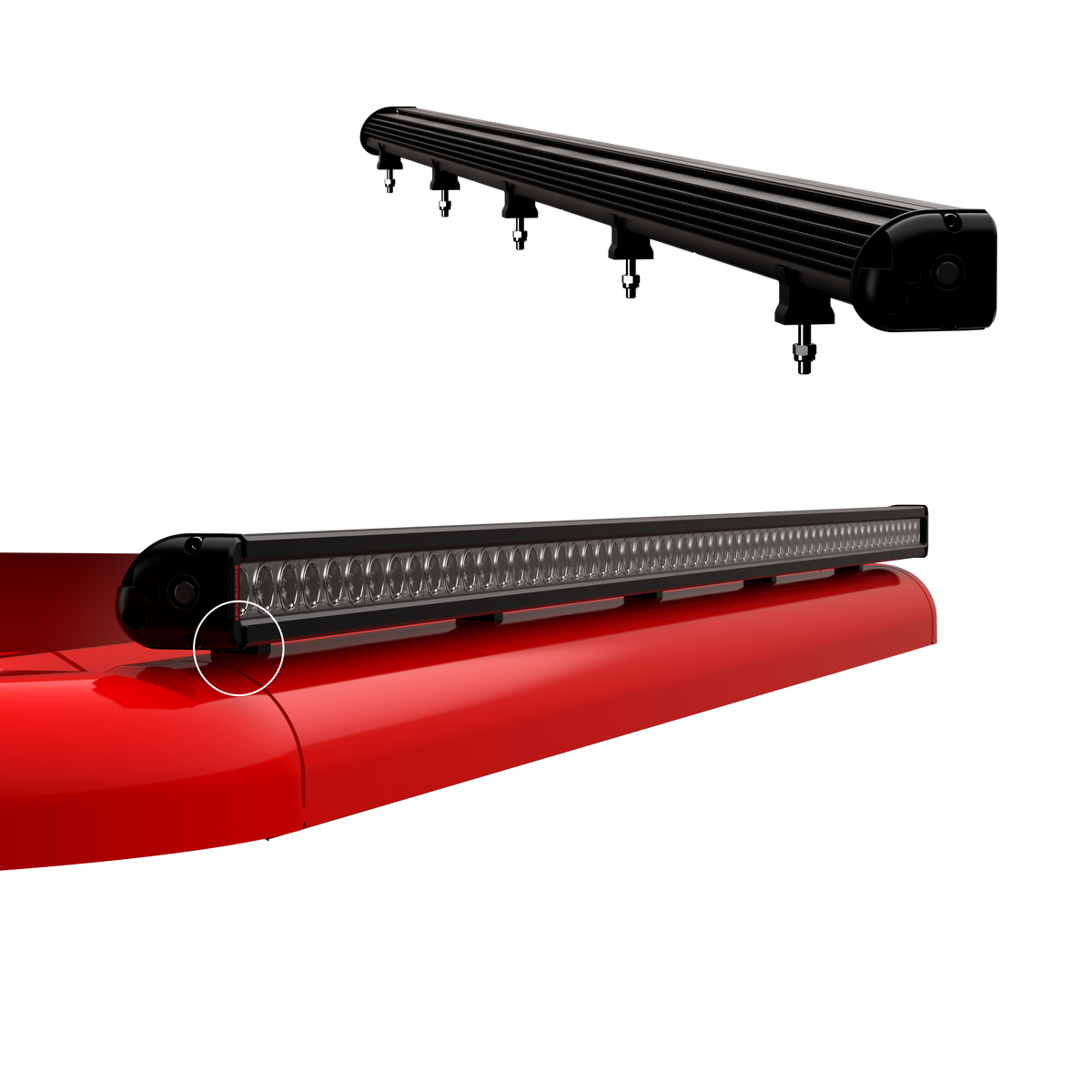

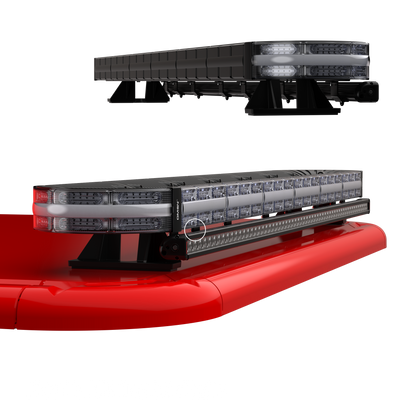

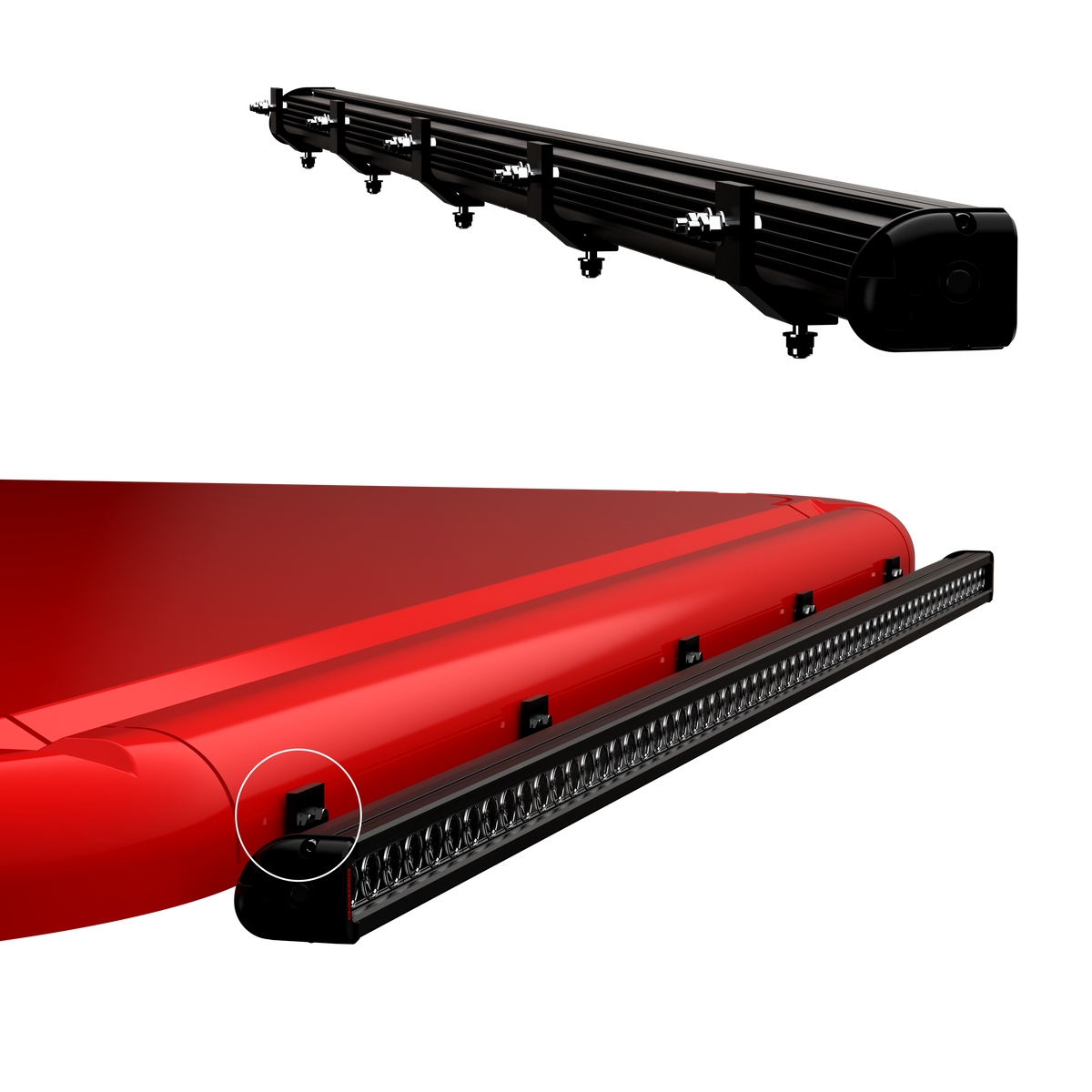

• Mounting: Cab bracket (3" radius), pedestal (flat), L-foot (vertical adjustable), J-foot (to OMEN bar). See Mounting Solutions.
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Instructions / Downloads:

• Brow Light Instruction Manual (PDF)
• Brow Light Switch Wiring Guide (PDF)
• FireTech Brow Light Master Sales Sheet (PDF)
• FT-B-46 Spec Sheet (PDF)
• FT-B-46-ML3 Spec Sheet (PDF)
• FT-B-65 Spec Sheet (PDF)
• FT-B-72 Spec Sheet (PDF)
• FT-B-72-ML Spec Sheet (PDF)
