FireTech BG2 Control Panel

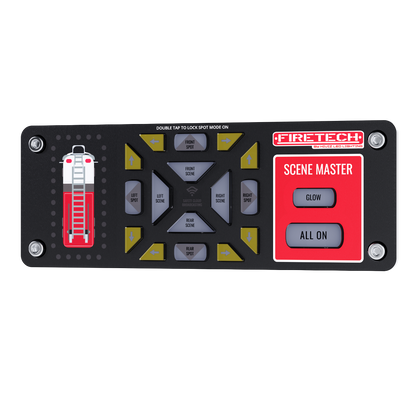

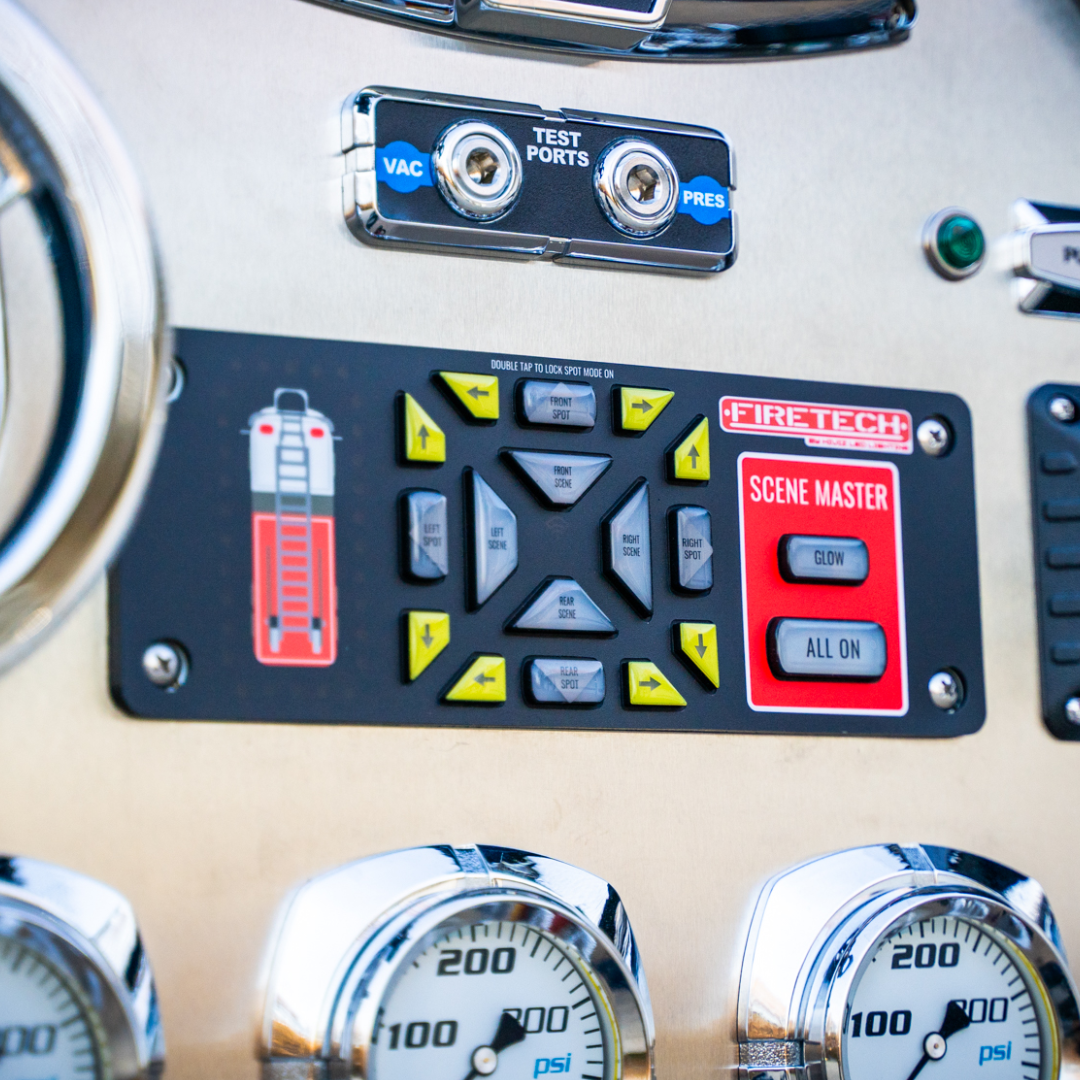

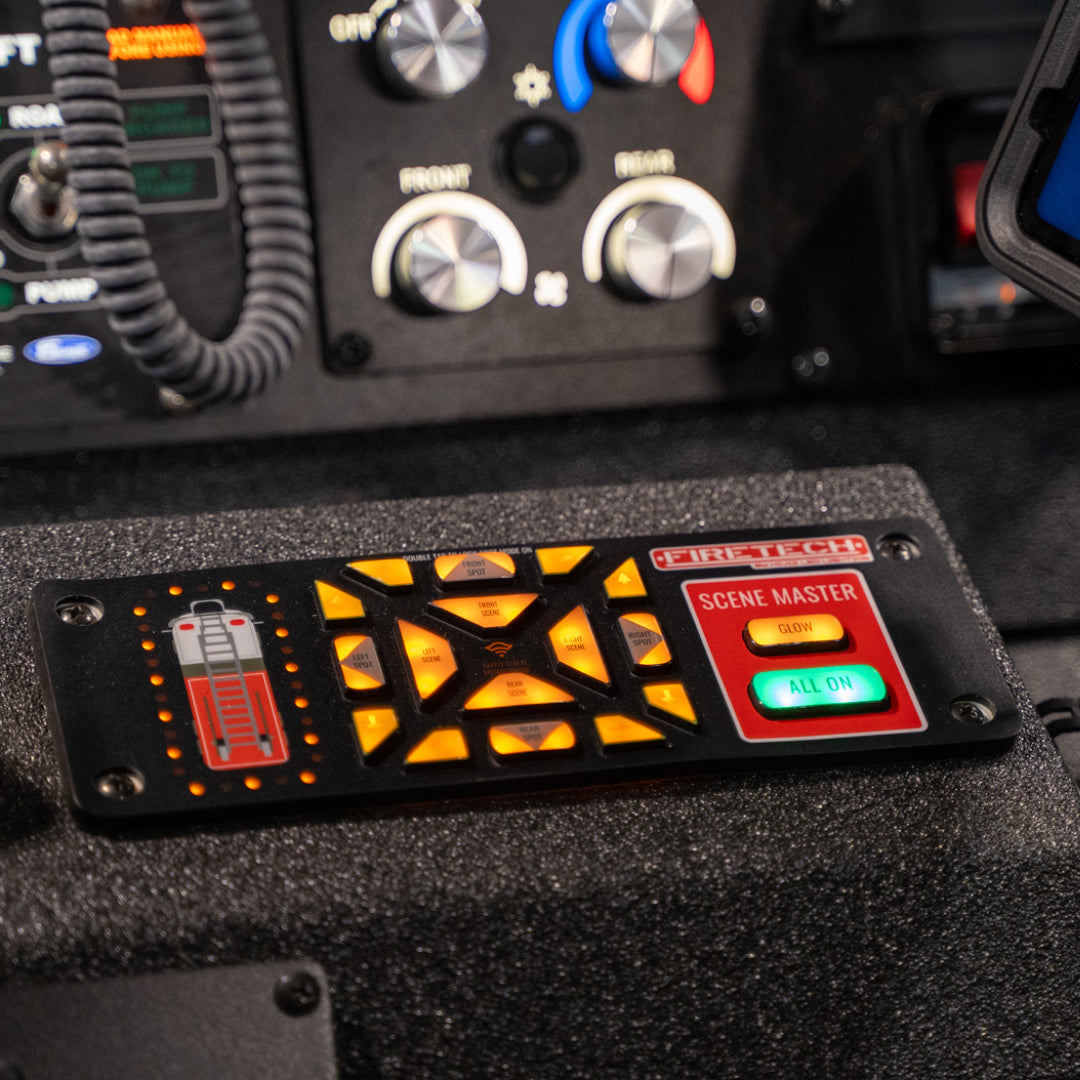

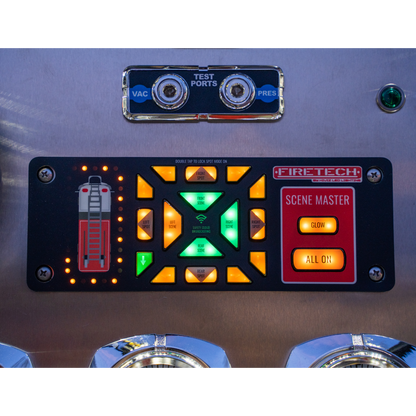

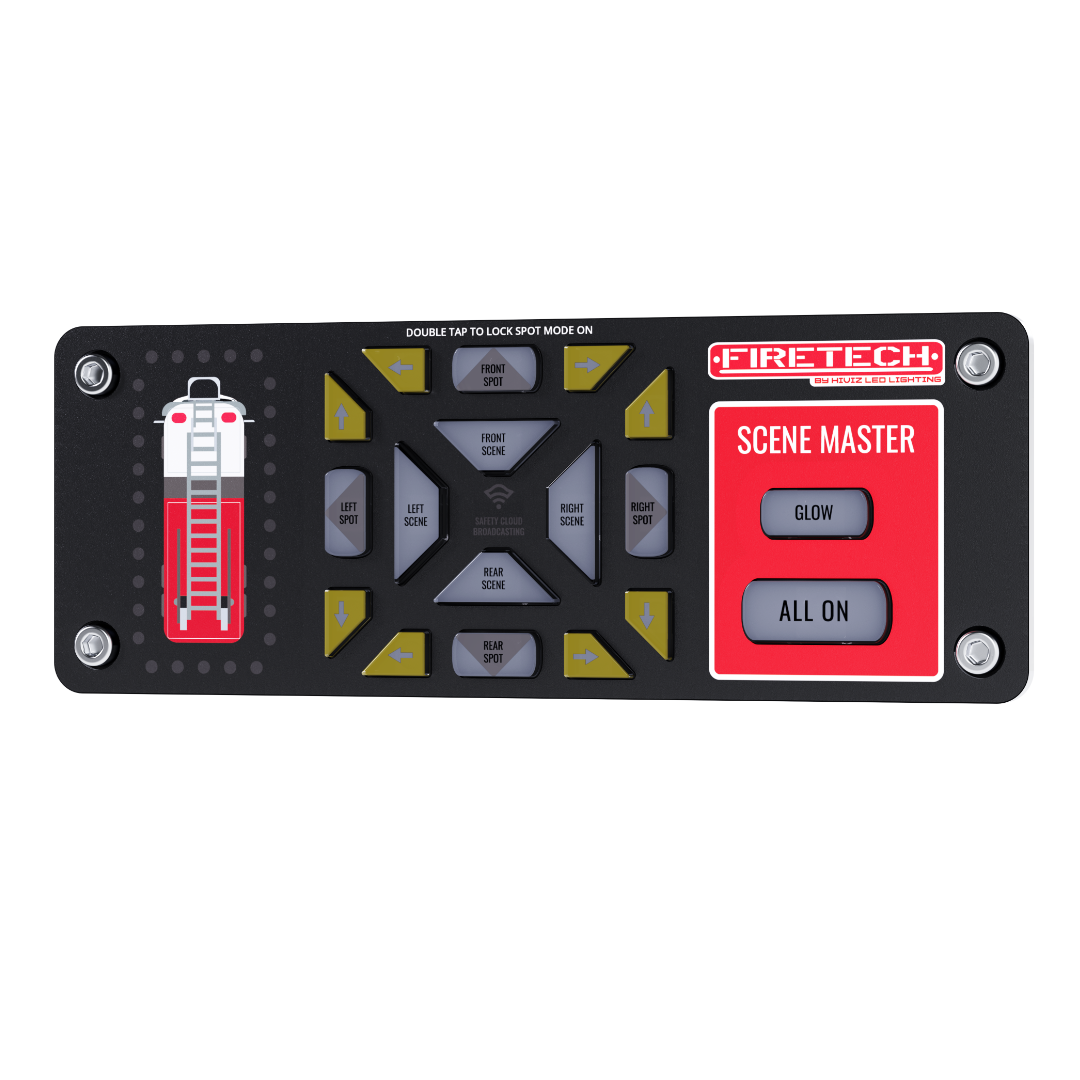

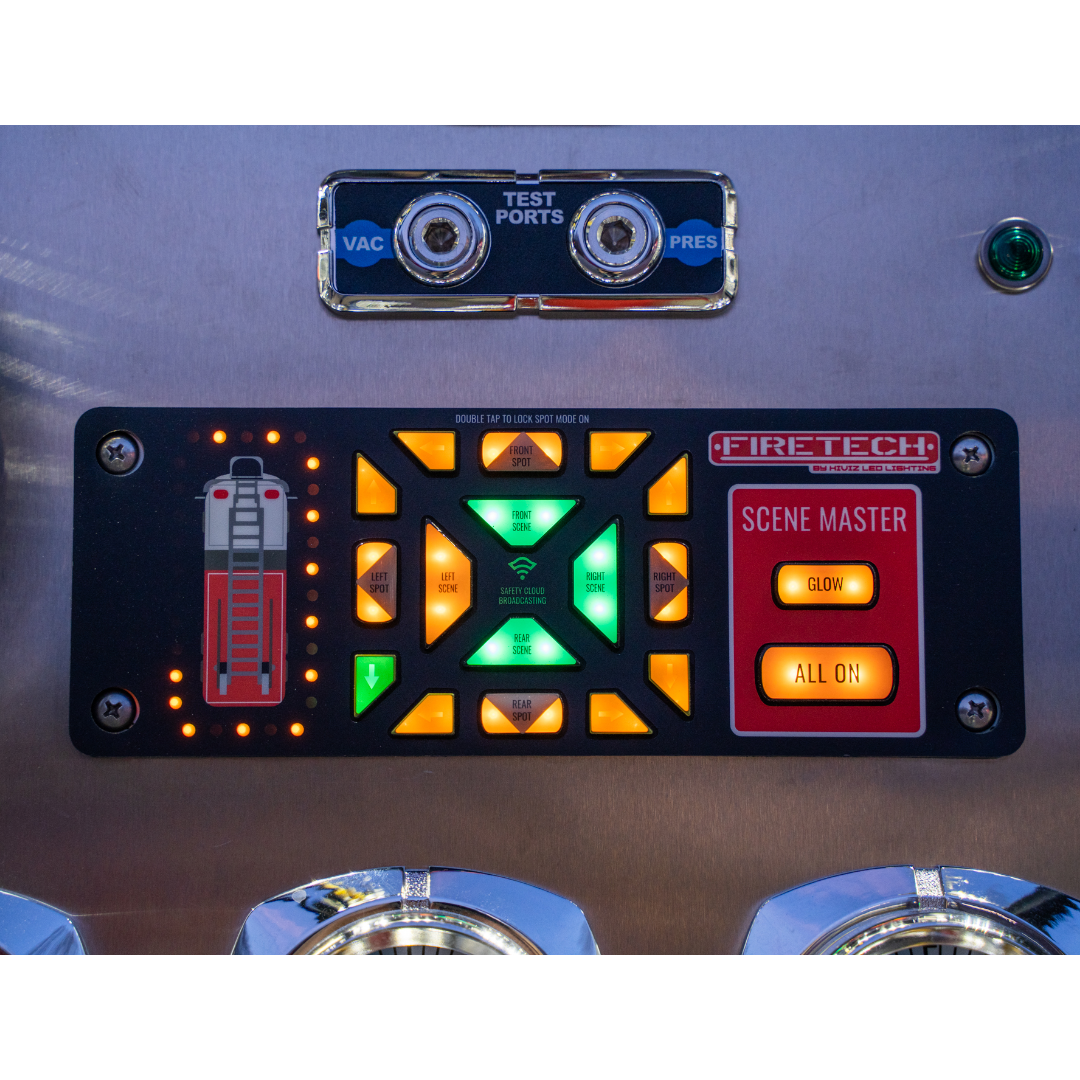

FireTech BG2 User Interface Panel — cab-mounted control for BG2 Smart Brow functions. Operator interface for zone and mode selection.

Two official SKUs belong with this panel. The User Interface Panel is the panel itself (FT-BG2S-UIP-001). Black Housing is the official “BG2S User Interface Panel in Black Housing” (FT-BG2S-UIP-001-MOUNT). That housing SKU is the panel in the black housing — not a cheaper mount bundle, and not “UIP plus mounting hardware.”

Shoppers can buy the panel only ($1,200), the black housing only ($299), or both together ($1,499). The both option is FAI fulfillment of the two official SKUs — it is not a FireTech kit part number. An order of User Interface Panel + Black Housing ships FT-BG2S-UIP-001 and FT-BG2S-UIP-001-MOUNT.

• Panel housing: 1.04" × 8" × 2.96"

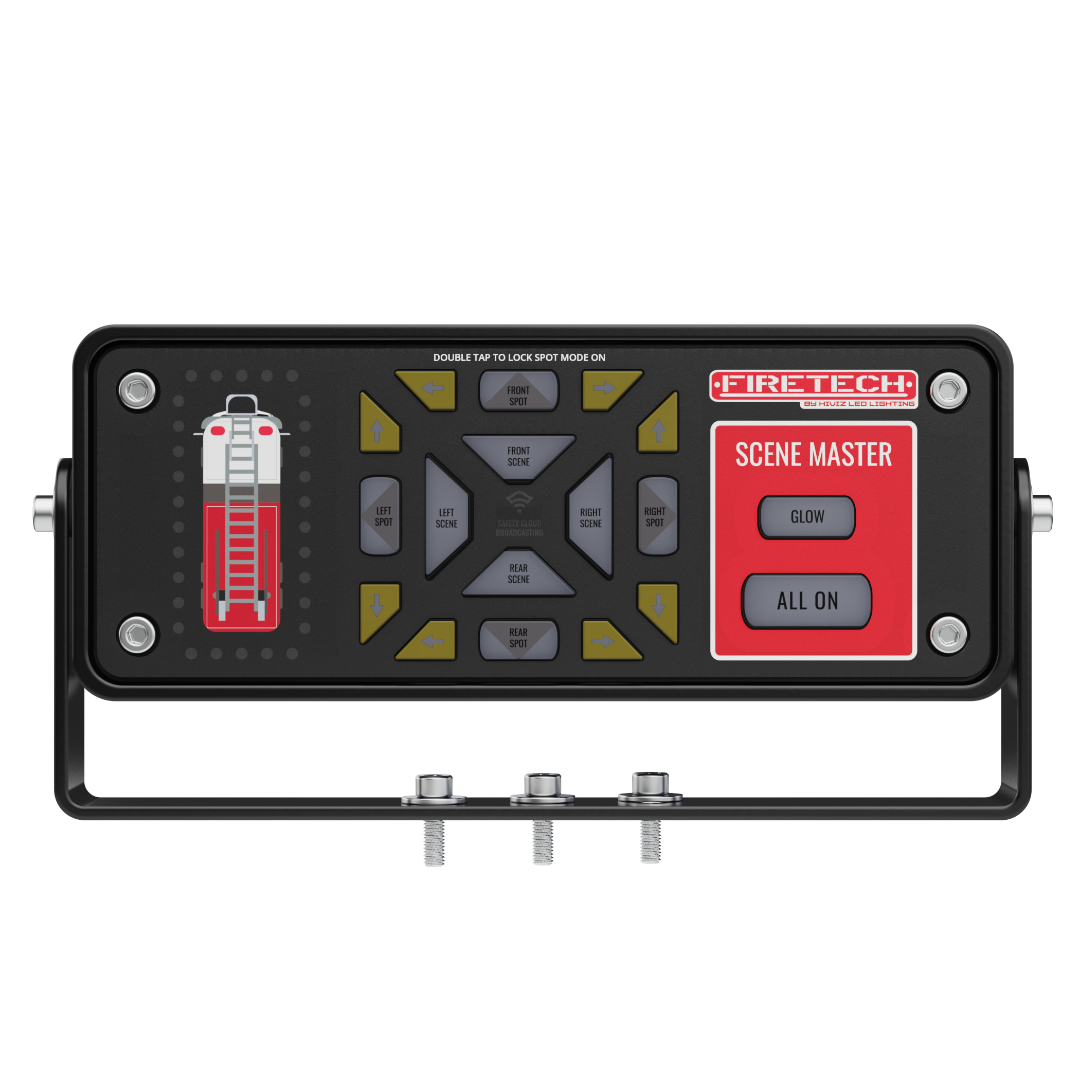

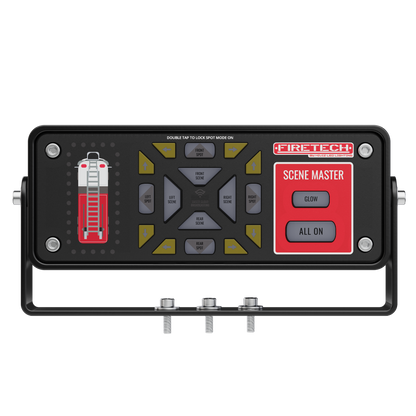

• Black Housing SKU: 2.47" × 9.66" × 4.38" — official name “BG2S User Interface Panel in Black Housing”
• Panel voltage (UIP sales sheet): 11–32V DC
• Power: 0.1A / 1.3W
• Functions (official UIP): automatic low-voltage detection so BG2 fixtures stay within the apparatus electrical capacity; single- or multi-panel control; HAAS Alert Safety Cloud integration; all-call “glow” and “go” on the illumination circuits; independent traffic-director and scene control per side; wrap/extend assigned from the configured multi-fixture layout

Instructions / Downloads:

• BG2 User Interface Panel Sales Sheet (PDF)
• BG2 UIP Configuration Worksheet (PDF)
• BG2 SMART Instruction Manual (PDF)

Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy
