FireTech 9 LED Extreme Work & Area Light

FireTech WL-X 9 LED Work & Area Light — 63W fixture that meets minimum NFPA 1901 illumination for a single 12V LED aerial tip light (2016 standard). Active Thermal Management LED driver. Handle + swivel SKUs add the official handle mount.

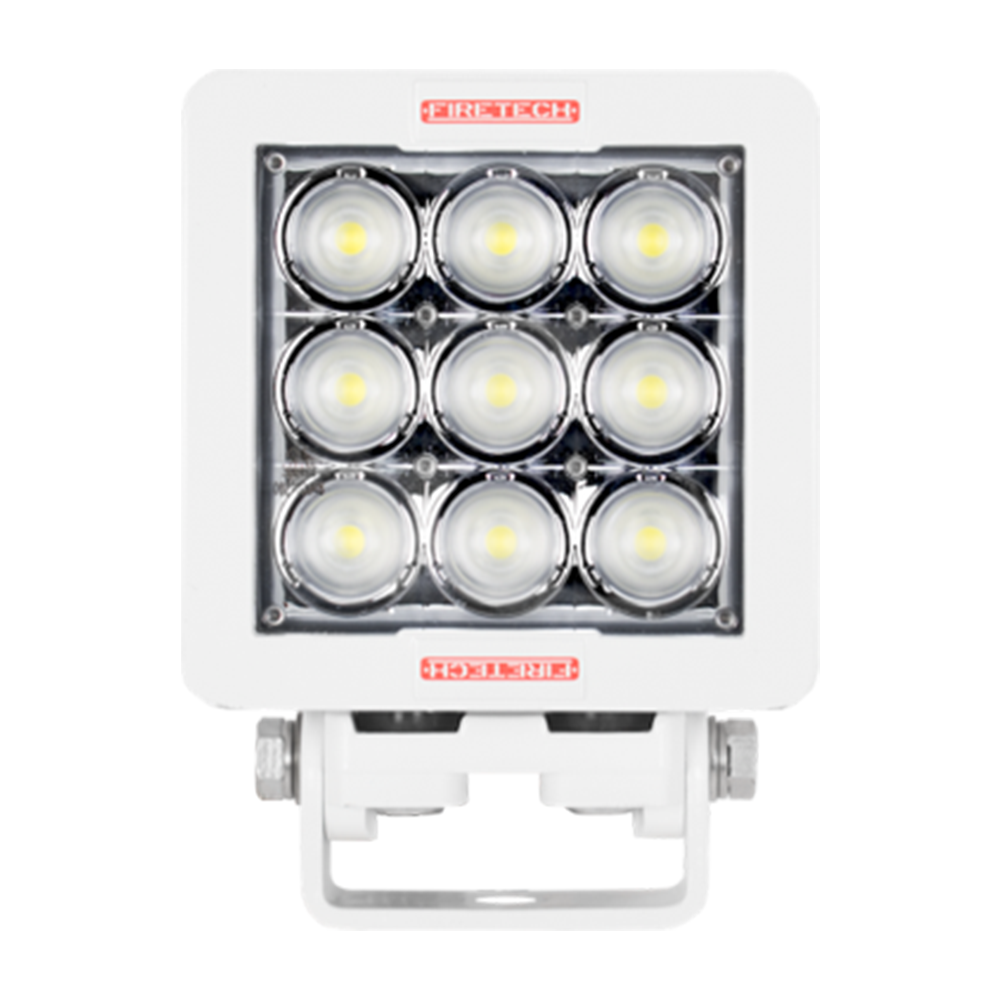

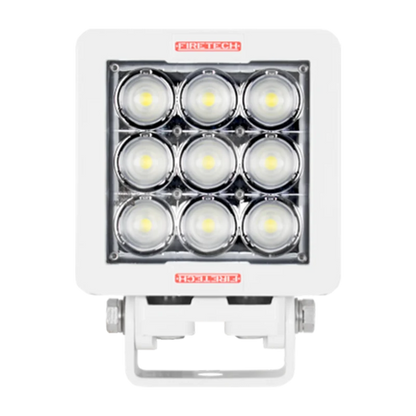

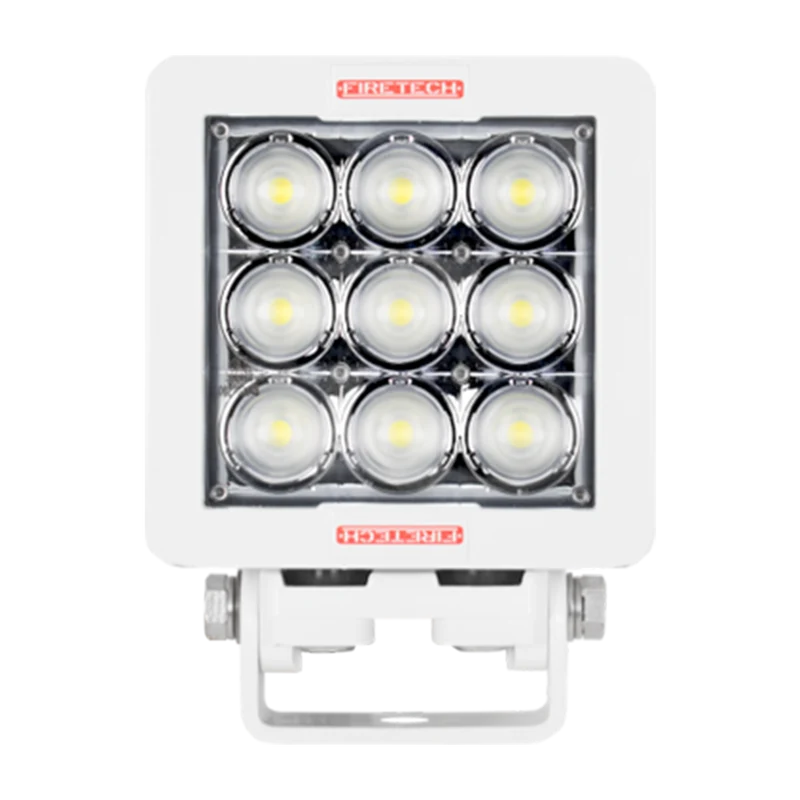

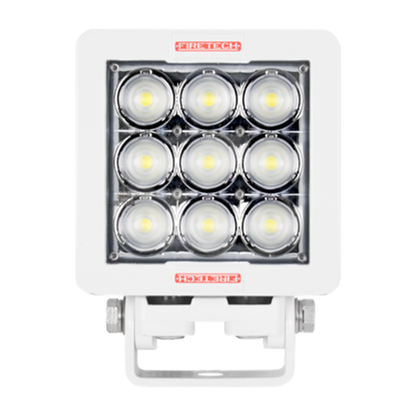

• Compact dimensions: 5.71" × 3.33" × 5.12" (FT-WL-X-9)

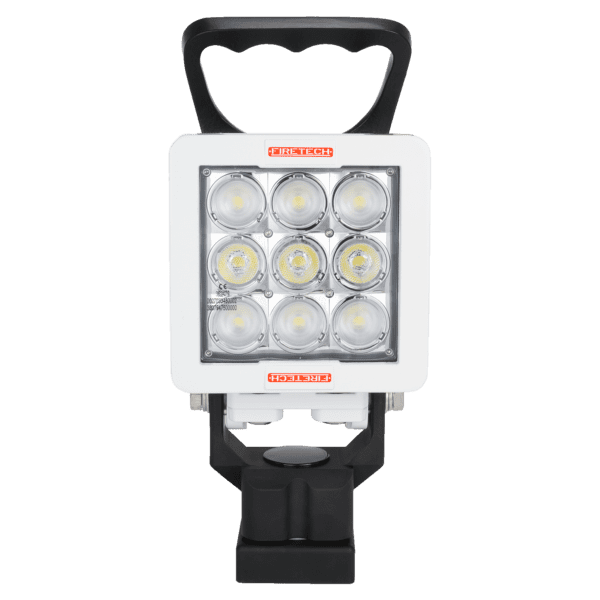

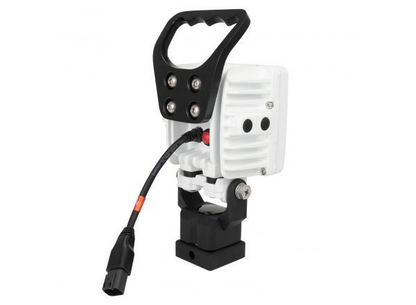

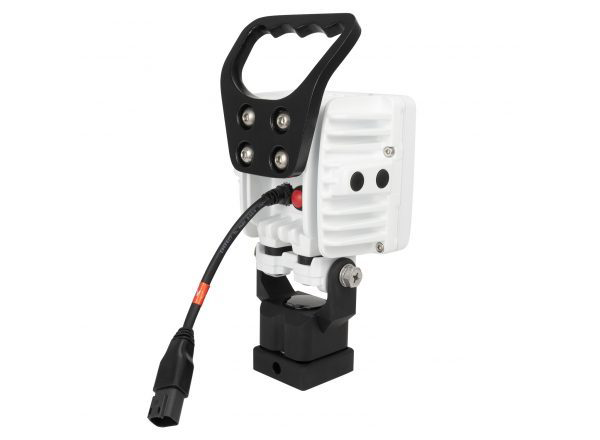

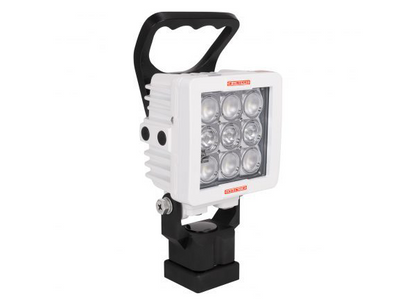

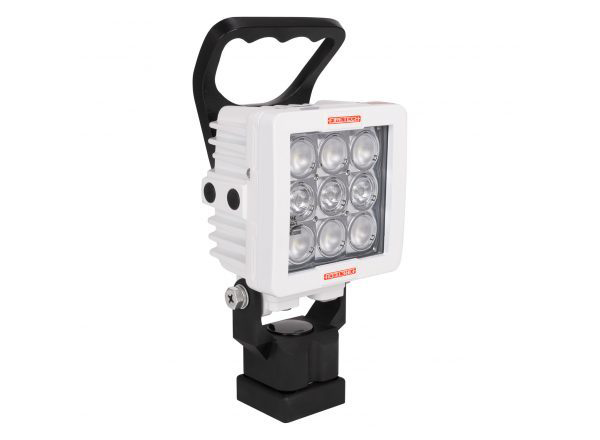

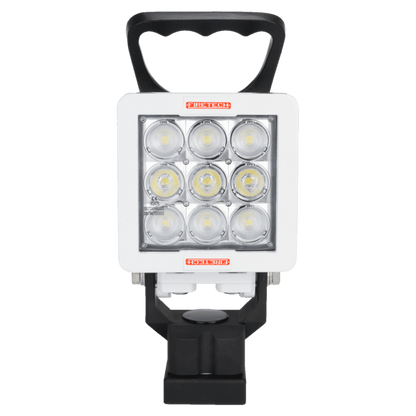

• Handle + swivel dimensions: 4.45" × 3.71" × 10.13" (FT-WL-X-9-*-SH2)
• Output: 7,200 raw lumens | Max 5.26A @12.8V | Peak 63W
• Power: 9–32V DC | IP68/69K | 21 GRMS
• Optics: Combination or Flood | Housing Black or White

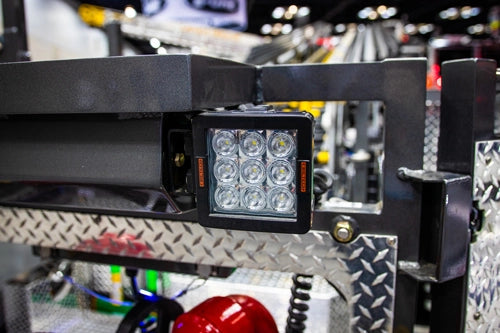

• Mount: Compact: supplied trunnion or single bolt bracket. Handle SKUs: official handle + swivel mount.

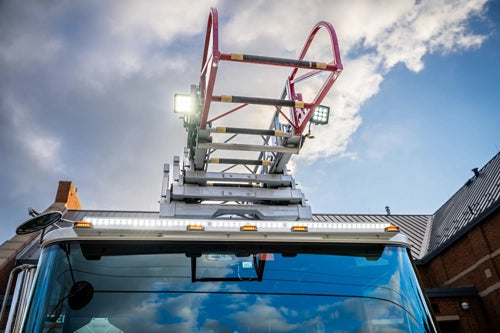

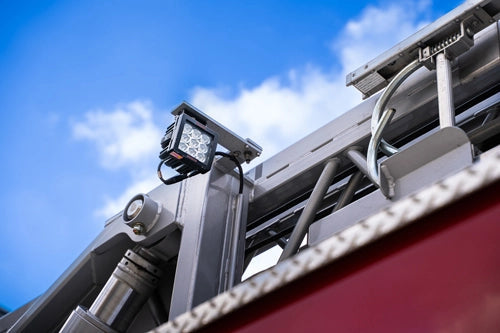

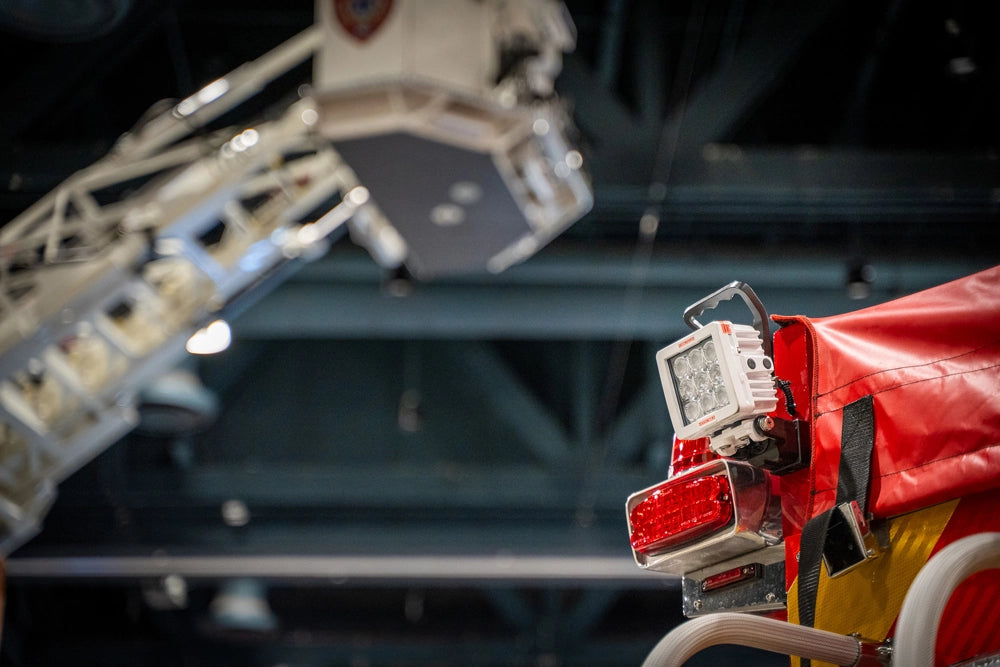

• NFPA note: One fixture compliant at aerial tip
• Warranty: limited Lifetime when installed on fire apparatus or ambulances owned and operated by registered public safety agencies or hospital systems. Other applications: 5-year limited. Advance exchange per official policy. FireTech Warranty Policy

Instructions / Downloads:

• WL-X Work Light Instruction Manual (PDF)
